Mercury 90 - Manifold Removal; Shock Rod Removal

5C-32 - MID-SECTION 90-830234R3 DECEMBER 1997

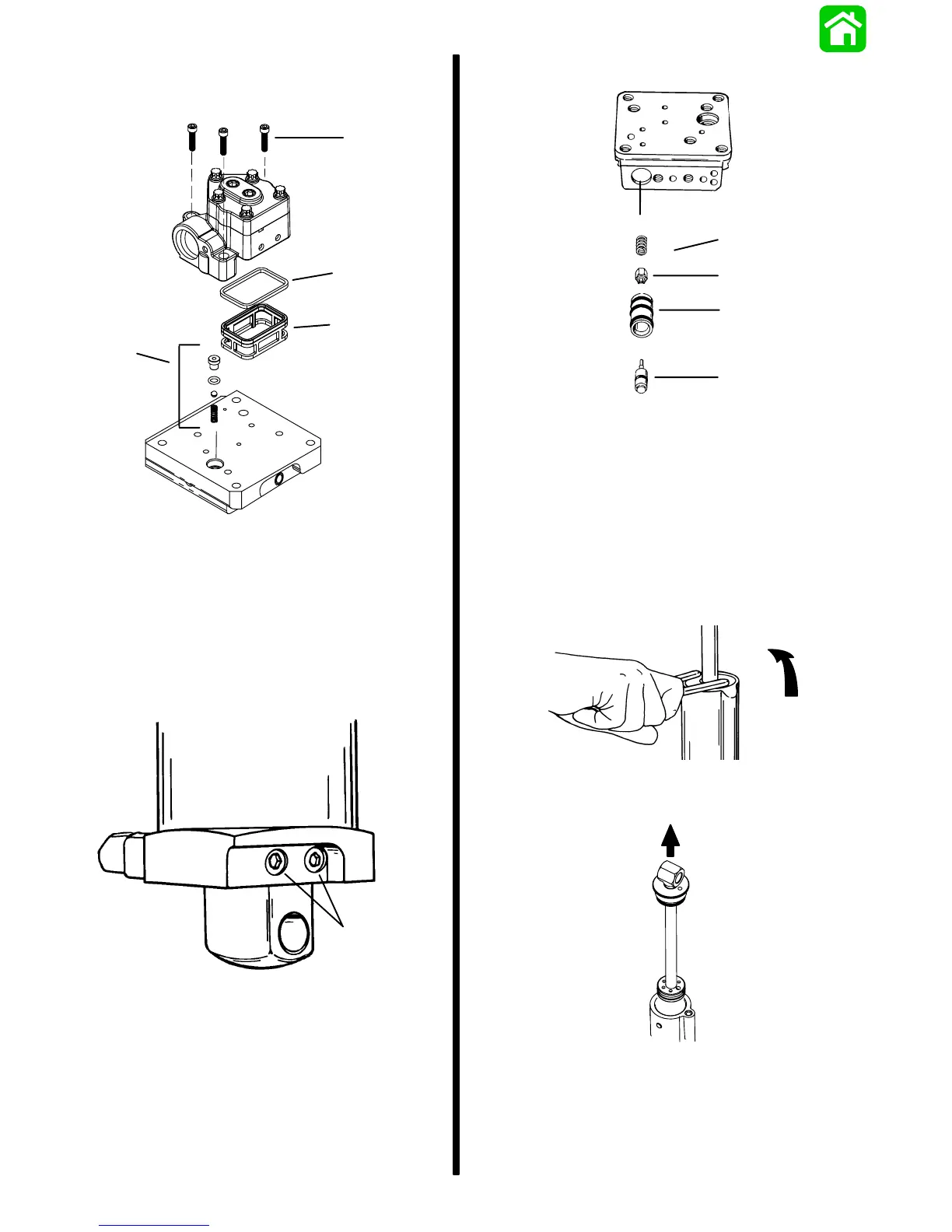

2. Remove three (3) screws to remove pump. Re-
move filter and filter seal under pump. Remove
suction seat assembly.
a
b
c
d
a - Screws (3)
b - Filter Seal
c - Filter
d - Suction Seat Assembly
Manifold Removal
1. Remove two (2) screws to remove manifold from
cylinder.
a
51146
a - Screw (2)
2. Remove tilt relief components.
a
b
c
d
51008
a - Spring
b - Poppet
c - Spool Housing
d - Trim Limit Spool
Shock Rod Removal
1. Unscrew end cap assembly from cylinder using
spanner wrench [1/4 in. x 5/16 in. (6.4mm x 8mm)
long pegs].
2. Remove shock rod assembly from cylinder.
