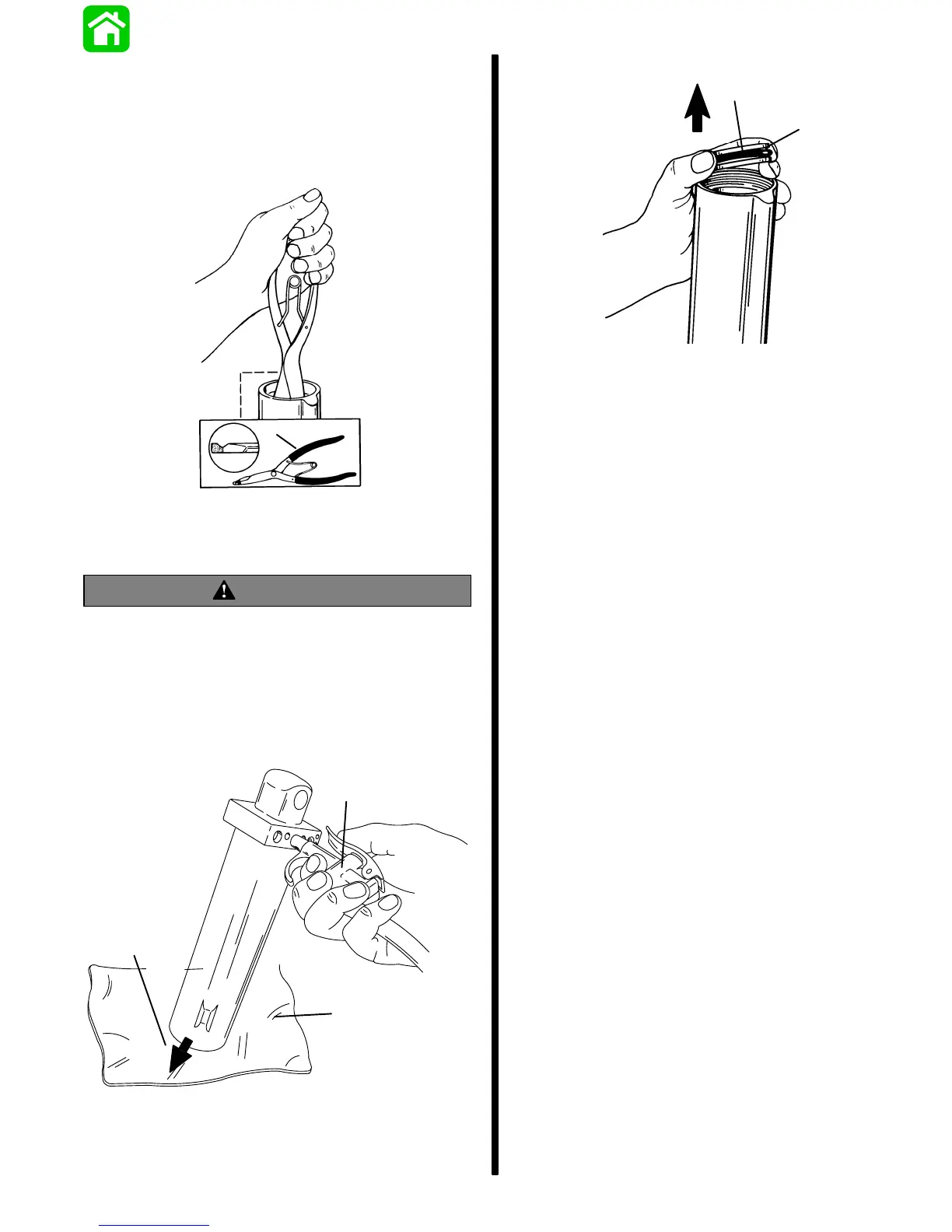

Memory Piston Removal
1. Remove memory piston from cylinder using one
of two methods:
a. Using lock ring pliers (Craftsman P/N 4735)
or suitable tool.
a
51144
b. Blowing compressed air into manual release
valve hole using adaptor (P/N 91-822778A3).
WARNING
Memory piston cup may be expelled at a high
velocity when air pressure is applied. Failure to
place cylinder as shown below could result in
personal injury.
NOTE: Point cylinder opening down and away. Use
a shop rag or towel to avoid damage to the memory
piston.
aaa
b
c
55466
a - Adaptor/Air Hose
b - Memory Piston Exit
c - Shop Rag
2. Remove O-ring from memory piston.
a
b
51144
a - O-ring
b - Memory Piston
