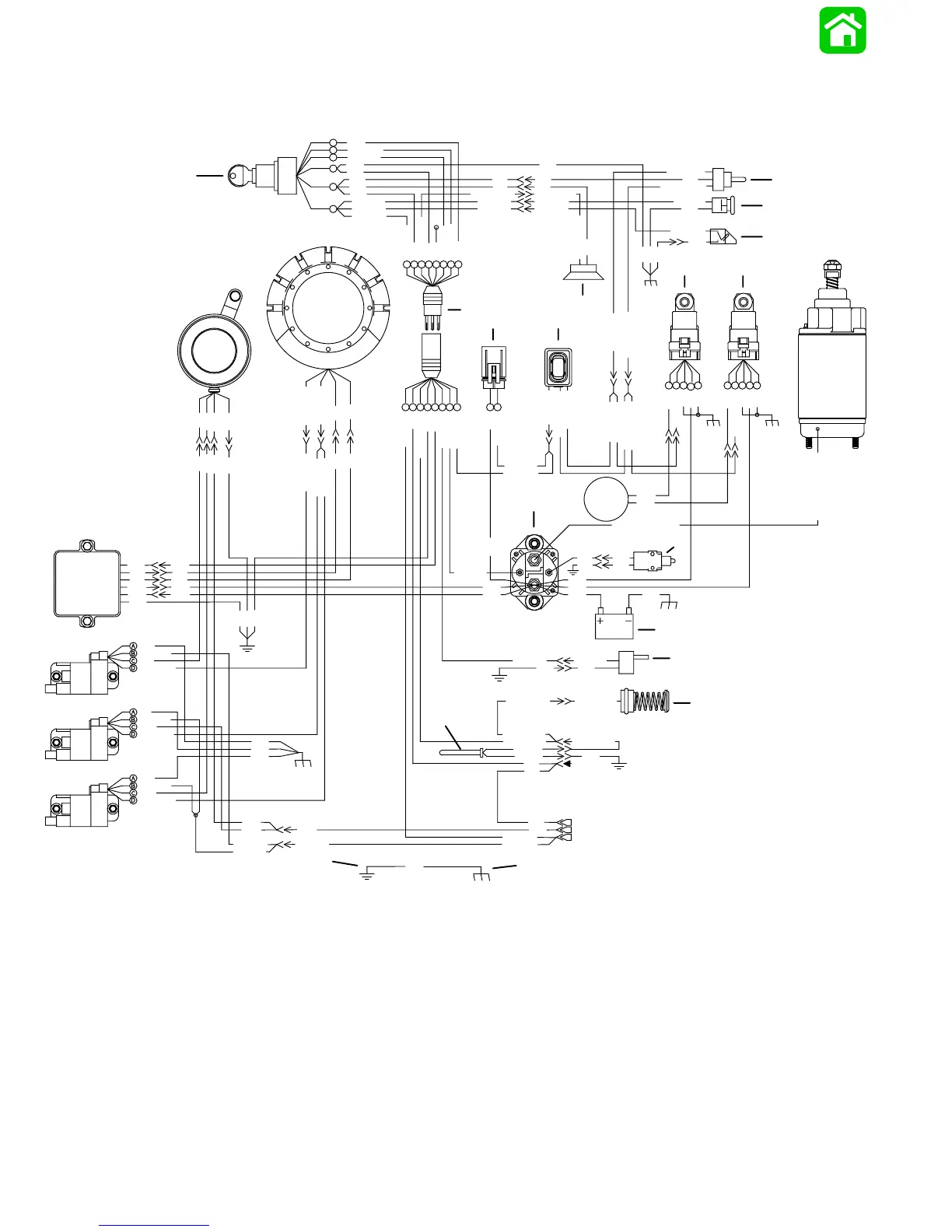

2D-14 - ELECTRICAL 90-830234R3 DECEMBER 1997
1998 75 Electric Start Tiller Handle w/Power Trim Wiring
Diagram
BLK
BLK/YEL
PPL
WHT/GRN
BLK
BLK/YEL
BRN
GRN/WHT
BLK
BLK/YEL
WHT
GRN/WHT
GRY
YEL
YEL
RED
RED
BLK
PPL
WHT
BRN
PPL
WHT
BRN
YEL
YEL
YEL
YEL
BLK
BLK
BLK
12345678
PPL
TAN/LT.BLU
BLK
GRY
YEL/RED
BLK/YEL
RED/PPL
AB
YEL/BLK
GRY
YEL
YEL
RED
RED
308586 87a87
308586 87a87
DN
UP
LT.BLU/WHT
GRN/WHT
BLU
RED
GRN
RED
BLK
BLK
BLK
BLK
RED/PPL
RED/PPL
RED
RED/PPL
LT.BLU/WHT
LT.BLU/WHT
GRN/WHT
GRN/WHT
LT.BLU/WHT
RED/PPL
GRN/WHT
BLK W/YEL ENDS
LT.BLU
LT.BLU
TAN/LT.BLUTAN/LT.BLU
BLU
GRN
BLK
BLK
BLK
YEL/BLK
BLK
BLK
YEL/BLK
RED
RED
RED
YEL/RED
RED
RED
RED
BLK
TAN/LT.BLU
TAN/LT.BLU
PPL
PPL
PPL
BRN
BLK/YEL
BLK/YEL
BRN
BLK/YEL
BRN
BRN
BLK/YEL
BLK/YEL
BLK
BLK
BLK
12345678
PPL
TAN/LT.BLU
BLK
YEL/RED
BLK/YEL
RED
BLK
BLK
PPL
TAN/LT.BLU
YEL/BLK
GRY
B
S
C
M
A
M
BLK/YEL
PPL
YEL/BLK
YEL/RED
RED
BLK
BLK
PPL
PPL
BLK/YEL
BLK/YEL
BLK/YEL
BLK/YEL
TAN/LT.BLU
PPL
PPL
BLK
BLK/YEL
BLK/YEL
TAN/LT.BLU
PPL
BLK
BLK
BLK
BLK
BLK
PPL
BLK/YEL
GRN/WHT
LT.BLU/WHT
BLK/YEL
PPL
GRN/WHT
LT.BLU/WHT
WHT/GRN
GRN/WHT
WHT/GRN
GRN/WHT
GRN/WHT
BLK W/YEL ENDS
BLK
BLK
BLK
TAN/LT.BLU
a
b
c
d
e
f
g
h
i
j
k
l
m
n
o
p
q
r
s
t
u
v
w
x
y
z
a - Ignition Switch
b - Tiller Handle Trim Switch
c - Push Button Stop Switch
d - Lanyard Stop Switch
e - Starter Motor
f - UP Trim Relay
g - DOWN Trim Relay
h - Warning Horn
i - Cowl Mounted Trim Switch
j - 20 Ampere Fuse
k - Engine Harness
l - Trim Motor
m- Starter Relay
n - Neutral Start Switch
o - 12 Volt Battery
p - Fuel Enrichment Solenoid
q - Head Temperature Switch
r - Oil Level Switch
s - Block
t - Electrical Plate
u - CDM 3
v - CDM 2
w - CDM 1
x - Voltage Regulator
y - Trigger
z - Stator
