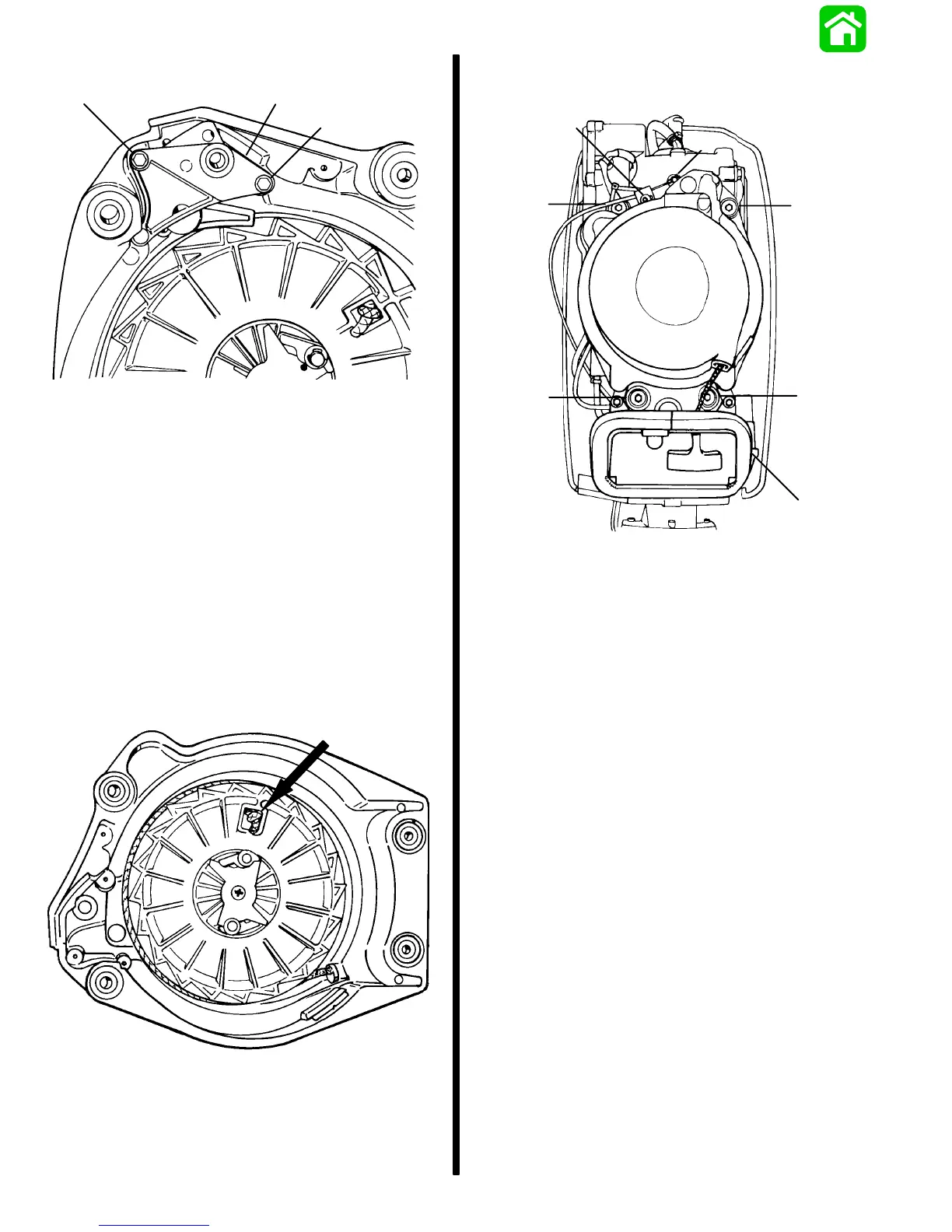

8A-6 - MANUAL STARTER 90-830234R3 DECEMBER 1997
4. Install cam retainer.
a
b
a
51605
a - Screws (2)
b - Cam Retainer
Adjusting Rewind Spring
Tension
1. Rotate sheave counterclockwise until it stops
(coil is bound). Then back off one full turn, plus
what is needed to align rope end with hole in
housing. Never back off sheave less than one full
turn.
2. Route starter rope thru rope guide in housing. Tie
a slip knot in rope approximately 12 in. (305 mm)
from end of rope.
51605
NOTE: Check operation of rewind and rewind ten-
sion before outboard installation.
3. Install rewind starter to engine.
4. Pull starter rope thru bracket, handle, and rope
retainer. Secure rope retainer with knot in rope.
b
c
c
c
c
d
a
51606
a - Retaining Clip
b - Screw
c - Nuts (4) Torque to 90 lb. in. (10.2 N·m)
d - Bracket
