Mercury 90 - 1994;1995;1996 80 Jet;100;115;125 Wiring Diagram

90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-7

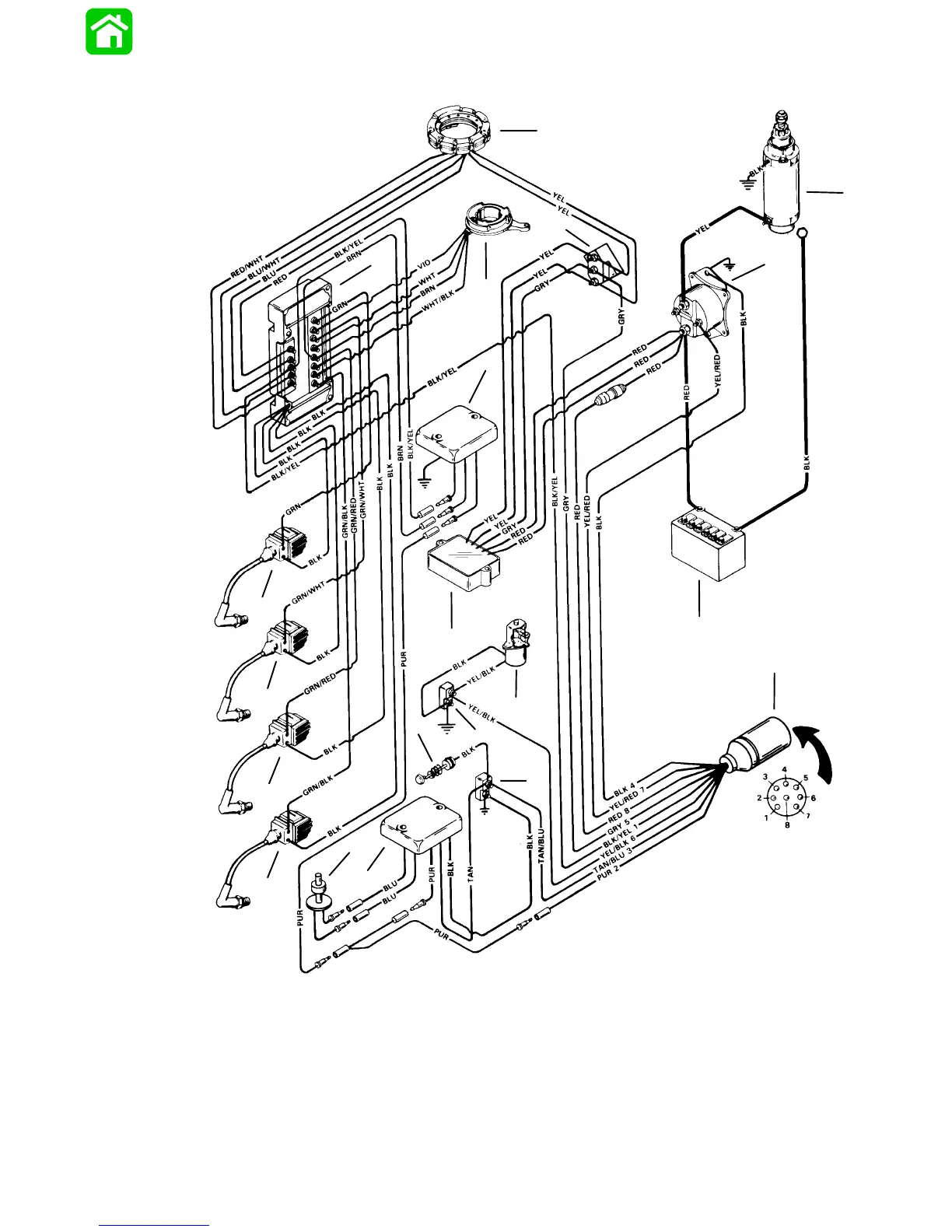

1994/1995/1996 80 Jet/100/115/125 Wiring Diagram
53474
a
b
c
d
g
h
i
j
k
l
m
n
o
p
q
e
f
r
r
r
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Starter
d - Starter Solenoid
e - 12 Volt Battery
f - Engine Harness
g - Warning Module
h - Low Oil Sensor
i - Temperature Switch
j - Enrichment Valve
k - Voltage Regulator/Rectifier
l - RPM Limiter
m- Ignition Coil #4 Cylinder
n - Ignition Coil #3 Cylinder
o - Ignition Coil #2 Cylinder
p - Ignition Coil #1 Cylinder
q - Switch Box
r - Terminal Block
