Mercury 90 - Boats Equipped with Panel or Console Mount Remote Control; Boats Equipped with Side Mount Remote Control; Connecting Remote Wiring Harness to the Engine; Required Side Mount Remote Control or Ignition Key Switch Assembly

90-830234R3 DECEMBER 1997 ATTACHMENTS/CONTROL LINKAGE - 7A-23
Required Side Mount
Remote Control or Ignition
Key Switch Assembly

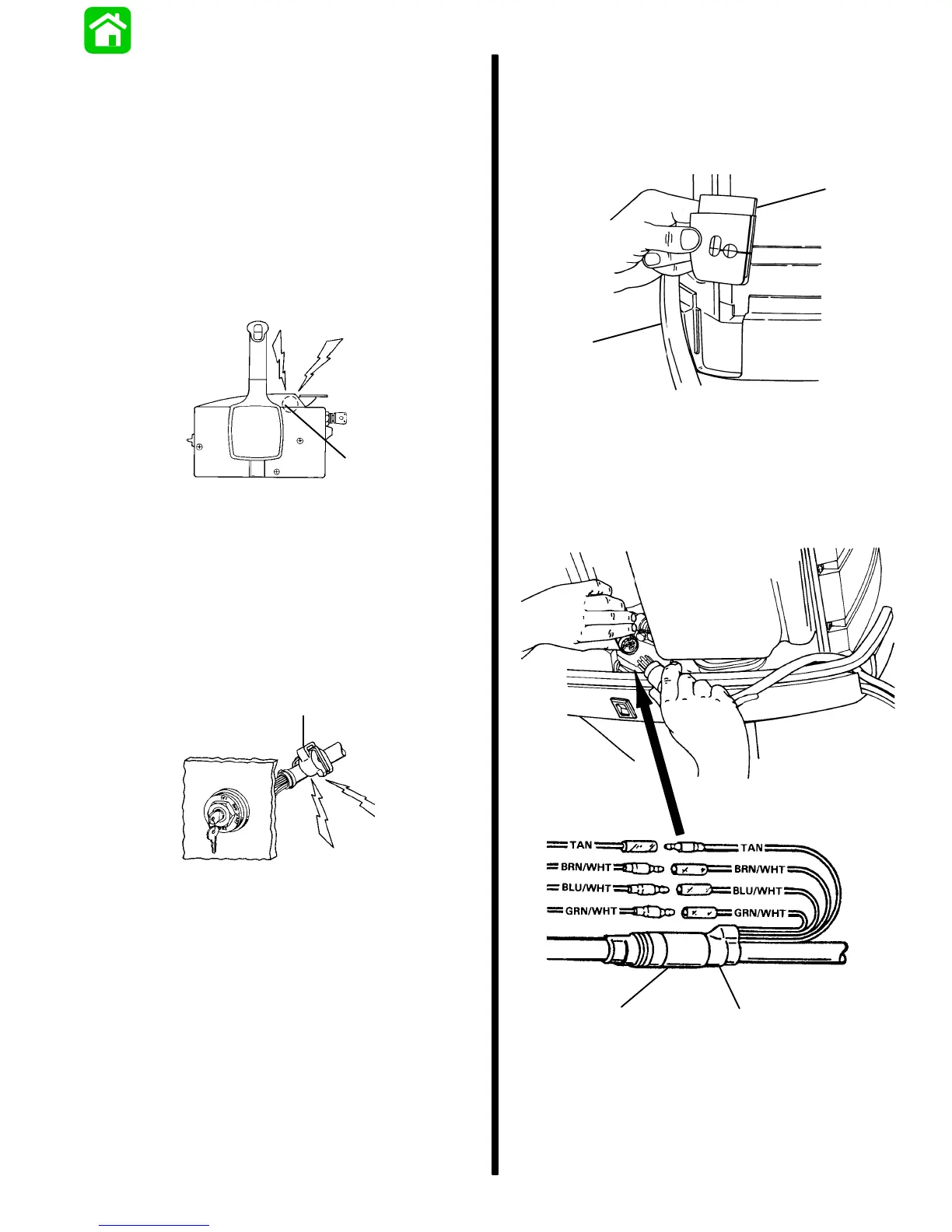

Boats Equipped with Side Mount
Remote Control
A Quicksilver Commander 2000 series Side Mount
Remote Control equipped with a warning horn must
be used with this outboard. This warning horn is nec-
essary for the engine warning system.
a
a - Warning Horn
Boats Equipped with Panel Or
Console Mount Remote Control
A Quicksilver Ignition Key/Choke Assembly
equipped with a warning horn must be used with this
engine. This warning horn is necessary for the en-
gine warning system.
a
a - Warning Horn
Connecting Remote Wiring
Harness To The Engine
1. Pull up the cowl seal (a) and remove the star-
board side rubber grommet (b).
b
a
2. Take hold of the engine connector (c) and install
the remote wiring harness plug (d). Connect
additional wire leads (if equipped) as shown.
NOTE: The rubber grommet can to be lubricated to
ease installation.
d
c
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
