90-830234R3
DECEMBER 1997
POWERHEAD - 4-65

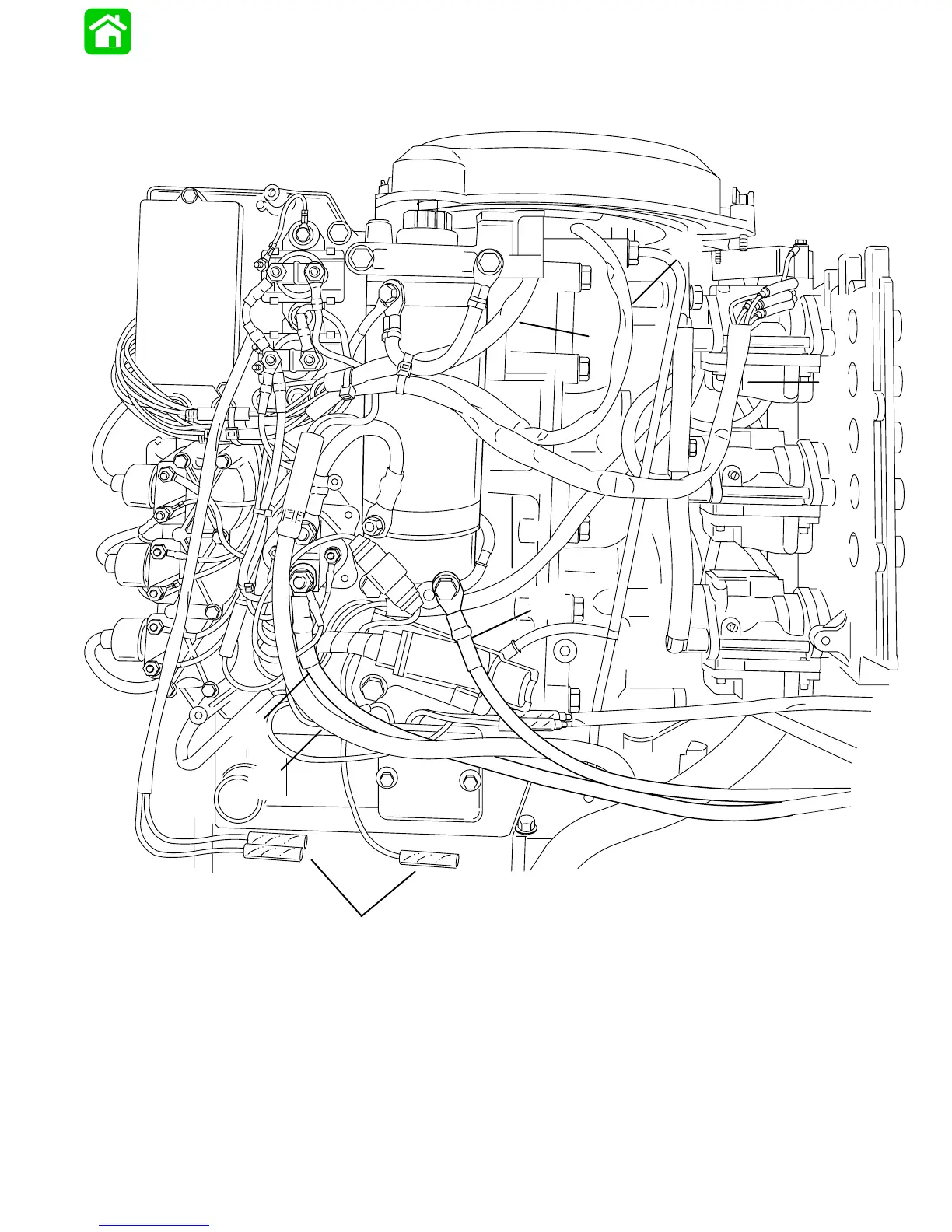

1994 and Newer 3 Cylinder Harness Routing (without Oil
Reservoir Installed)
a
b
c
d
e
f
g
h
54161
a
-
Stator Harness
b
-
T
rigger Harness
c
-
V
oltage Regulator Harness
d
-
Fuel Enrichment Harness
e
-
NEGA
TIVE (–) Battery Cable
f
-
Power Trim Harness
g
-
POSITIVE (+) Battery Cable
h
-
Lower Cowl T
rim Harness
276
278
Table of Contents
Important 1 C
14
Propeller Information
3
How to Use this Manual
3
Table of Contents
14
Serial Number Location
15
Conditions Affecting Performance
15
Weather
15
Boat
16
Engine
16
Fresh Water Submersion
17
Following Complete Submersion
17
Salt Water Submersion
17
Submerged While Running
17
Propeller Selection
18
Propeller Installation
18
Power Trim System
19
General Information
19
Power Trim Operation
19
Trim "In" Angle Adjustment
20
Compression Check
20
Painting Procedures
21
Cleaning & Painting Aluminum Propellers & Gear Housings
21
Decal Application
22
Decal Removal
22
Instructions for "Wet" Application
22
Important 1 D
24
Boat Horsepower Capacity
25
Notice to Installer and Owner
25
Outboard Remote Control
25
Selecting Accessories for the Outboard
25
Selecting Steering Cables and Remote Control Cables
25
Drilling Outboard Mounting Holes
27
Locate Center Line of the Outboard
27
Lifting Outboard
28
Installing Ride Guide Steering Cable to the Outboard
29
Single Steering Cable and Steering Link Rod Installation
29
Steering Link Rod Installation
29
Co-Pilot Installation (Tiller Handle Models)
30
Boats Equipped with Panel or Console Mount Remote Control
31
Boats Equipped with Side Mount Remote Control
31
Remote Control Installation
31
Required Side Mount Remote Control or Ignition Key Switch Assembly
31
Shift and Throttle Cable Installation to the Outboard 1D-8
31
Shift Cable Installation
31
Throttle Cable Installation
32
Battery Connections
34
Set up Instructions for Oil Injection System
34
Bleeding Air from the Oil Injection System
35
Filling the Oil Injection System
35
Adjusting the Oil Injection Pump
36
Trim Tab Adjustment
36
Electrical 2
38
Special Tools
39
Cylinder Electrical Components (USA-0G127499/BEL-9836632 & BELOW)
40
Electrical Components (USA-0G127500 Thru 0G437999)(BEL-9836633 Thru 9926999)
42
Cylinder Electrical Components (USA-S/N-0G438000/BEL-9937000 & UP)
44
Cylinder Electrical Components (S/N-USA-437999/BEL-9926999 & BELOW)
46
Cylinder Electrical Components (USA-S/N-0G438000/BEL-9937000 & UP)
48
Description
50
Direct Voltage Adapter (DVA) Tests
50
Test Procedures
50
Test Sequence
51
Belgium-09793577 Thru 09879064
52
Cylinder Stators
52
Cylinder with 16 Ampere Stator 398-9710A31 USA-0D283222 Thru 0G301750 Belgium-09793577 Thru 09885527
52
Ignition System DVA Specifications Test Chart
52
Manual with 9 Ampere Stator 398-9873A20
52
Cylinder Stators
53
Cylinder with 16 Ampere Stator 398-9710A33 USA-0G301751 and above Belgium - 09885528 Thru 09916721
53
Manual with 9 Ampere Stator 398-9873A21
53
ADI Ignition Using a RED Stator with an Adapter Module
55
Electric Start Engines
56
Manual Start Engines
56
RED Stator DVA Test
56
RED Stator with Adaptor and Ignition Coils
56
Troubleshooting Procedures
56
Theory of Operation
57
Capacitor Charging #1 CDM
58
Capacitor Charging #2 & #3 CDM
59
Cylinder Trigger Circuit
60
Ignition Coil Circuit
61
Stop Circuit
62
Rev Limiter Circuit
63
Ignition Component Description
64
RED Stator with CDM
64
CDM (P/N 827509)
65
CDM Test Harness 84-825207A2
65
Spark Gap Tester P/N 91-850439
65
Direct Voltage Adaptor (DVA) Test
70
Resistance Tests
72
Flywheel Removal and Installation
73
Ignition (Key) Switch Test
73
Stator Removal and Installation
74
Trigger Removal and Installation
77
Ignition Coil Removal and Installation
79
Switch Box Removal and Installation
80
Electrical 2
82
Specifications
83
Battery
84
Operating Engine Without Battery
84
Precautions
84
Special Tools
84
Specific Gravity Readings
84
Charging a Discharged Battery
85
Electrolyte Level
85
BLACK Stator Battery Charging System Troubleshooting
86
Winter Storage of Batteries
86
Ampere (Manual Start) BLACK Stator Output Test
87
BLACK Stator 14 and 16 Ampere Alternator System Test
87
BLACK Stator Ohms Test (Alternator Coils Only)
87
RED Stator Battery Charging System Troubleshooting
88
Tachometer Terminal Block
88
Cylinder 14 and 16 Ampere BLACK Stator Battery Charging Wiring Diagram
91
Cylinder 14 and 16 Ampere BLACK Stator Battery Charging Wiring Diagram
92
Cylinder Battery Charging Diagram (with BLACK STATOR) with Battery Isolator
93
Cylinder Battery Charging Diagram (with RED STATOR) with Battery Isolator
94
Cylinder Battery Charging Diagram (with BLACK Stator) with Battery Isolator
95
Cylinder Battery Charging Diagram (with RED Stator) with Battery Isolator
96
Rectifier Test
97
Description
98
Starting System
98
Starting System Components
98
Troubleshooting the Starting Circuit
98
Starting Circuit Troubleshooting Flow Chart
99
Disassembly
101
Removal
101
Starter Motor
101
Starter Cleaning, Inspection and Testing
102
Testing
102
Brush Replacement
104
Electrical 2
109
Special Tools
110
Specifications
110
Timing/Synchronizing/Adjusting (3 Cylinder Models)
110
Special Tools
114
Specifications
114
Throttle Cable Installation
114
Timing/Synchronizing/Adjusting (4 Cylinder Models)
114
Idle Adjustment
118
Throttle Cable Installation
118
Electrical 2
120
1994/1995 65 Jet Wiring Diagram Electric (1-3-2 Firing Order)
121
65 Jet Wiring Diagram Electric (1-2-3 Firing Order)
122
1994/1995 75/90 Wiring Diagram (1-3-2 Firing Order)
123
75/90 Wiring Diagram (1-2-3 Firing Order)
124
75 Work Model Wiring Diagram Manual Start (1-2-3 Firing Order)
126
1994/1995/1996 80 Jet/100/115/125 Wiring Diagram
127
65 Jet Wiring Diagram (W/CDM) (1-2-3 Firing Order)
128
75/90 Wiring Diagram (W/CDM) (1-2-3 Firing Order)
130
80 Jet/100/115/125 Wiring Diagram (W/CDM)
131
1998 65 Jet Wiring Diagram
132
1998 75 Work Model Wiring Diagram
133
75 Electric Start Tiller Handle W/Power Trim Wiring Diagram
134
1998 75/90 Electric Start Wiring Diagram
135
1998 75/90 Electric Start W/Power Trim Wiring Diagram
136
1998 80 Jet/100/115/125 Wiring Diagram
137
Power Trim System Wiring Diagram (3 Cylinder Models Using COMMANDER 2000 Side Mount Remote Control)
138
Power Trim System Wiring Diagram (3 Cylinder Models Using COMMANDER Side Mount Remote Control)
139
Power Trim System Wiring Diagram (4 Cylinder Models Using COMMANDER 2000 Side Mount Remote Control)
139
Tachometer (with Adjustable Dial) and Trim Indicator Gauge Wiring Diagram
141
COMMANDER 2000 Side Mount Remote Control
142
Key/Choke Switch Continuity Test (COMMANDER 2000 Side Mount Remote Control)
142
Warning Horn) Wiring Diagram
143
COMMANDER 2000 Side Mount Remote Control
144
COMMANDER 2000 Side Mount Remote Control (Electric Start with Warning Horn) Wiring Diagram
144
