90-830234R3 DECEMBER 1997 FUEL SYSTEM - 3A-13

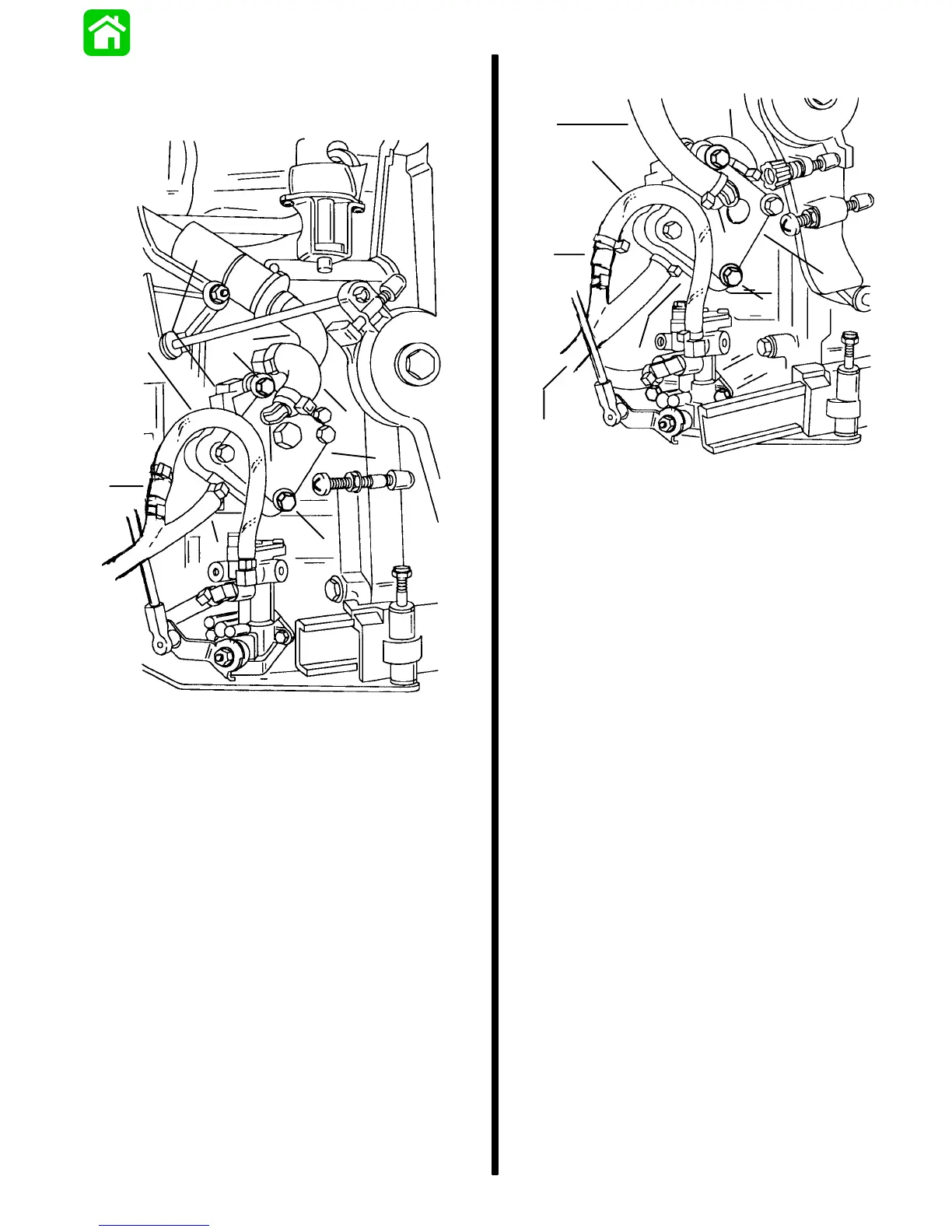

Installation of Fuel Pump
MODEL 65 JET, 75, 90
53991
a
b
c
d
e
f
g
g
h
i
a - Fuel Pump
b - Pulse Hose
c - Inlet Hose
d - Outlet Hose (Replace with Molded Hose)
e - Elbow [Apply PERFECT SEAL (92-34227--1) to threads]
f - Check Valve
g - Screws [Torque to 40 lb. in. (4.5 Nm)]
h - Clear Tubing [5.5 in. (139.7mm)]
i - Gasket (Cylinder Block to Fuel Pump) (HIDDEN)
MODEL 80 JET, 100, 115, 125
53992
a
b
h
c
f
g
d
i
e
a - Fuel Pump
b - Pulse Hose
c - Inlet Hose
d - Outlet Hose
e - Elbow [Apply PERFECT SEAL (92-34227--1) to threads]
f - Check Valve
g - Bolts [Torque to 40 lb. in. (4.5 Nm)]
h - Clear Tubing [8 in. (203.2mm)]
i - Gasket (Cylinder Block to Fuel Pump) (HIDDEN)
To Next Page
