Mercury 90 Service Manual

90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-5

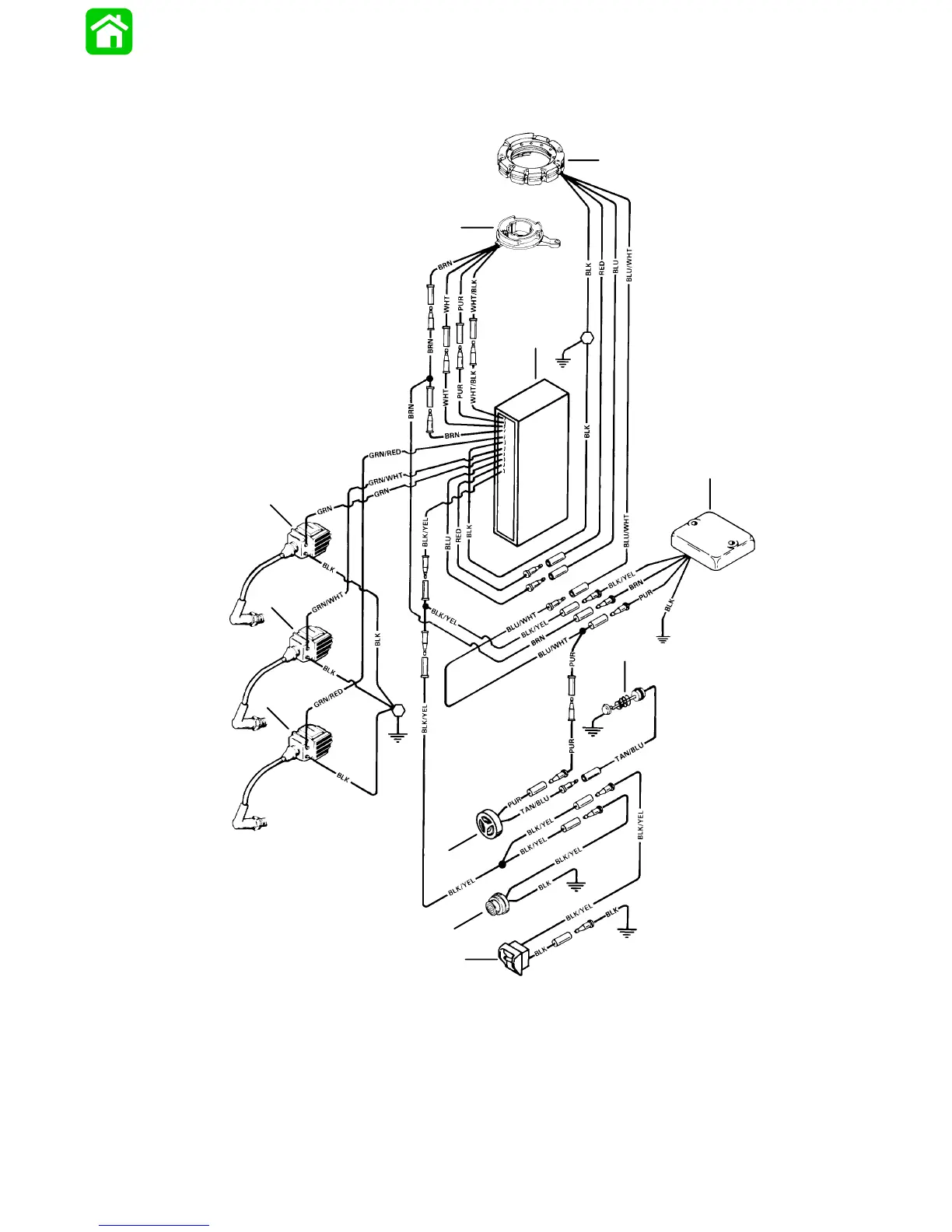

1994/1995 75 Work Model Wiring Diagram Manual Start
(1-3-2 Firing Order)
a
b
c
d
e
f
g
h
i
j
k
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Stator
b - Trigger
c - Switch Box
d - Ignition Coil Cylinder #1
e - Ignition Coil Cylinder #2
f - Ignition Coil Cylinder #3
g - Emergency Stop Switch
h - Stop Button
i - Warning Horn
j - Temperature Switch
k - RPM Limiter
