90-830234R3 DECEMBER 1997 ELECTRICAL - 2D-9

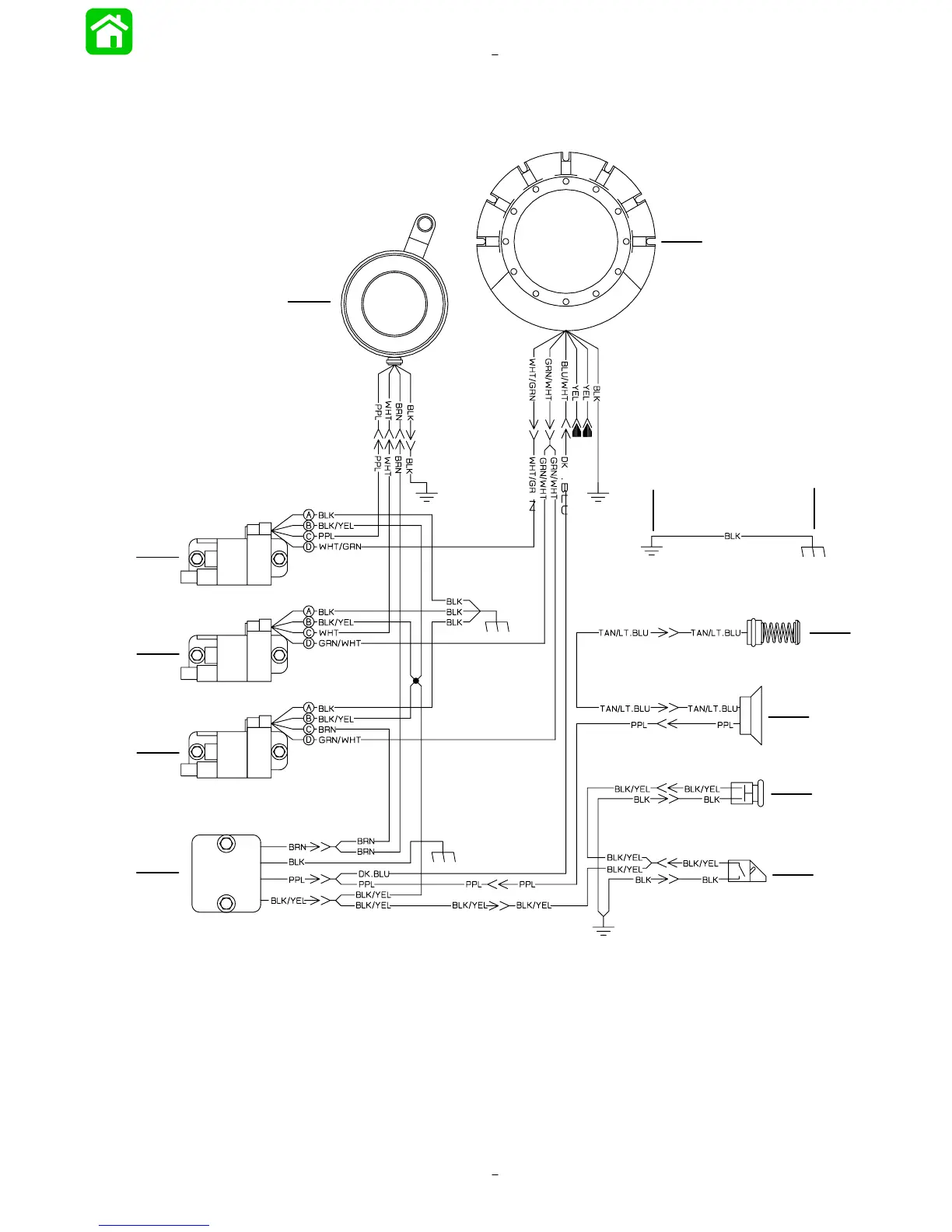

1997 75 Work Model Wiring Diagram (w/CDM) Manual Start
(1-2-3 Firing Order)
a
b
c
d
e
f
g
h
i
k
l
j
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
PUR = PURPLE
RED = RED
TAN = TAN
VIO = VIOLET
WHT = WHITE
YEL = YELLOW
a - Trigger
b - Stator
c - Electrical Plate
d - Engine Block
e - Temperature Switch
f - Warning Horn
g - Push Button Stop Switch
h - Lanyard Stop Switch
i - RPM Limiter
j - CDM #3
k - CDM #2
l - CDM #1
