90-830234R3 DECEMBER 1997 POWERHEAD - 4-75

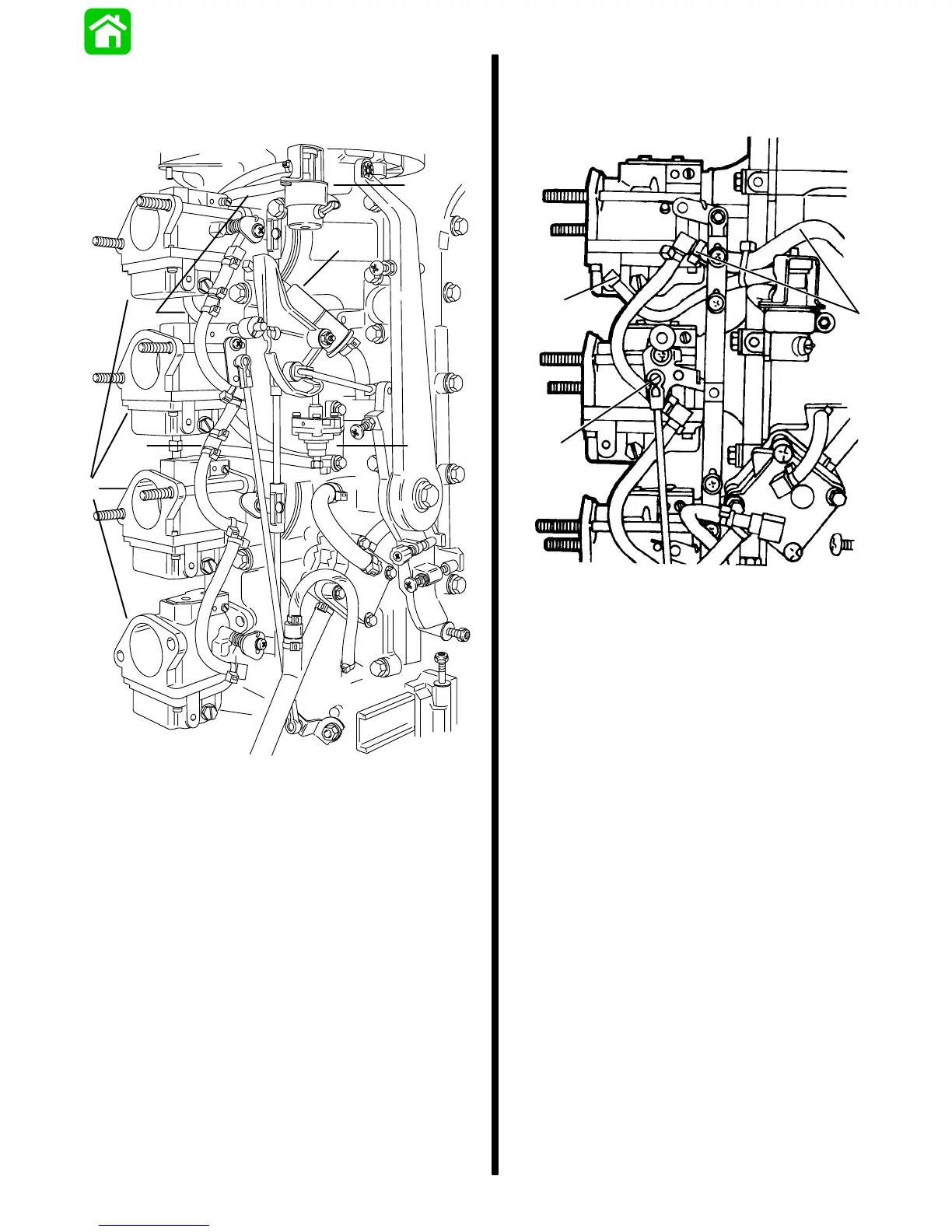

Install carburetors as an assembly. Connect in-
put fuel hose to top carburetor, input hose to fuel
enrichment valve, and input hose to accelerator
pump. Secure hoses with sta-straps.
4 Cylinder Models
a
b
c
d
e
f
54131
a - Carburetors
b - Top Carb Input Fuel Hose
c - Input Hose to Fuel Enrichment Valve
d - Input Hose to Accelerator Pump
e - Fuel Enrichment Valve
f - Accelerator Pump
Reconnect main fuel line hose, and fuel enrich-
ment hose. Secure fuel line “a” with sta-strap.
Reconnect throttle linkage.
3 Cylinder Models
a
b
c
19093
a - Main Fuel Hose
b - Fuel Enrichment Hose (1996 Models will Connect
Enrichment Hose to Fitting in Fuel Line between Top
and Middle Carburetors)
c - Throttle Linkage
