Mercury 90 Service Manual

90-830234R3 DECEMBER 1997 MID-SECTION - 5A-23

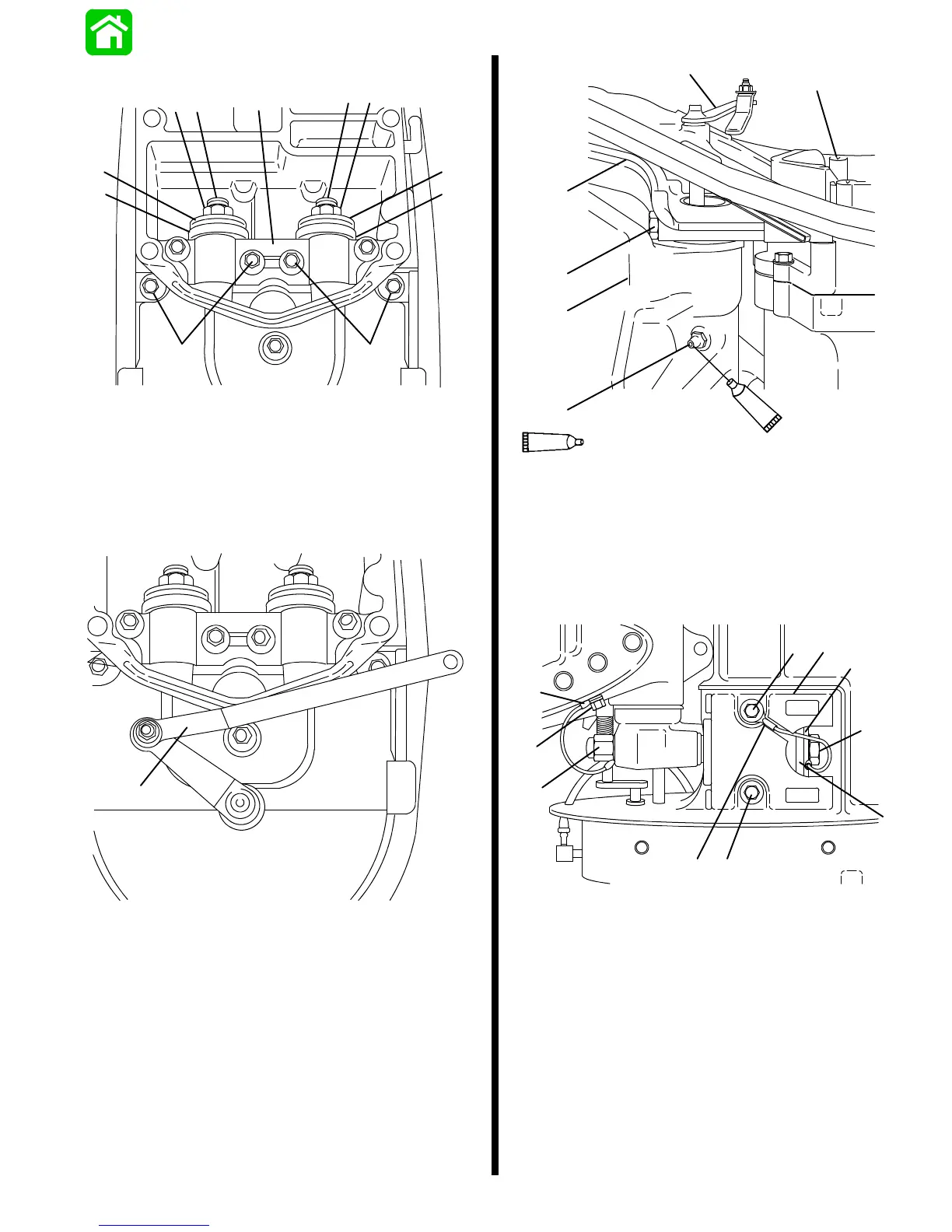

Upper Mount
e
d
b c
a
f
f
c
b
e
d
21048
a - Upper Mount
b - Nut (2) [Torque to 80 lb. ft. (108.5 N¡m)]
c - Bolt (2)
d - Rubber Washer (2)
e - Washer (2)
f - Bolt (4) [Torque to 23.5 lb. in. (31.9 N¡m)]
a
21049
a - Upper Shift Linkage
a
f
b
c
d
e
95
2-4-C With Teflon (92-825407A12)
95
21050
a - Upper Shift Linkage
b - Steering Arm/Swivel Pin
c - Upper Mount Bolt
d - Swivel Bracket
e - Grease Fitting
f - Mid-Section Drive Shaft Housing
Lower Mount (Port Side Shown)
g
h
i
cb
c
a
e
d
f
21051
a - Lower Mount Clamp
b - Ground Strap
c - Bolt (2) [Torque to 15 lb. ft. (20.3 N¡m)]
d - Lower Mount Bolt
e - Washer
f - Washer
g - Nut [Torque to 50 lb. ft. (67.8 N¡m)]
h - Ground Strap
i - Bolt
