6A-12 - LOWER UNIT 90-830234R3 DECEMBER 1997

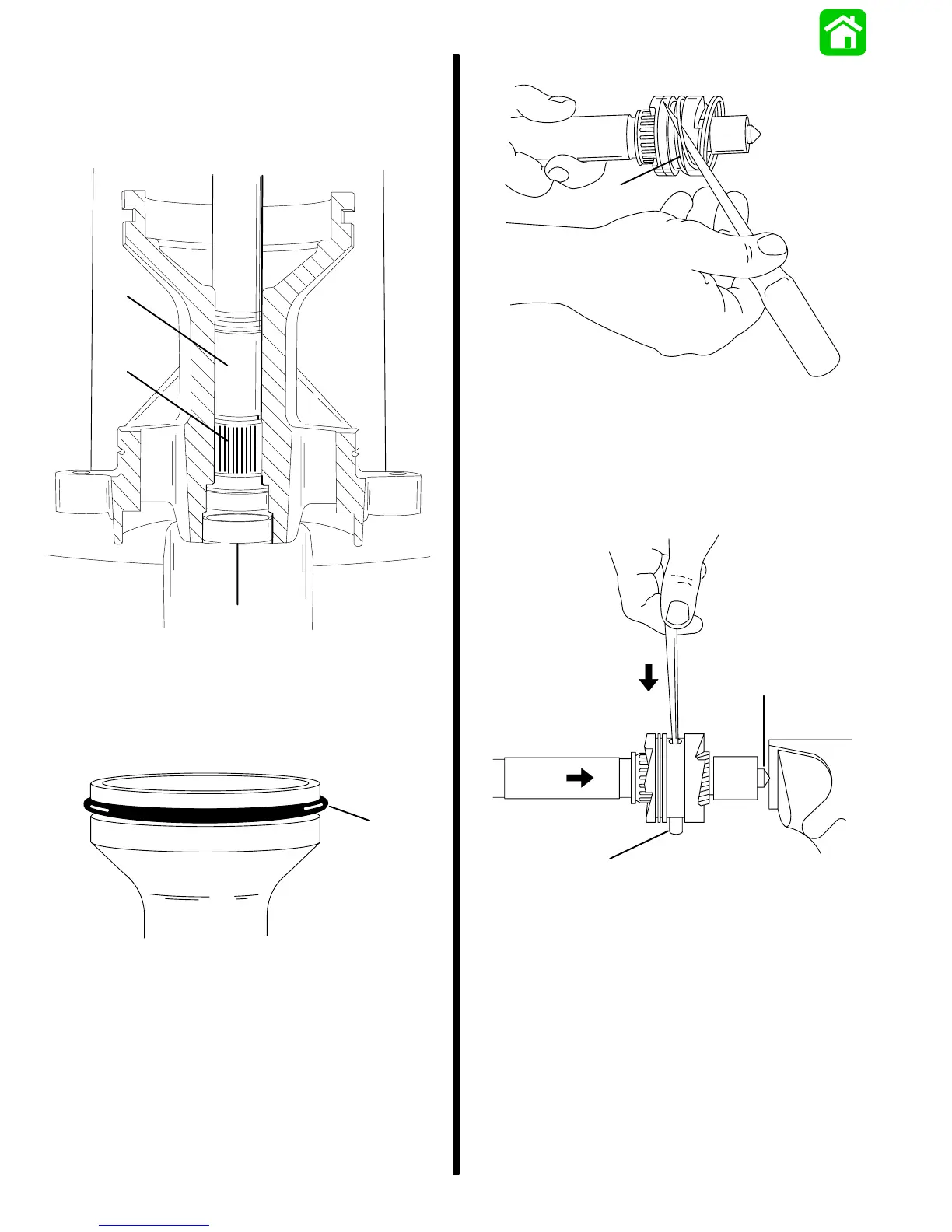

8. If bearing is rusted or does not roll freely, replace
bearing. Remove bearing and oil seals using
Mandrel* (91-36569) and Driver Rod* (91-37323).
Discard oil seals.
* From Bearing Removal and Installation Kit (91-31229A7)
a
c
b
51264
a - Bearing
b - Mandrel (91-26569)
c - Driver Rod (91-37323)
9. Remove (if not removed with bearing in Step 8)
propeller shaft seals and bearing carrier O-ring.
a
51263
a - O-ring
10. Remove spring.
a
51876
a - Spring
11. Apply constant pressure to cam follower to pre-
vent cam follower assembly from ejecting from
propeller shaft while pushing cross pin out of
clutch dog.
a
b
51800
a - Cross Pin
b - Cam Follower
12. Remove components from propeller shaft.
