90-830234R3 DECEMBER 1997 ATTACHMENTS/CONTROL LINKAGE - 7B-19

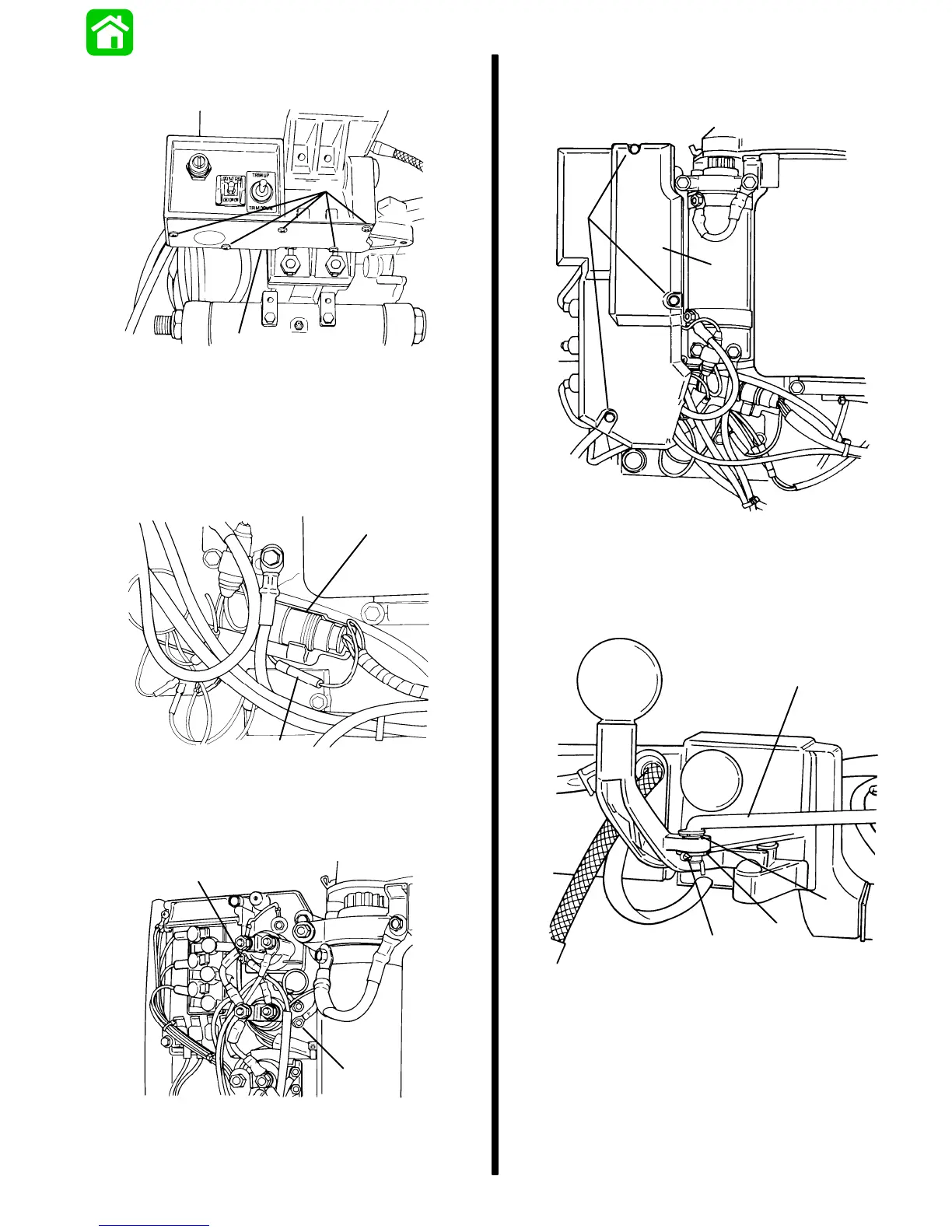

11. Secure access cover to tiller bracket with five
screws. DO NOT OVERTIGHTEN SCREWS.
a
b
51626
a - Access Cover
b - Screws
12. Connect switch harness plug to engine harness
plug.
Reconnect PURPLE bullet connector.
a
b
51623
a - Switch Harness Plug
b - PURPLE Bullet Connector
13. Reconnect trim switch leads to trim solenoids.
a
b
51622
a - BLUE/WHITE Lead
b - GREEN/WHITE Lead
14. Reinstall electrical panel access cover and
secure with screws. Torque screws to 30 lb. in.
(3.4 Nm).
a
b
51621
a - Panel
b - Screws - Torque to 30 lb. in. (3.4 Nm)
15. Reconnect shift link rod to shift lever using bush-
ing, washer and cotter key.
a
b
c
d
51624
a - Shift Link Rod
b - Bushing
c - Washer
d - Cotter Key
