7B-22 - ATTACHMENTS/CONTROL LINKAGE 90-830234R3 DECEMBER 1997
4. Lubricate both ends of link rod with Quicksilver
2-4-C w/Teflon.
5. Secure link rod between steering handle assem-
bly and pilot rod end as shown.
6. Adjust wing nut on friction device to provide de-
sired steering control.
IMPORTANT: Tighten wing nut to increase fric-
tion; loosen to decrease friction.
WARNING
If wing nut is tightened, it may not be possible to
steer the outboard in an emergency.

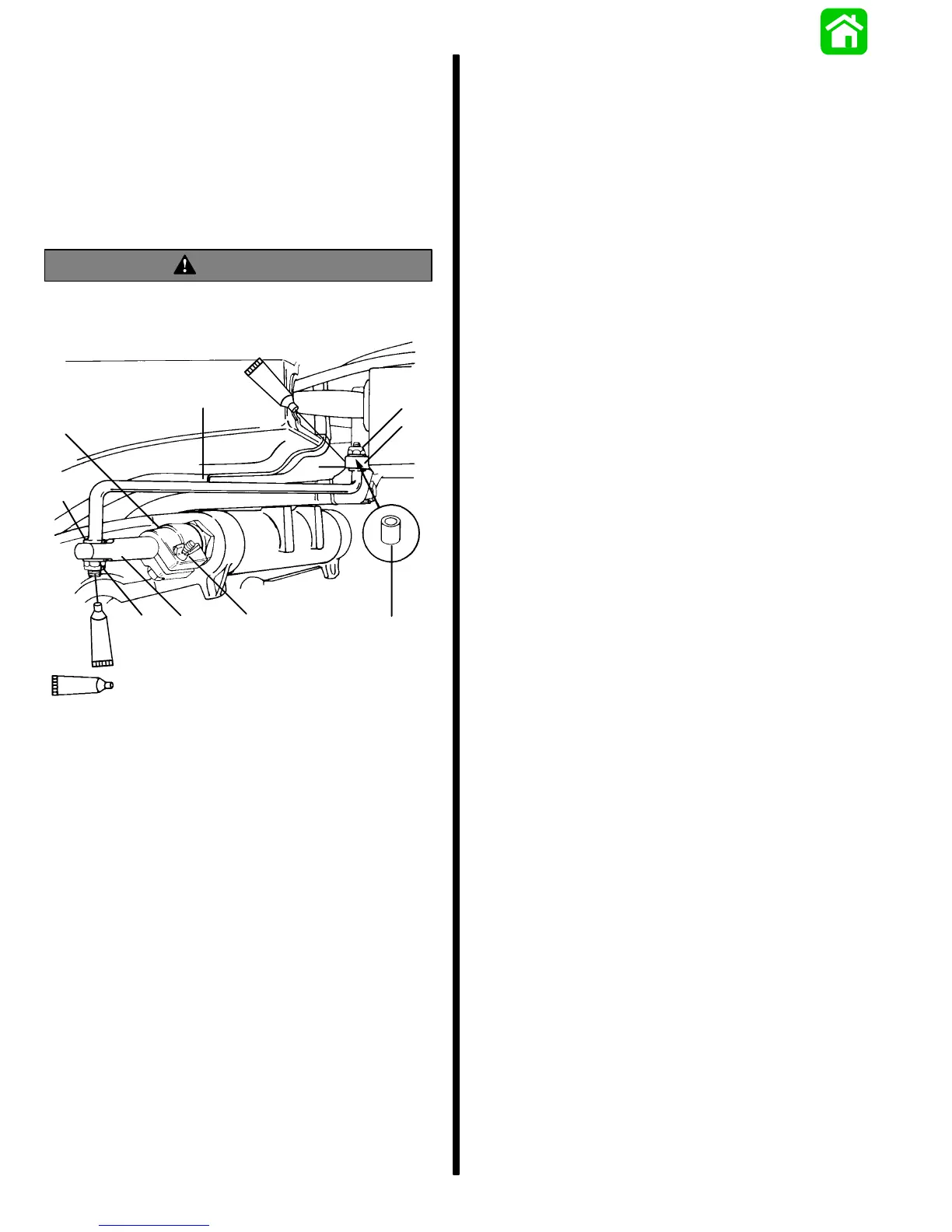

a
b
c
d
e
f
g
h
i
g
51626
95
2-4-C With Teflon (92-825407A12)
95
95
a - Steering Friction Device
b - Wing Nut
c - Pilot Rod
d - Spacer (Hidden) - Place in hole of steering handle assem-
bly.
e - Steering Handle Assembly
f - Link Rod - Short bend of link rod to steering handle
g - Flat Washer (2)
h - Locknut - Torque to 120 lb. in. (13.6 N·m)
i - Locknut - Tighten until it seats - DO NOT exceed 120 lb. in.
(13.6 N·m), then back off 1/4 Turn.
To Next Page
