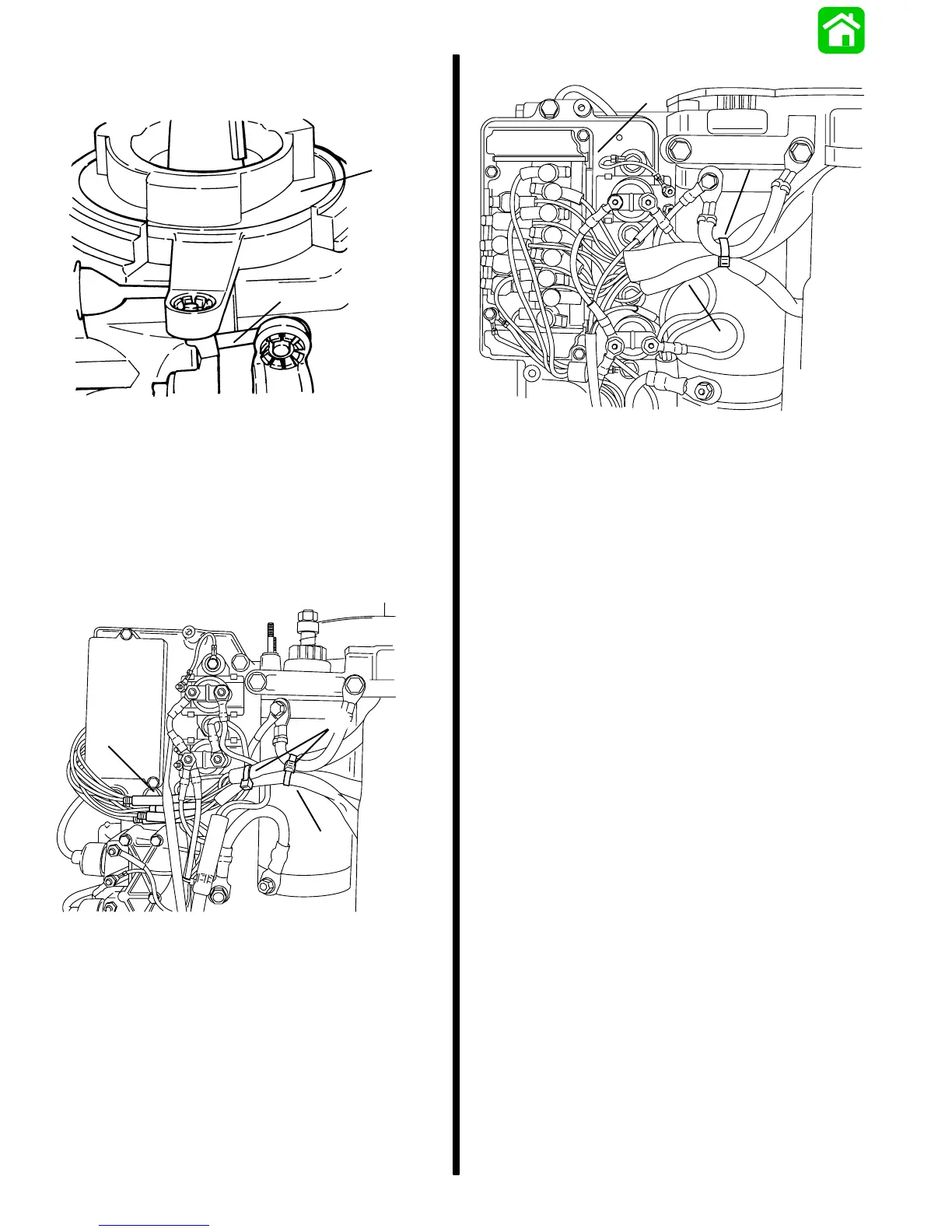

2A-40 - ELECTRICAL 90-830234R3 DECEMBER 1997
INSTALLATION
1. Install trigger and connect link arm.
a
b
19459
a - Trigger
b - Link Arm
2. Connect trigger leads to switch box; refer to wir-
ing diagrams in Section 2D.
3. Install sta-strap.
4. Install starter motor; refer to Section 2B.
3 Cylinder Models
b
a
c
53792
a - Sta-Straps
b - Bullet Connectors; Connect Trigger Leads
c - Trigger Harness
4 Cylinder Models
a
b
c
53970
a - Sta-Strap
b - Trigger Harness
c - Switch Box
5. Install stator; refer to “Stator Installation,” preced-
ing.
6. Install flywheel; refer to “Flywheel Installation,”
preceding.
