Mercury BRAVO

GASOLINE ENGINES BRAVO MODELS
Page 102 of 116

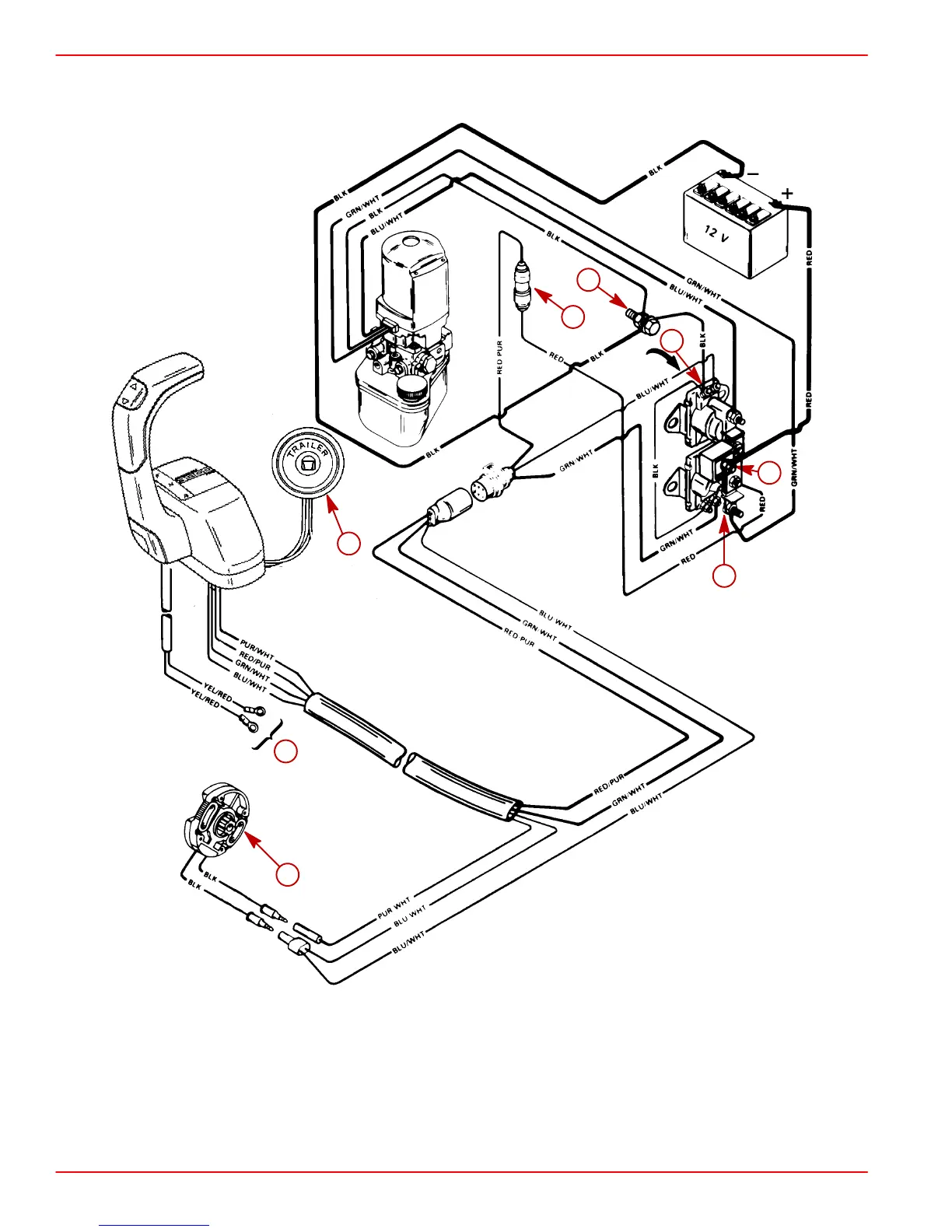

Power Trim System Wiring Diagram
73962
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
ORN = ORANGE
PNK = PINK
PUR = PURPLE
RED = RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LT OR LIT = LIGHT
DRK = DARK
b
c
d
e
f
g
h
a
a-20 Amp Fuse
b-Ground Bolt (Floor Mount)
c-UP Solenoid
d-110 Amp Fuse
e-DOWN Solenoid
f-Trailer Switch
g-Neutral Switch To Instrument Wiring Harness
h-Trim Limit Switch
