GASOLINE ENGINES BRAVO MODELS
Page 112 of 116

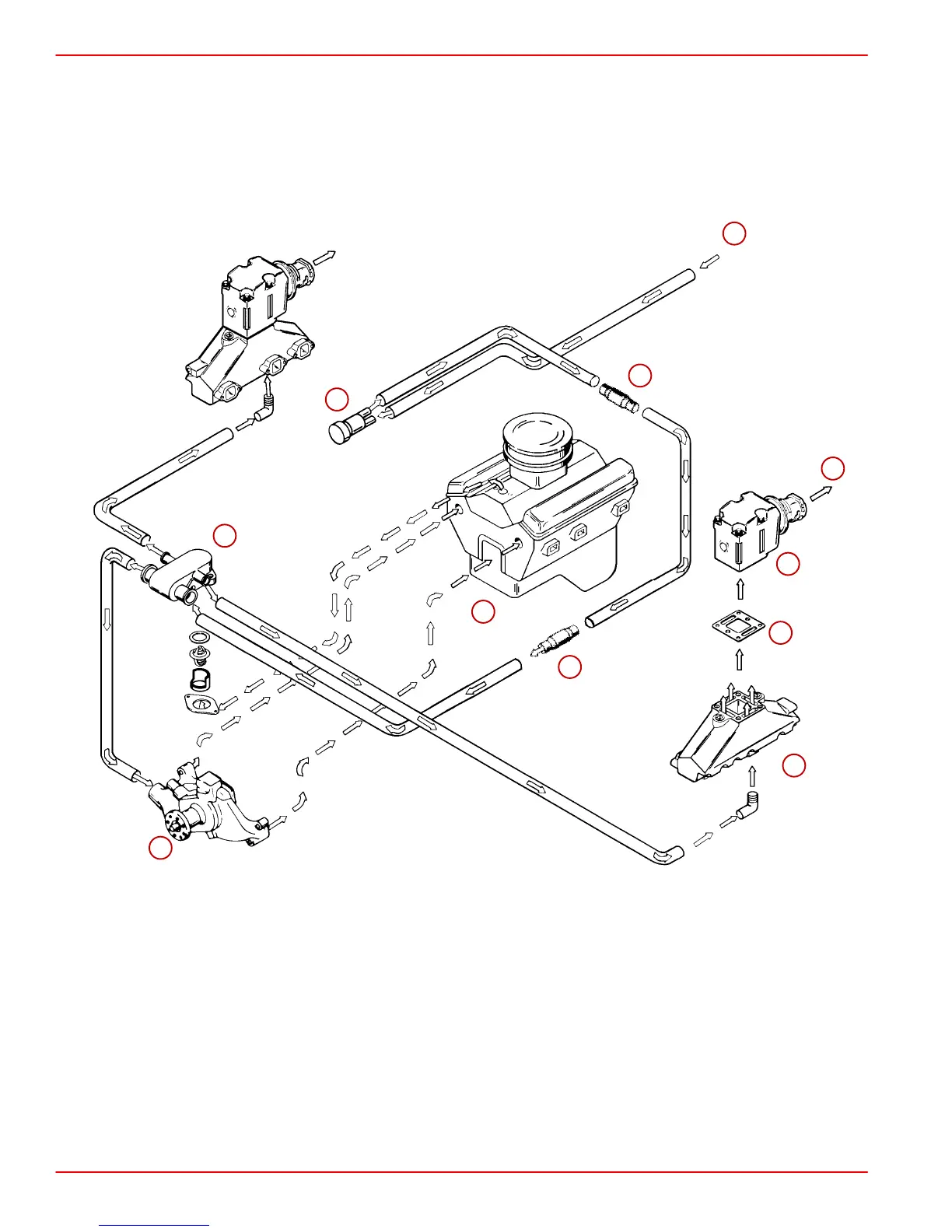

Water Flow Diagrams
262 CID BRAVO ENGINES
NOTE: Certain components in the following diagram may look different than on your particu-
lar power package, but the water flow paths remain similar on all engines.
75148
10
11
1
2
3
4
5
6
7
8
9
1-Seawater Intake (From Sterndrive)
2-Seawater Pump
3-Power Steering Cooler, If Equipped
4-Fuel Cooler (EFI Models)
5-Thermostat Housing and Cover Assembly
6-Engine Water Circulating Pump
7-Engine Block and Cylinder Head Assembly
8-Exhaust Manifold, Typical
9-Restrictor Gasket
10 - Exhaust Elbow Assembly, Typical
11 - Water Flow Overboard
To Next Page
