GASOLINE ENGINES BRAVO MODELS
Page 44 of 116
Connecting Speedometer Pickup
IMPORTANT: Do not remove plug from speedometer pickup tube fitting unless
connection is to be utilized, as water leakage into boat will occur, especially while
underway.

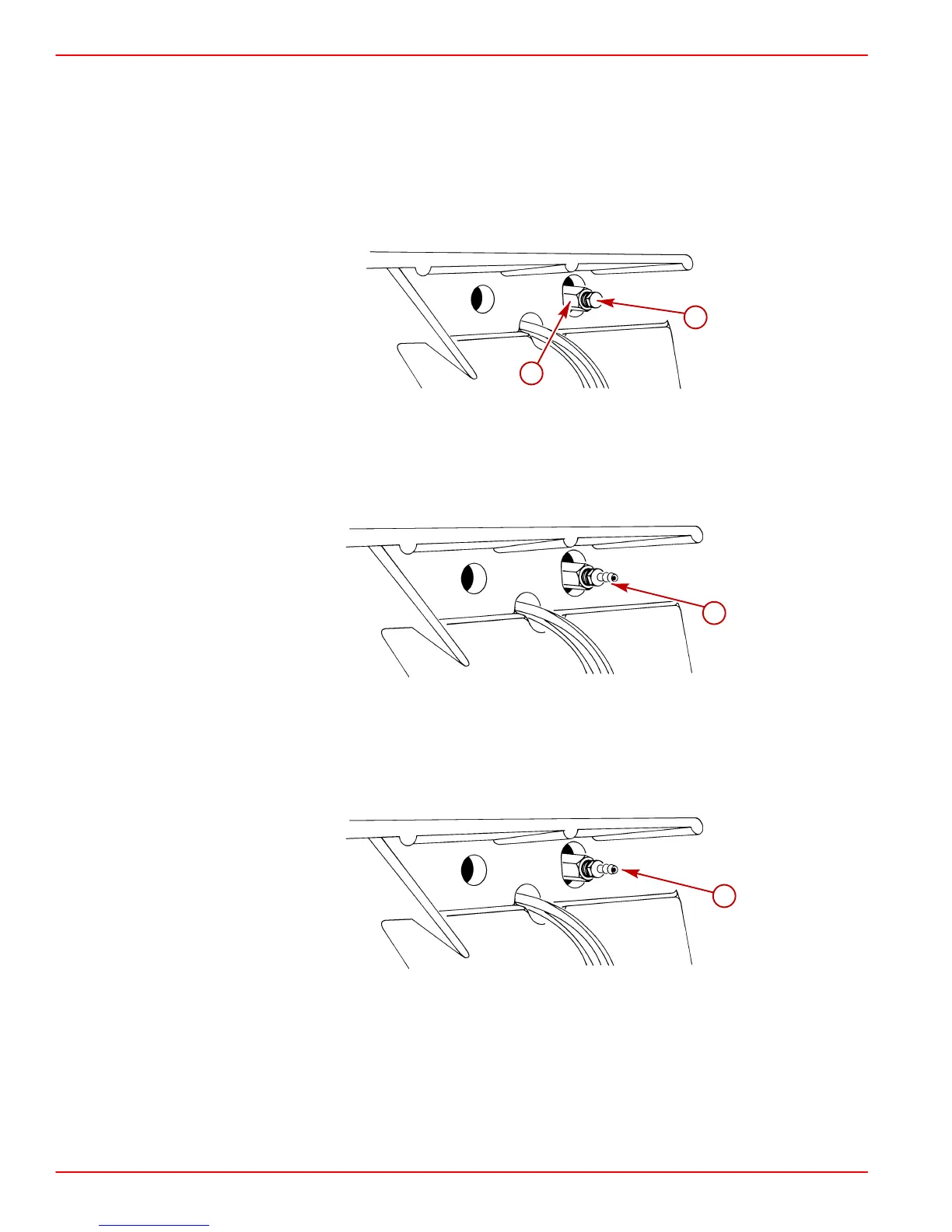

The connection for the speedometer pickup can be accessed through a hole and fitting in
the inner transom plate.
1. Remove plug from speedometer pickup tube fitting.
70037
a
b
a-Plug
b-Inner Transom Plate Fitting
2. Apply Perfect Seal to threads of barb fitting. Install and torque to 13 Ib-in. (1.5 Nm).
70015
a
a-Barb Fitting
3. Connect a 5/32 in. (4 mm) speedometer hose (not provided) hose from speedometer
to barb fitting. Secure hose with cable tie.
70015
a
a-5/32 in. (4 mm) Inner Diameter Speedometer Hose Fitting
4. Secure the hose to the transom with the hose clip and screw that are provided in the
parts bag.
