GASOLINE ENGINES BRAVO MODELS
Page 49 of 116
Installing Engine/Alignment
NOTE: An engine mount drilling fixture (91-806794A1) can be used to align and adjust en-
gine mounts. Refer to instructions with fixture for proper use.
1. Attach a suitable sling to lifting eyes on engine and adjust so that engine is level when
suspended.
CAUTION
Center lifting eye (if equipped), on top of thermostat housing, is used for engine
alignment only. Do not use to lift entire engine.
74498
50682
22032
!
CAUTION
74760
74754
a
b
b
c
d
e
f
h
g
k
j
i

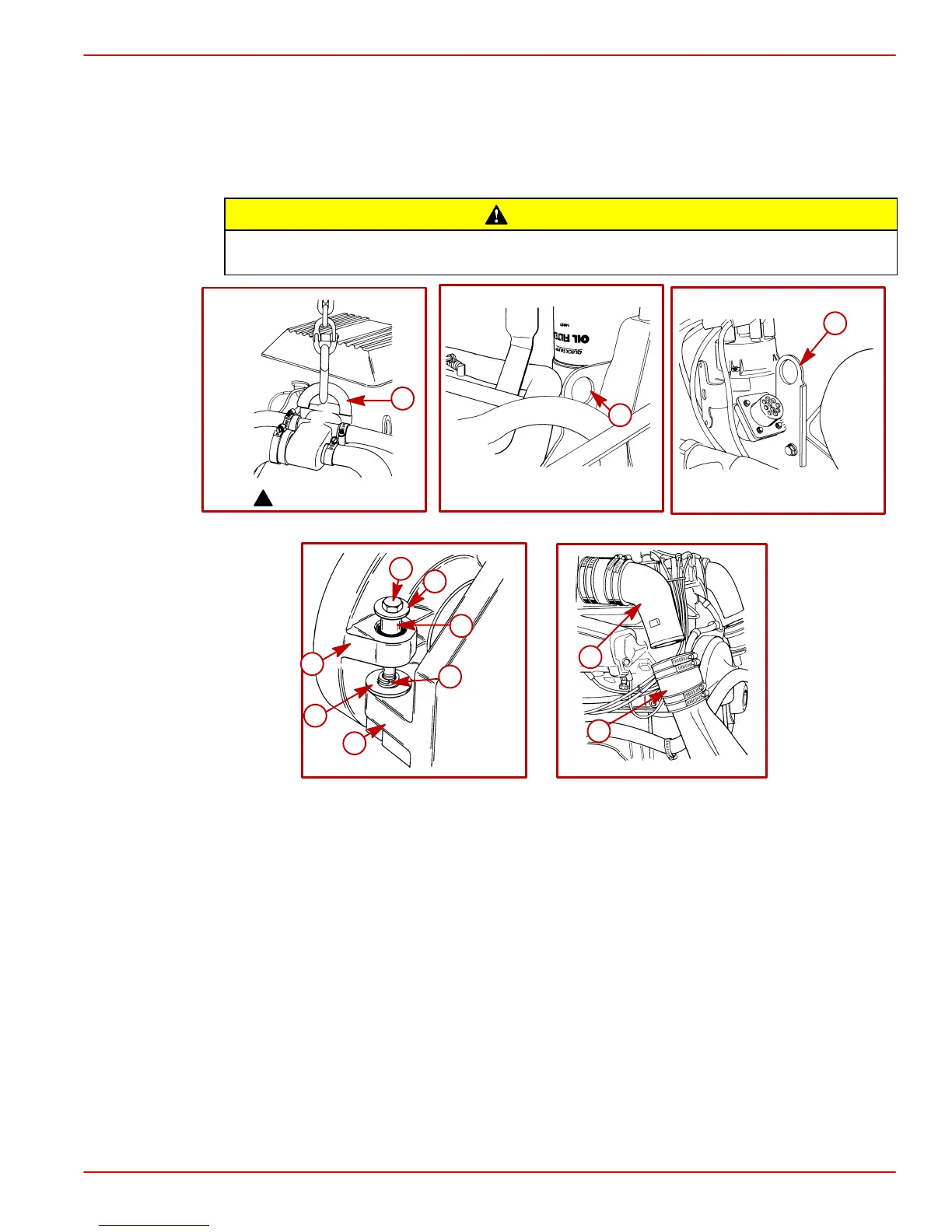

V6 and V8 Models
a-Center Lifting Eye (see CAUTION above)
b-Engine Lifting Eyes
c-Rear Engine Mount
d-Inner Transom Plate Mount
e-Bolt
f-Washer
g-Spacer
h-Fiber Washer
i-Double-Wound Lockwasher
j-Exhaust Pipe Bellows
k-Exhaust Tube
2. Lift engine into position (in boat) using an overhead hoist.
3. Align rear engine mounts with inner transom plate mounts while simultaneously aligning
exhaust tube with exhaust pipe bellows.
