GASOLINE ENGINES BRAVO MODELS
Page 48 of 116
1. Depending upon boat configuration, follow instructions a. or b.:

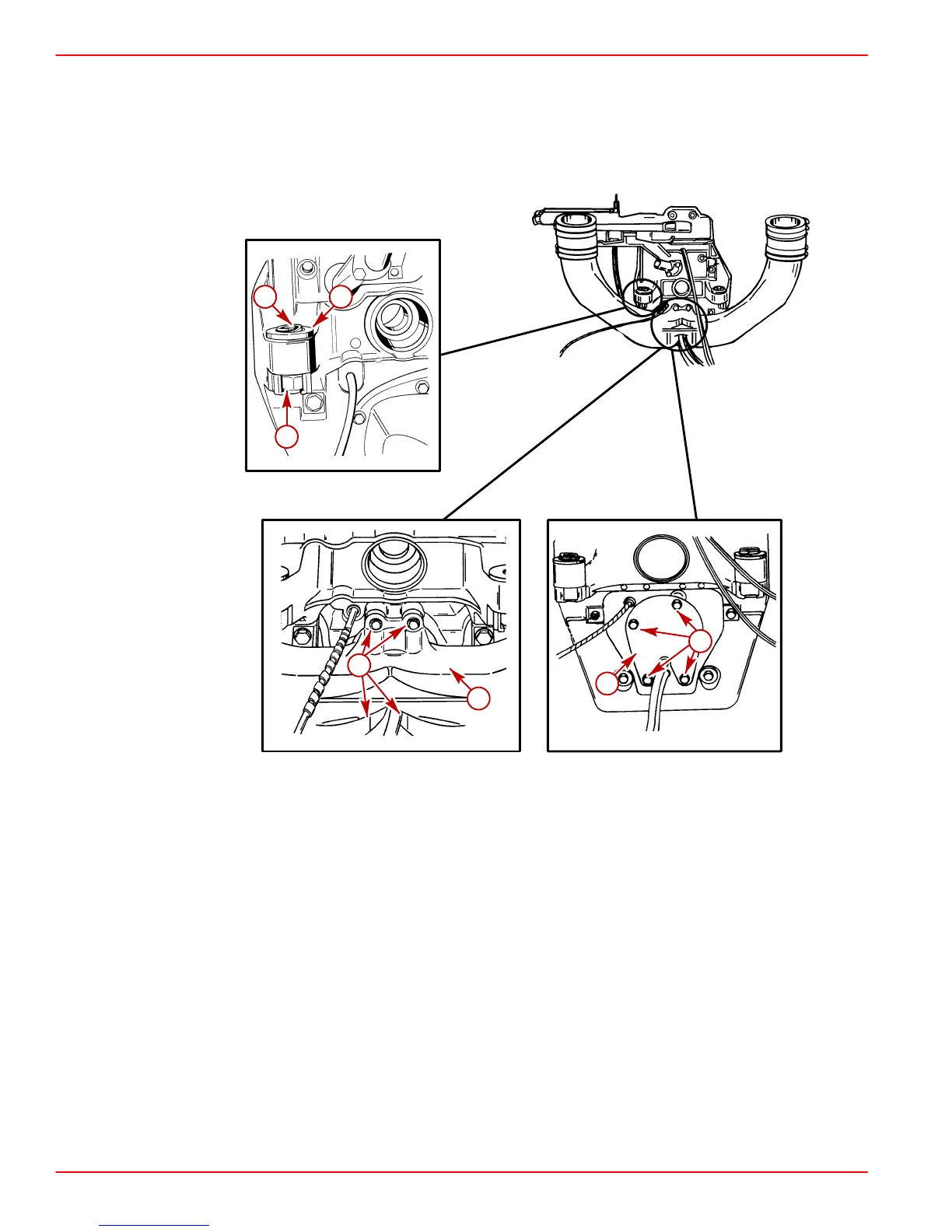

a. Through the Prop Exhaust Models: Install exhaust pipe assembly as shown,
using four bolts and lockwashers. Torque bolts to 23 lb-ft (31 Nm).
b. Through the Transom Exhaust Models: Install block off plate as shown, using four
bolts and lockwashers. Torque bolts to 23 lb-ft (31 Nm).
22057
50684
50628
22028
d
c
e
b
a
f
b
a-Exhaust Pipe
b-Bolts And Lockwashers (4)
c-Fiber Washers
d-Double-Wound Lockwashers
e-Locknuts
f-Block-Off Plate
NOTE: Through the Transom exhaust fittings can be installed at this time.
2. Position rear engine mount attaching hardware on inner transom plate mounts as
shown.
