5. Remove shipping plug from coupler and lubricate splines with Quicksilver Engine Cou-
pler Spline Grease, P/N 816391A4.
6. Loosen hose clamps and remove exhaust pipe and bellows from engine.

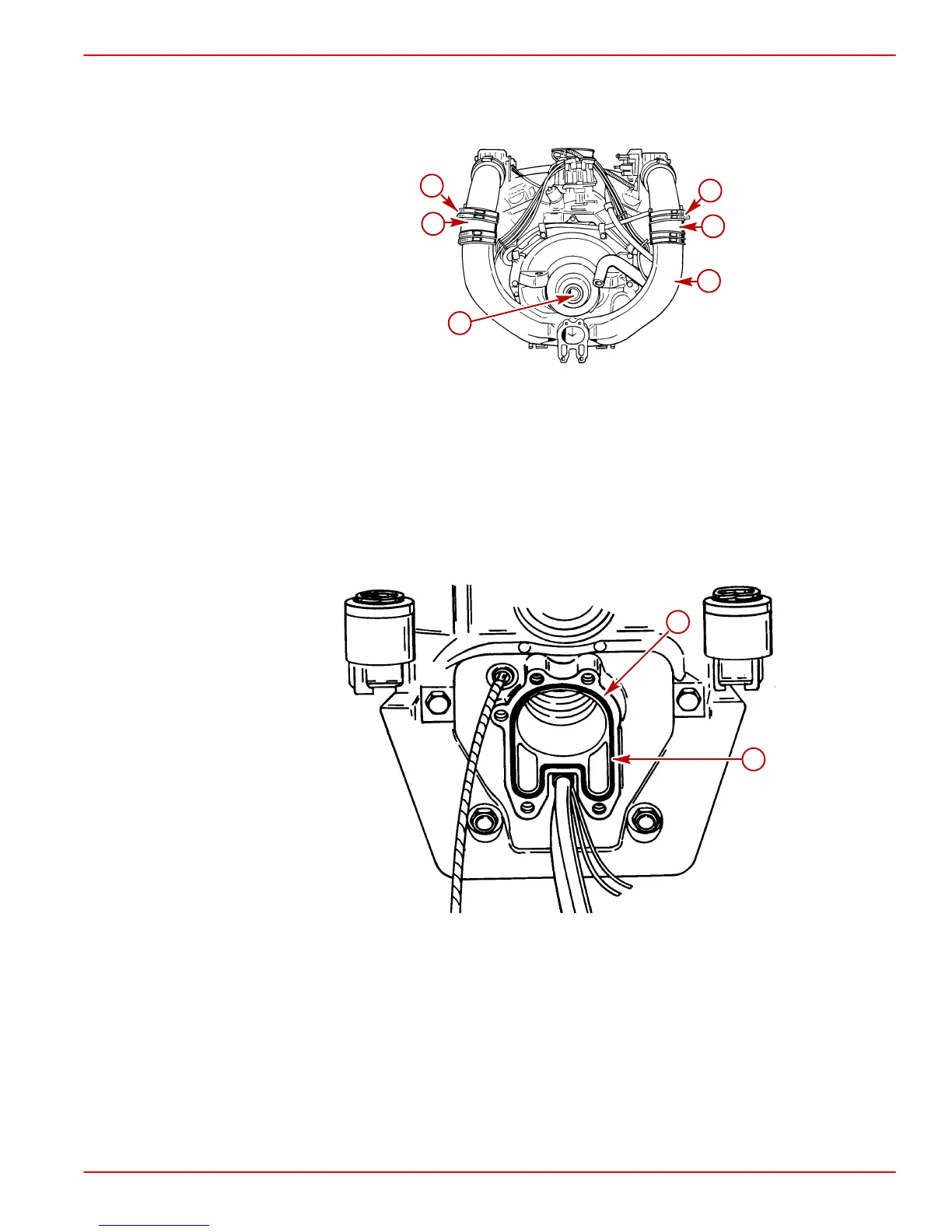

50724
c
b
a
d
b
c
a-Exhaust Pipe
b-Bellows
c-Clamps
d-Shipping Plug
Transom Preparation
IMPORTANT: Exhaust pipe and gimbal housing mating surfaces must be clean and
free of nicks and scratches and O-ring must be properly seated in groove, or water
and exhaust may leak into boat.
22059
b
a
a-Gimbal Housing Mating Surface
b-O-Ring
