Installing Inner Transom Plate
1. Insert wires, hoses and shift cable through appropriate openings in inner transom plate.
2. Position gimbal housing on transom and hold in place.

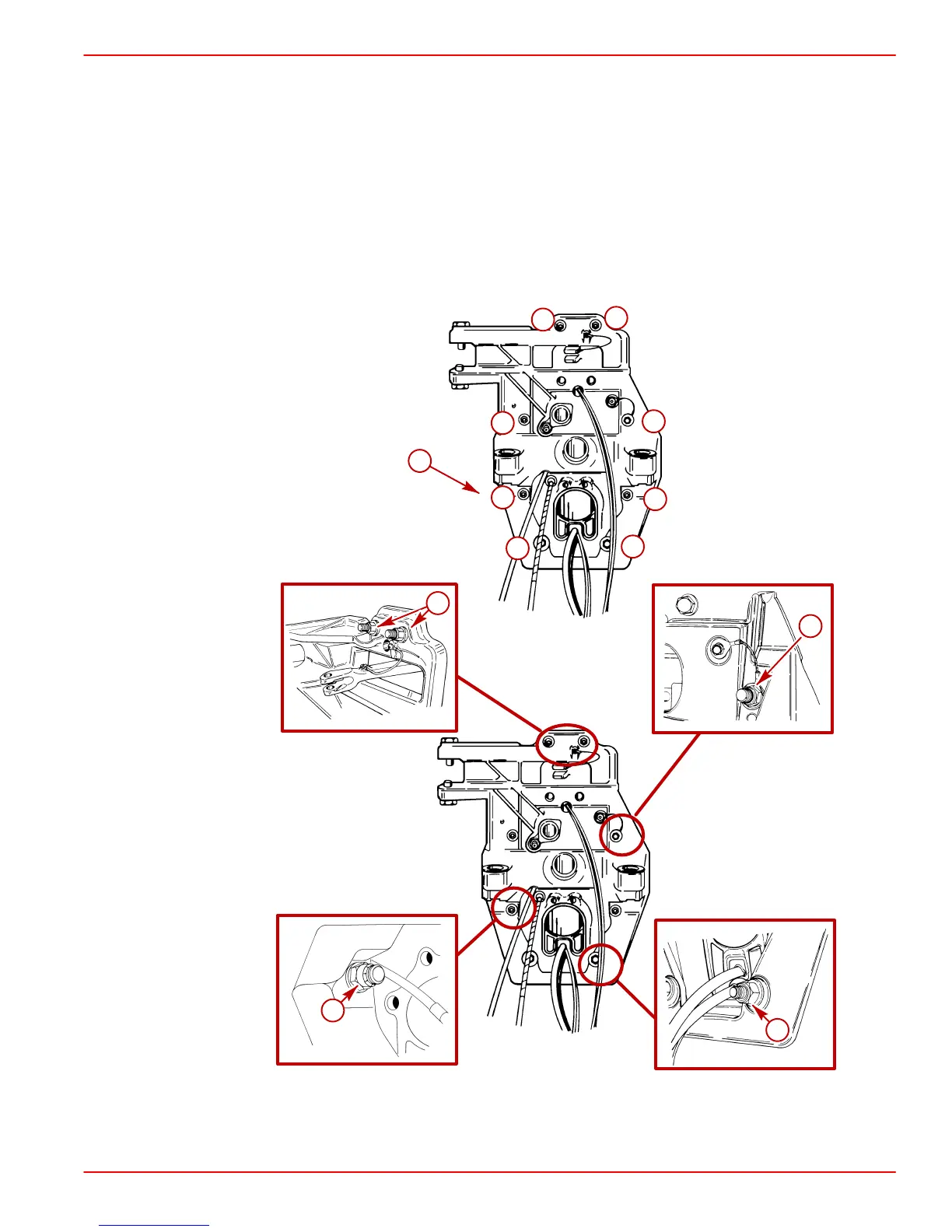

IMPORTANT: Tightening the transom assembly fasteners using an X-pattern torque
sequence as defined in the illustration below. Tighten in small increments and go
around the pattern several times until the proper torque is achieved.
3. Secure transom assembly with hardware as shown. Torque to 23 lb-ft (31 Nm).
IMPORTANT: Steering lever continuity circuit wire must be positioned as shown to
avoid stressing wire when steering lever moves.
71626
71628
70005
71629
71627
a
a
a
a
1
2
3
4
5
6
7
8
b
a-Locknuts And Flat Washers (8).
b-Torque Sequence
