GASOLINE ENGINES BRAVO MODELS
Page 103 of 116

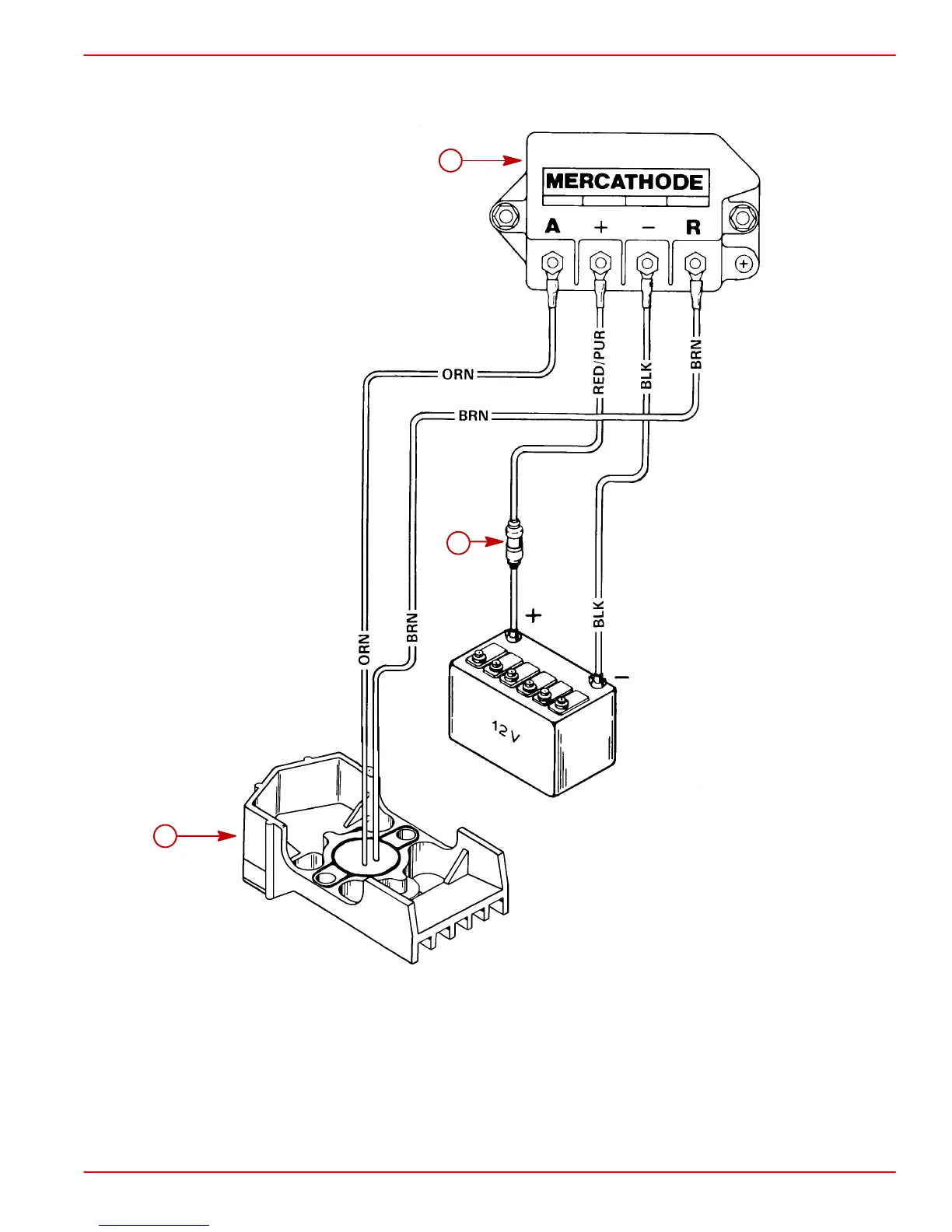

MerCathode System Wiring Diagram
BLK = BLACK
BLU = BLUE
BRN= BROWN
GRY= GRAY
GRN= GREEN
ORN= ORANGE
PNK = PINK
PUR= PURPLE
RED= RED
TAN = TAN
WHT= WHITE
YEL = YELLOW
LT OR LIT=LIGHT
DRK= DARK
73596
a
b
c
a-Controller
b-20 Amp Fuse
c-Electrode
