Engine Installation
Driveshaft Extension Models
If your power package is equipped with a driveshaft extension, refer to the Driveshaft Exten-
sion Installation Instructions (90-862858) included with your engine package.
Engine Preparation
1. Remove and read all tags attached to engine.
2. Remove all hardware that secures engine to shipping container.
3. Connect battery cables to engine. Be sure to observe the following:
a. Make sure that grounding stud and starter solenoid terminal are free of paint or any
other material that could cause a poor electrical connection.
b. After battery cables are connected, apply a thin coat of Liquid Neoprene to the termi-
nals.
c. Be sure to slide rubber boot over positive (+) terminal after making connection.
4. Drape battery cables over top of engine to prevent interference during installation.
IMPORTANT: There is a fuse located at the starter solenoid. DO NOT remove this fuse.
The positive battery cable must be connected to the same stud as the fuse.

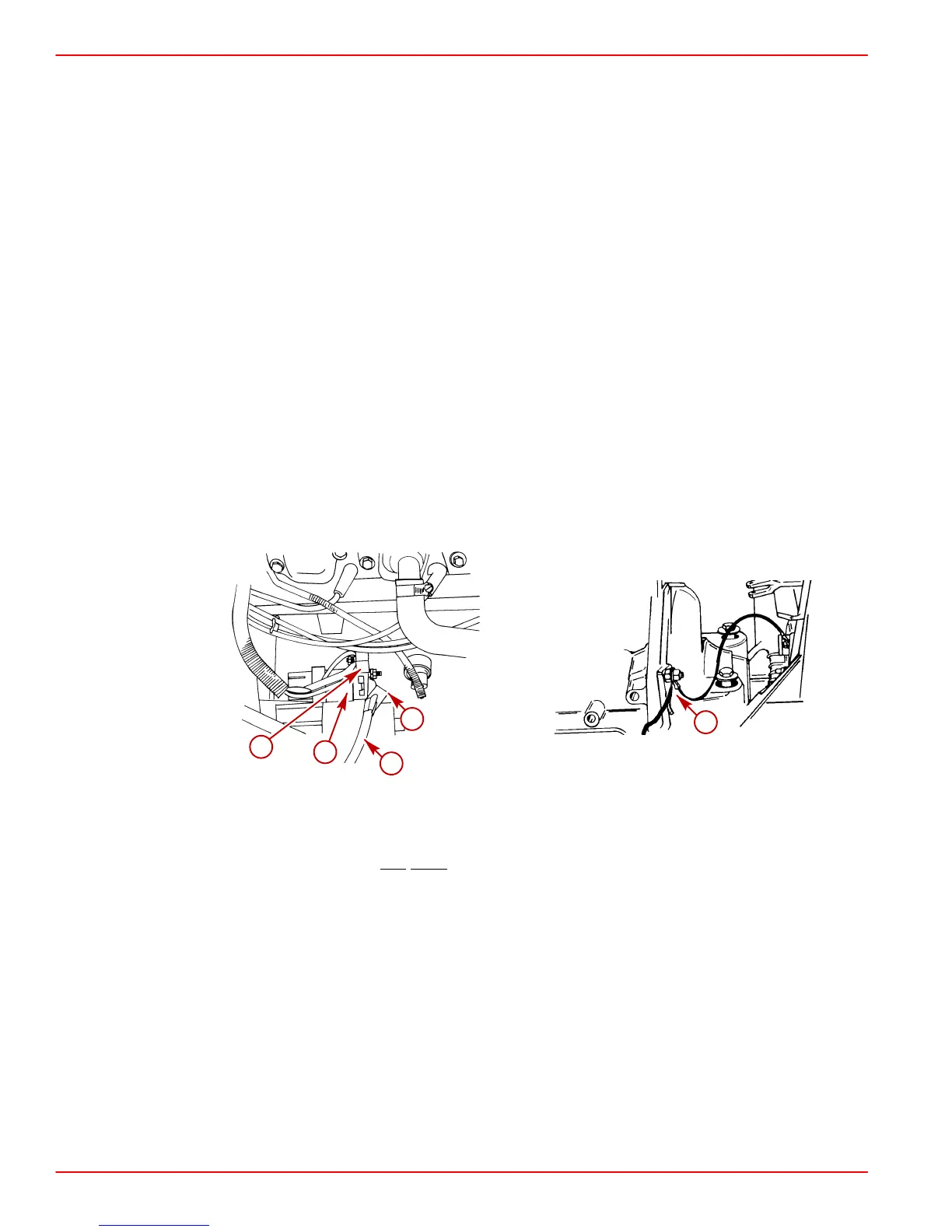

72052
71651
a
b
c
d
a
a-Negative (–) Battery Cable
b-Positive (+) Battery Cable
c-Starter Solenoid
d-90 Amp Fuse - DO
NOT Remove
e-Rubber Boot
