Coolant Recovery System (If Equipped)

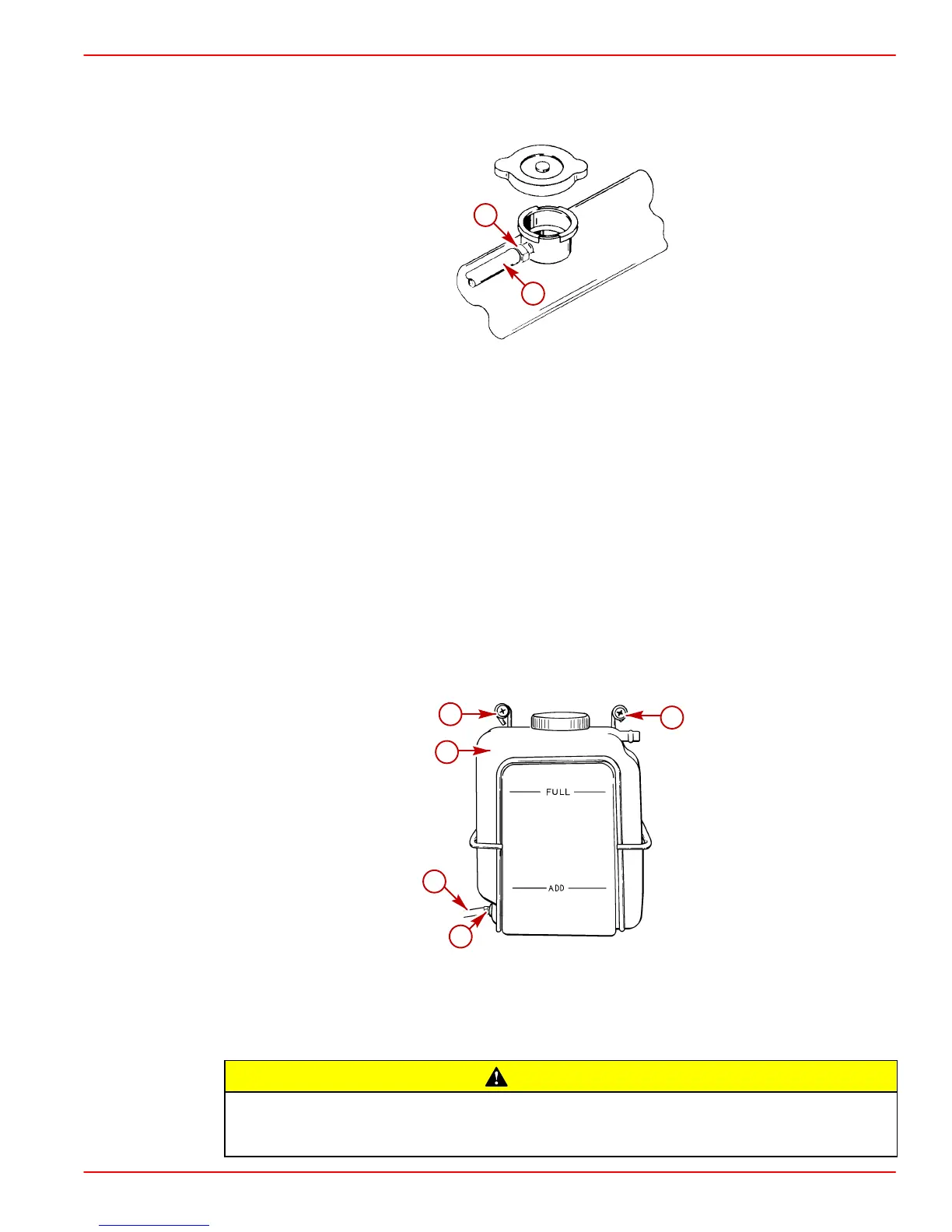

1. Connect plastic tubing to bayonet fitting on heat exchanger. Secure with tubing clamp
provided.
70548
b
a
a-Plastic Tubing
b-Tubing Clamp
2. Select a mounting location for coolant recovery bottle and mounting bracket that meets
all of the following:
a. Within limits of clear plastic tubing.
b. Level with heat exchanger fill neck if possible.
c. Accessible for observing coolant level and filling.
3. Mount coolant recovery bottle and mounting bracket in desired location using two
3/4 in. long screws and flat washers.
4. Route plastic tubing to recovery bottle. Ensure that tubing is positioned away from any
moving parts. Cut plastic tubing as required and connect to bottom connection on recov-
ery bottle and secure with tubing clamp provided.
5. Fasten plastic tubing to boat, as necessary, with 2 hose clips and 1/2 in. long screws
(provided).
71712
b
b
a
c
d
a-Recovery Bottle and Mounting Bracket
b-Screws and Flat Washers
c-Plastic Tubing
d-Tubing Clamp
CAUTION
Avoid engine overheating and subsequent damage to engine. The coolant recovery
system will not operate properly without proper sealing. Plastic tubing MUST seal
completely at connections.
