GASOLINE ENGINES BRAVO MODELS
Page 52 of 116
8. Recheck alignment with alignment tool. Tool must enter coupling splines freely. If not,
readjust front mounts.
9. When alignment is correct, tighten locknut securely. Recheck alignment.
10. Bend tab down on adjusting nut.
71649
a
e
b
d
c

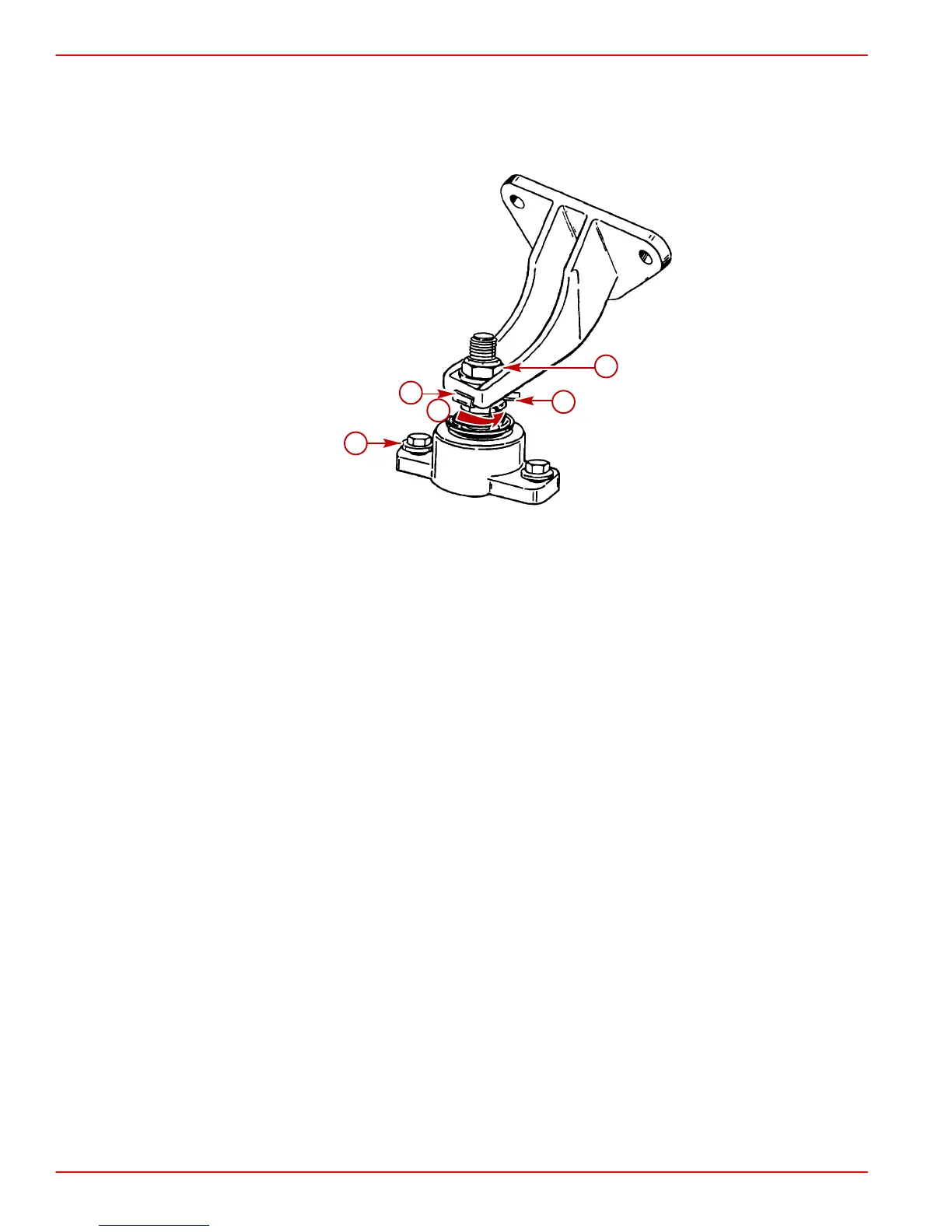

a-Nut And Lockwasher
b-Adjustment Nut
c-Turn Adjustment Nut In This Direction (Counterclockwise) To Raise Front Of
Engine
d-Slotted Hole Toward Front Of Engine. Attach Mounts To Stringers Using 3/8 In.
(9mm) Lag Bolts
e-Tab Washer
11. Remove alignment tool and fold bell housing dust cover flap back into place and tape
shut for boat shipment. Dust cover flap will have to be removed before operating engine.
