GASOLINE ENGINES BRAVO MODELS
Page 51 of 116
c. If the tool does not fit, remove it and carefully raise or lower the front end of the engine
as necessary, and attempt to insert the alignment tool.
d. Repeat step c. until the alignment tool installs easily (SLIDES FREELY WITH TWO
FINGERS) all the way into and out of engine coupler splines. Do not check by
turning.

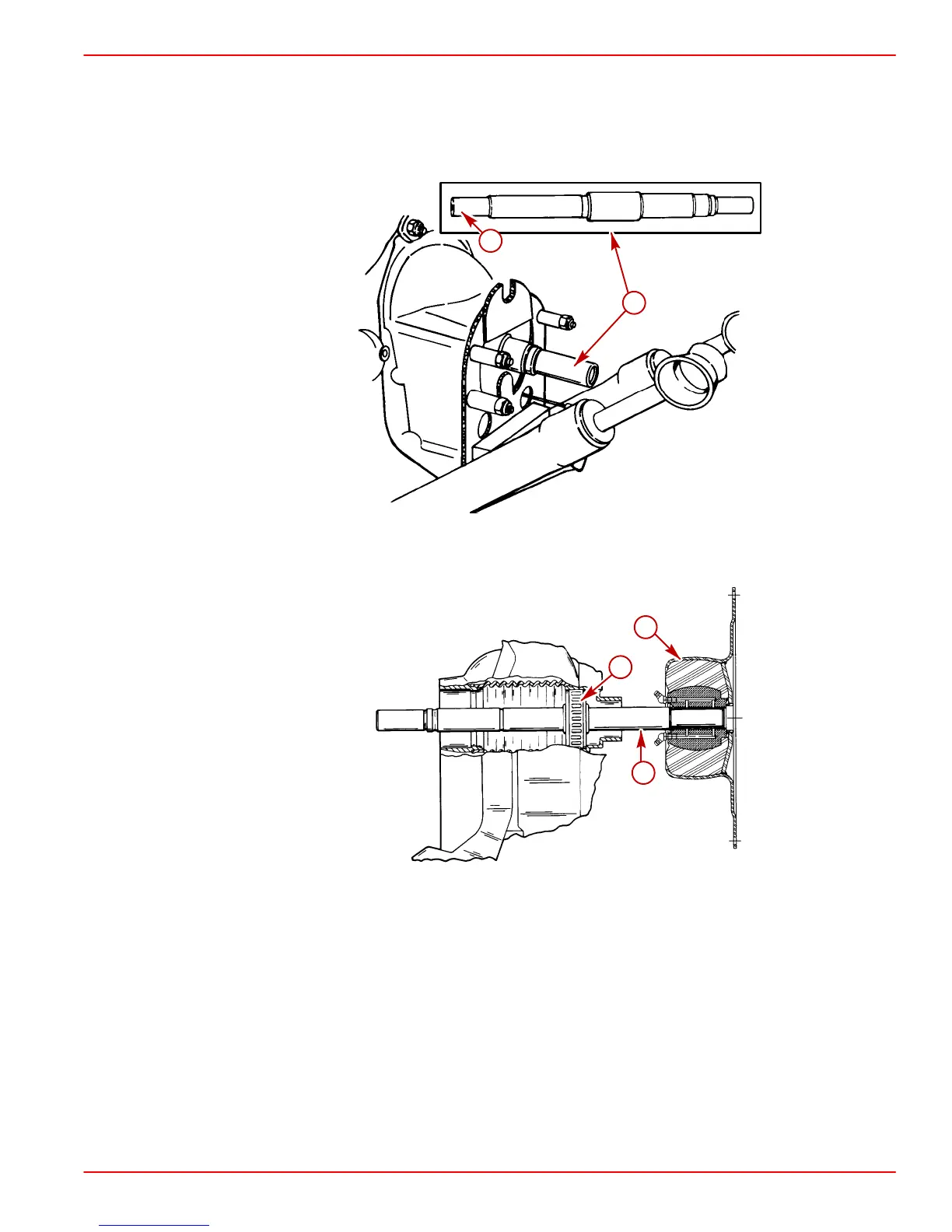

22029
a
b
a-Alignment Tool (Use Only Recommended Alignment Tool)
b-Insert This End Of Alignment Tool Through Gimbal Housing Assembly
27647
c
b
a
a-Alignment Tool
b-Gimbal Bearing
c-Engine Coupler
IMPORTANT: Finished boat stringer must position engine so that a minimum mount
adjustment exists after front mount is adjusted down to stringer. This allows for
future adjustments.
IMPORTANT: Turn both front engine mount adjustment nuts an equal amount in
direction required to align engine.
6. Adjust front engine mounts until they rest on boat stringers.
7. Relieve hoist tension entirely and fasten both front mounts to boat stringer using appro-
priate hardware.
