GASOLINE ENGINES BRAVO MODELS
Page 30 of 116
Throttle/Shift Remote Control and Cables
To ensure proper shift and throttle operation, we recommend the use of a Quicksilver remote
control and cables. Refer to “Quicksilver Accessories Guide” for selection. However, if a
control other than Quicksilver is to be used, control must provide a shift cable travel (at the
shift plate end) of 2-7/8 in. (73 mm) to 3-1/8 in. (80 mm) with a 15-20 lb. (6.8-9 kg) load
applied to the cable end guide.
Steering Helm and Cable
Transom assembly is shipped with the steering cable guide tube preset for cables with end
dimensions that comply with ABYC standards as outlined in the NMMA certification hand-
book. The steering cable coupler nut must also have a means of locking it to the guide tube
as specified in ABYC requirements.
WARNING
Failure to use a steering cable locking device could cause loss of steering, which
could cause damage to the boat and/or injury.

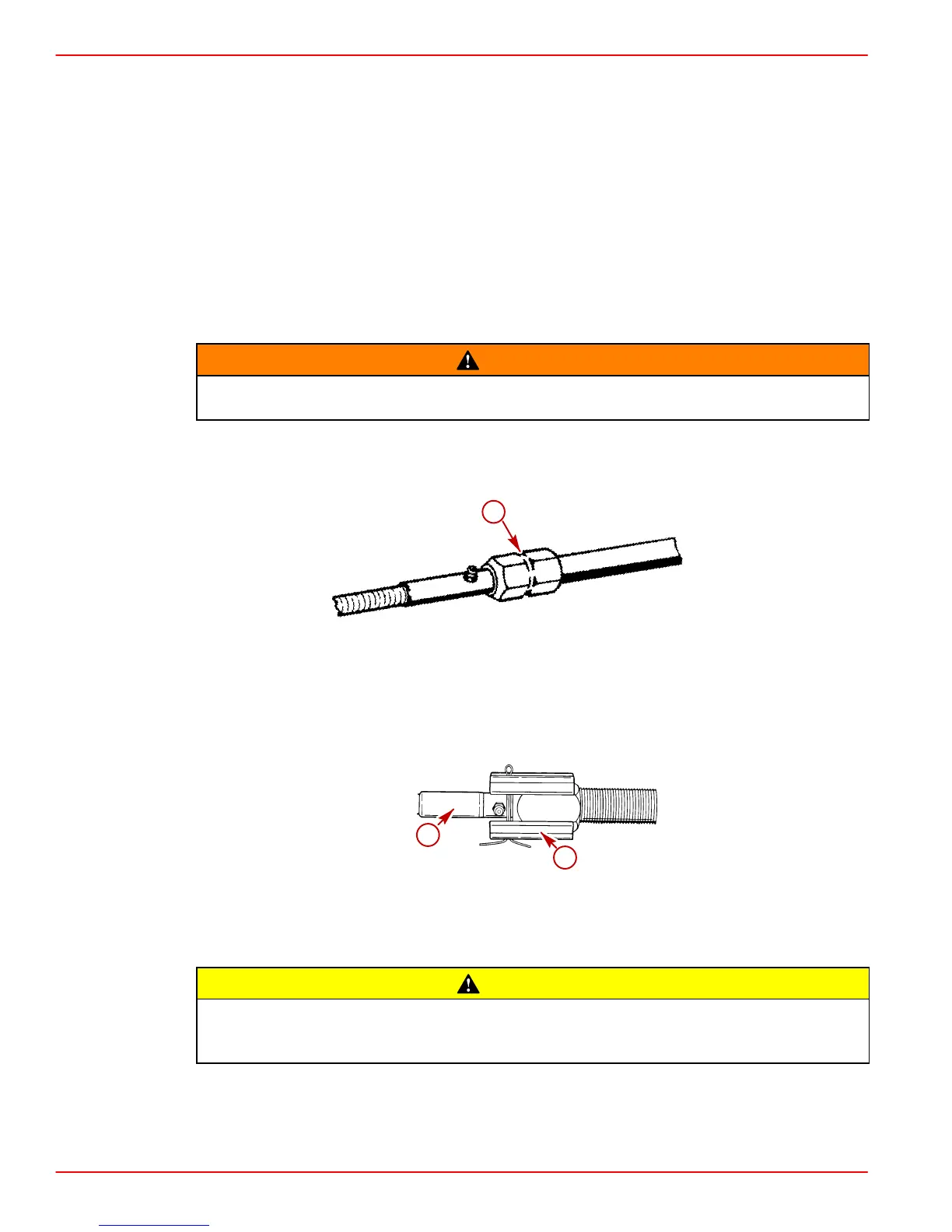

NOTE: All current production Quicksilver Ride Guide steering cables have a self-locking
coupler nut and do not require an external locking device. (Other cable manufacturers also
make cables with self-locking coupler nut.)
22060
a
a-Quicksilver Ride Guide Steering Cable Self-Locking Coupler Nut (Identified by
Groove)
IMPORTANT: If using a steering cable that does not have a self-locking coupler nut,
an external locking device must be used.
b
a
Example Of External Locking Device
a-Steering Cable
b-Locking Sleeve
CAUTION
POWER STEERING EQUIPPED UNITS ONLY: If steering cable with improper dimen-
sions is installed, severe damage to transom assembly and/or steering system may
result.
1. Steering cable must be the correct length, particularly when installed in larger boats.
2. Avoid sharp bends, kinks or loops in cable.
3. Fully extended steering cable end dimension must be as shown.
