GASOLINE ENGINES BRAVO MODELS
Page 31 of 116

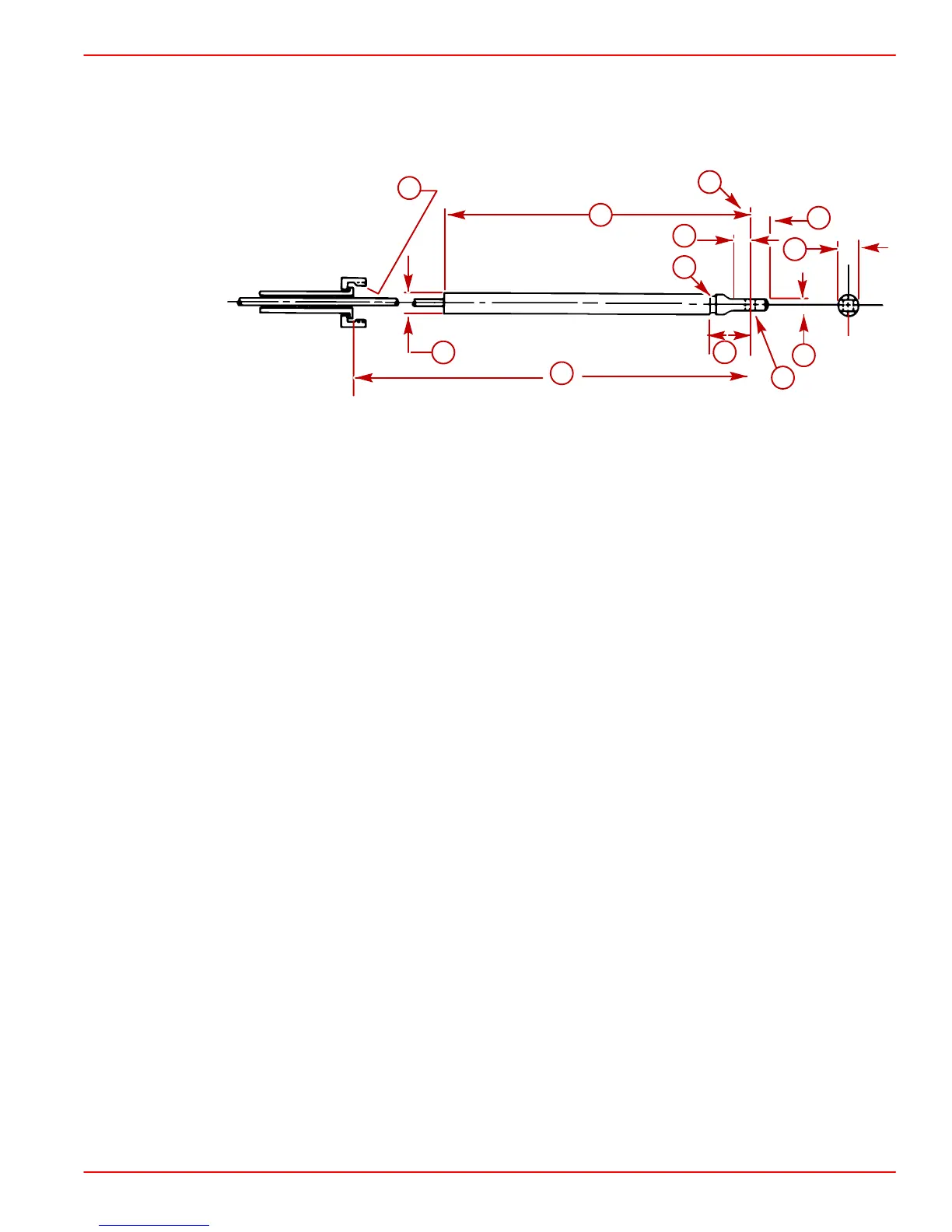

STEERING CABLE SPECIFICATIONS
IMPORTANT: Power steering pump lugging (squealing) in a hard right turn (against
lock) may mean a steering cable has been installed that does not have the correct
dimensions.
21435
C
L
a
b
c
d
g
h
i
l
e
j
f
k
a-Coupler Nut - 7/8 - 14 UNF - 28 Thread
b-11-3/4 in. (298 mm) Min.
c-Interface Point
d-1/2 in. (12.7 mm) Max.
e-27/64 in. (10.7 mm) Min. Flat
f-7/64 in. (3.1 mm) Min. Radius
g-5/8 in. (15.9 mm) Max. Diameter End Fitting
h-3/8 in. (9.5 mm)
i-3/8 in. (9.8 mm) Diameter Through Hole (Chamfered Each Side)
j-1-3/8 in. (34.9 mm) Max.
k-5/8 in. (15.9 mm) Diameter Tube
l-Cable Travel:
Mid-Travel Position - 16-7/8 in. (429 mm)
Total Travel To Be 8 in. (203 mm) Min. to 9 in (228 mm) Max.
Travel Each Side of Mid-Travel Position - 4 in. (102 mm ) Min.,
4-1/2 in. (114 mm) Max.
