GASOLINE ENGINES BRAVO MODELS
Page 100 of 116

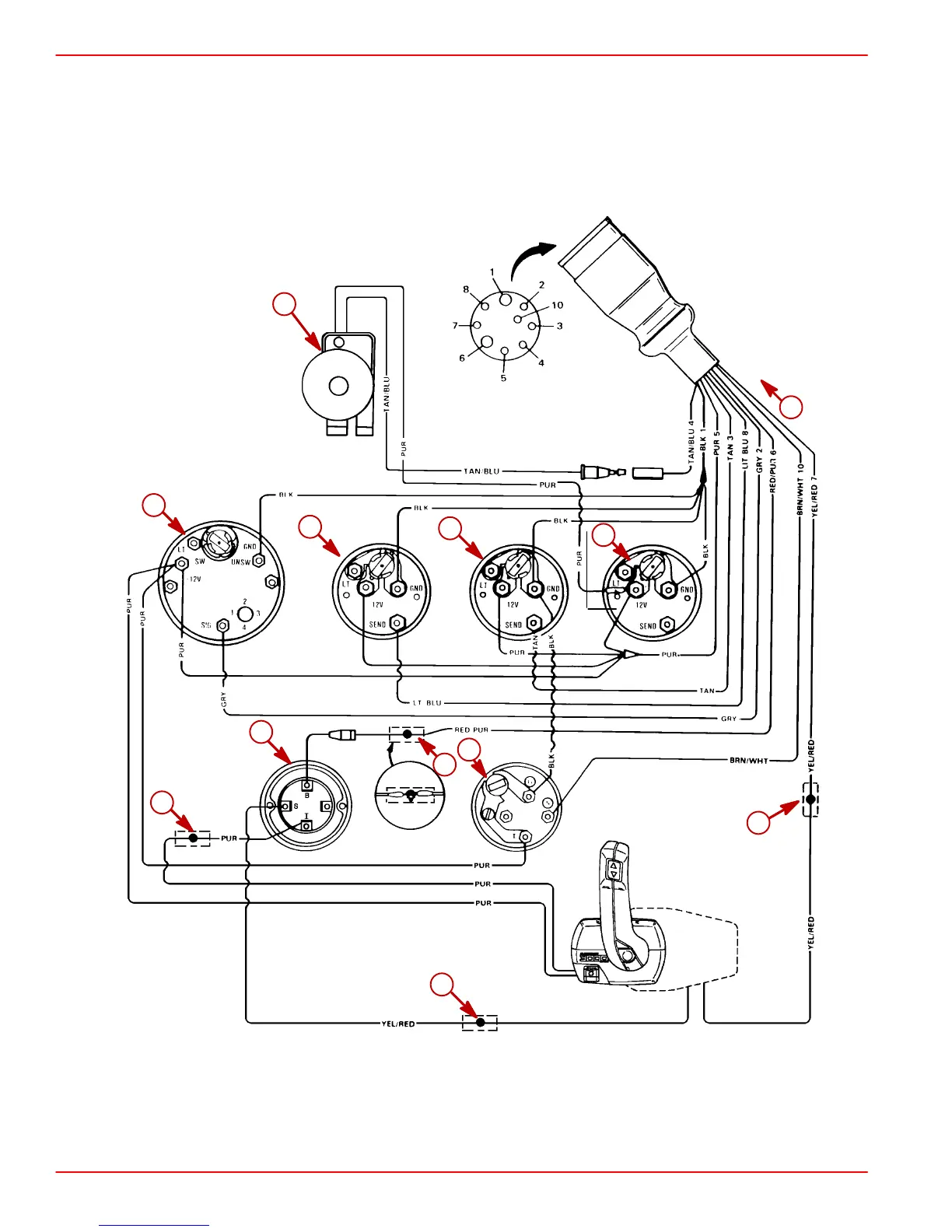

Quicksilver Instrumentation Wiring Diagrams
MCM Gasoline Engine
SINGLE STATION INSTALLATIONS - TYPICAL
BLK = BLACK
BLU = BLUE
BRN = BROWN
GRY = GRAY
GRN = GREEN
ORN = ORANGE
PNK = PINK
PUR = PURPLE
RED = RED
TAN = TAN
WHT = WHITE
YEL = YELLOW
LIT OR LT = LIGHT
DRK = DARK
74583
f
h
i
i
i
a
b
c
d
e
j
g
