GASOLINE ENGINES BRAVO MODELS
Page 54 of 116
Engine Connections
IMPORTANT: When routing all wire harnesses and hoses, ensure they are routed and
secured to avoid coming in contact with hot spots on engine or moving parts.

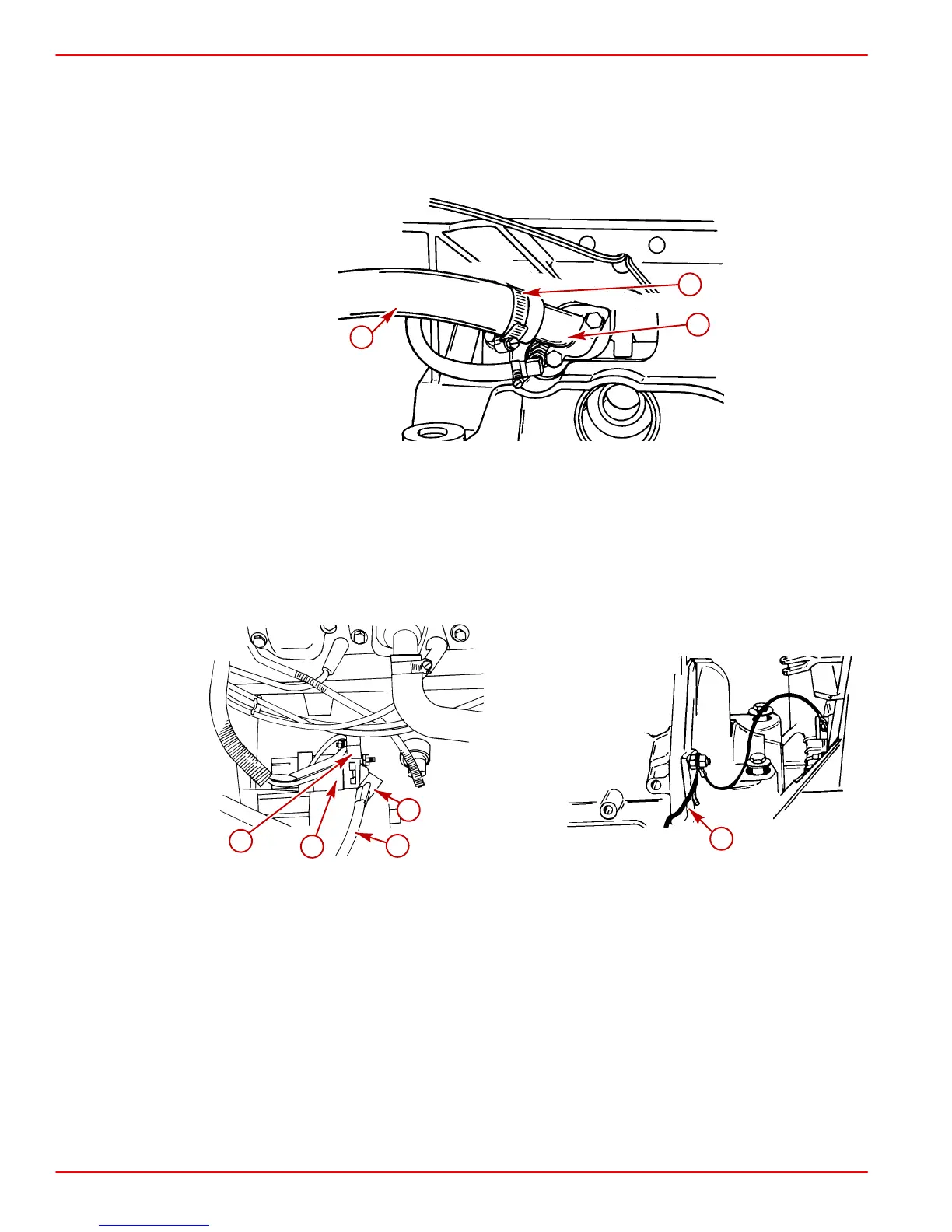

1. Connect water hose to water tube and secure with hose clamp.
72040
a
b
c
a-Water Inlet Fitting
b-Hose
c-Hose Clamp
2. Connect continuity circuit wire from engine to transom assembly.
IMPORTANT: Do not attach any accessory ground (–) wires to transom plate ground
point. Accessory ground wires can only be attached to ground stud on engine.
72052
71651
a
b
c
d
e
a-Rubber Boot
b-Positive (+) Battery Cable
c-Starter Solenoid
d-90 Amp Fuse DO NOT Remove
e-Negative (–) Battery Cable
