Predelivery Preparation
NOTICE
Before starting Predelivery read “General Information” and “Installation Require-
ments” completely.
Once the power package installation is complete, the following final steps should be taken
to prepare power package for delivery to the customer. It is the boat manufacturer’s respon-
sibility to perform these procedures, or to make arrangement with the dealer to have these
procedures completed.
Battery Connection
IMPORTANT: Engine electrical system is negative (–) ground.
1. Connect engine positive (+) battery cable (usually RED) to positive (+) battery terminal.
2. Connect engine negative (-) battery cable (usually BLACK) to negative (-) battery termi-
nal.
3. Connect Power Trim pump BLACK (-) battery cable to negative (-) battery terminal and
pump RED (+) battery cable to positive (+) battery terminal.
4. Make sure that all battery terminal connections are tight, then spray terminals with a bat-
tery connection sealant to help retard corrosion.
Power Trim Pump
NOTE: See 90-863152 for mounting hole template.
IMPORTANT: Check oil level with sterndrive unit in the full down position.
IMPORTANT: Use Quicksilver Power Trim and Steering Fluid, or SAE 10W-30 or
10W-40 engine oil in trim system.

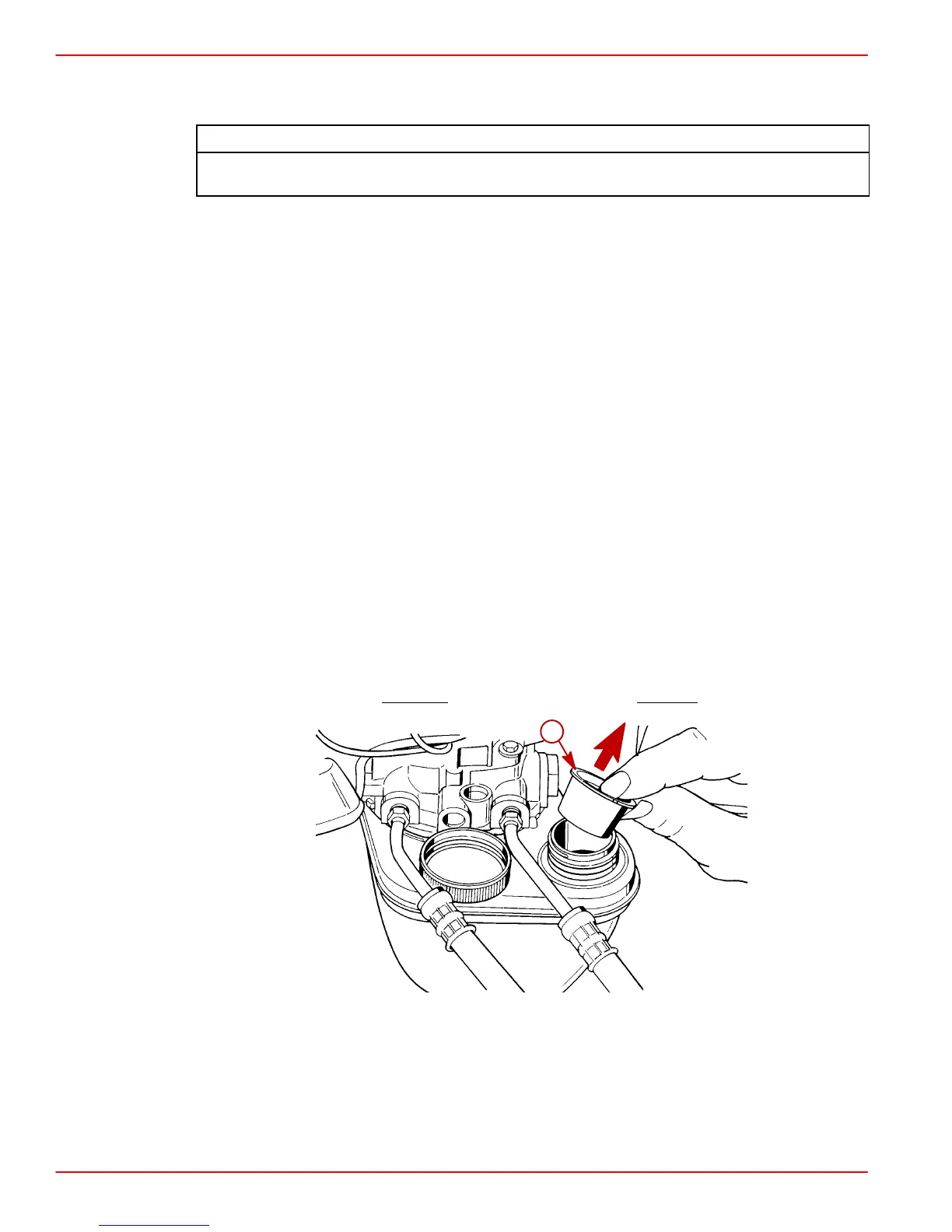

1. Unscrew fill cap and remove
caplug from fill neck and discard. Replace fill cap.
50630
a
a-Caplug
