GASOLINE ENGINES BRAVO MODELS
Page 35 of 116
TAPE MEASURE METHOD
Transom angle must be known, then measure “X” Dimension with tape measure.
1. Determine “X” Dimension from the following chart.
Tape Measure Method Charts
Model
Bravo One / Two / Three
Transom Angle This dimension should only be raised or lowered after proper
testing.
16°
14-5/16 in. (364 mm)
15°
14-1/4 in. (362 mm)
14°
14-3/16 in. (360 mm)
13°
14-1/8 in. (359 mm)
12°
14-1/16 in. (357 mm)
11°
14 in. (356 mm)
10°
13-15/16 (354 mm)

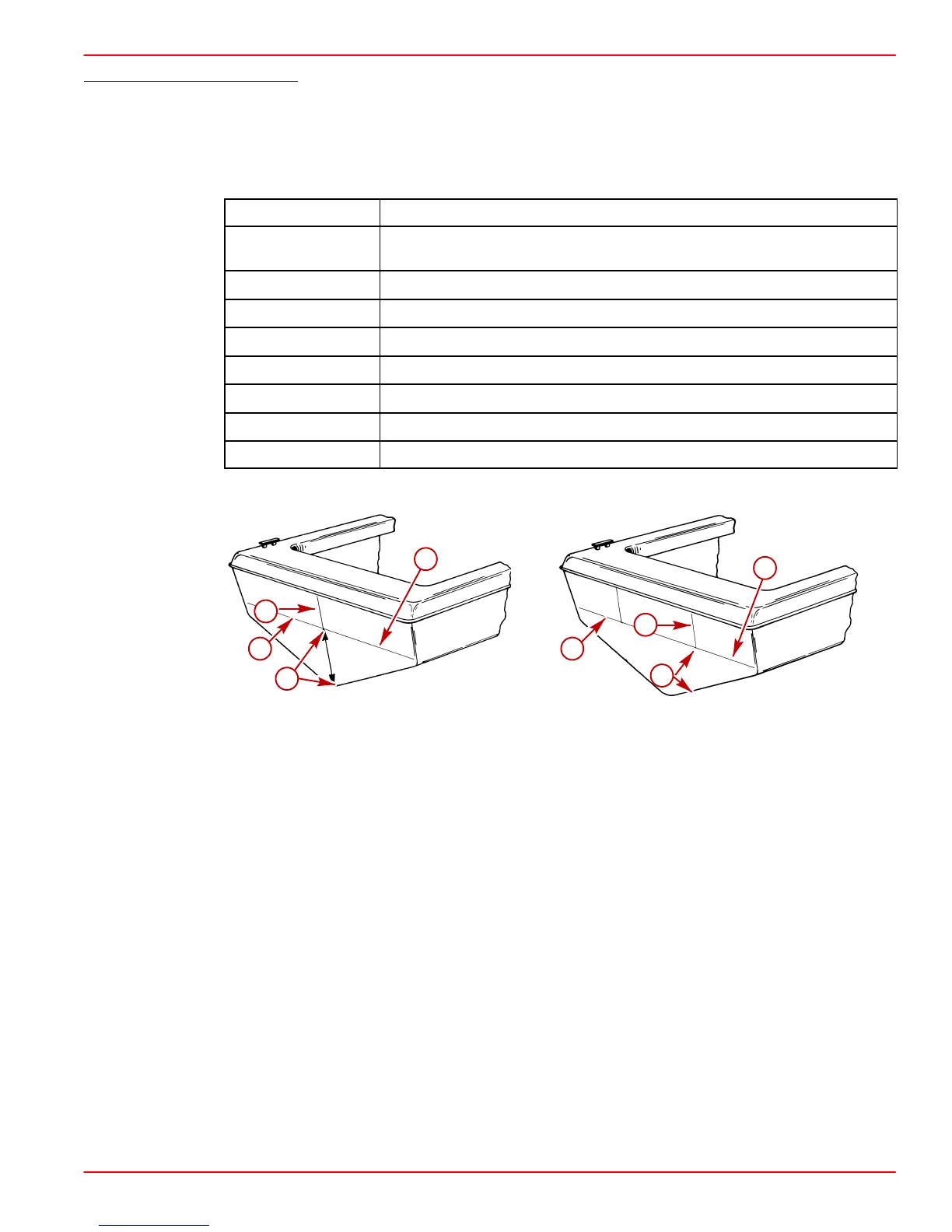

2. Measure and layout horizontal centerlines as shown.
71622
71623
c
d
b
d
b
c
a
a
Single Engine Dual Engine
a-“x” Dimension (From Chart) That Corresponds To Transom Angle - Measure Up
From Boat Bottom With Tape Measure
b-Crankshaft Horizontal Centerline
c-Vertical Centerline
d-Draw A Line Perpendicular To Vertical Centerline At Crankshaft Horizontal
Centerline
To Next Page
