GASOLINE ENGINES BRAVO MODELS
Page 42 of 116
4. Torque pivot bolts to 25 lb-ft (34 Nm). Bend washer tabs against corresponding flats on
bolt heads.

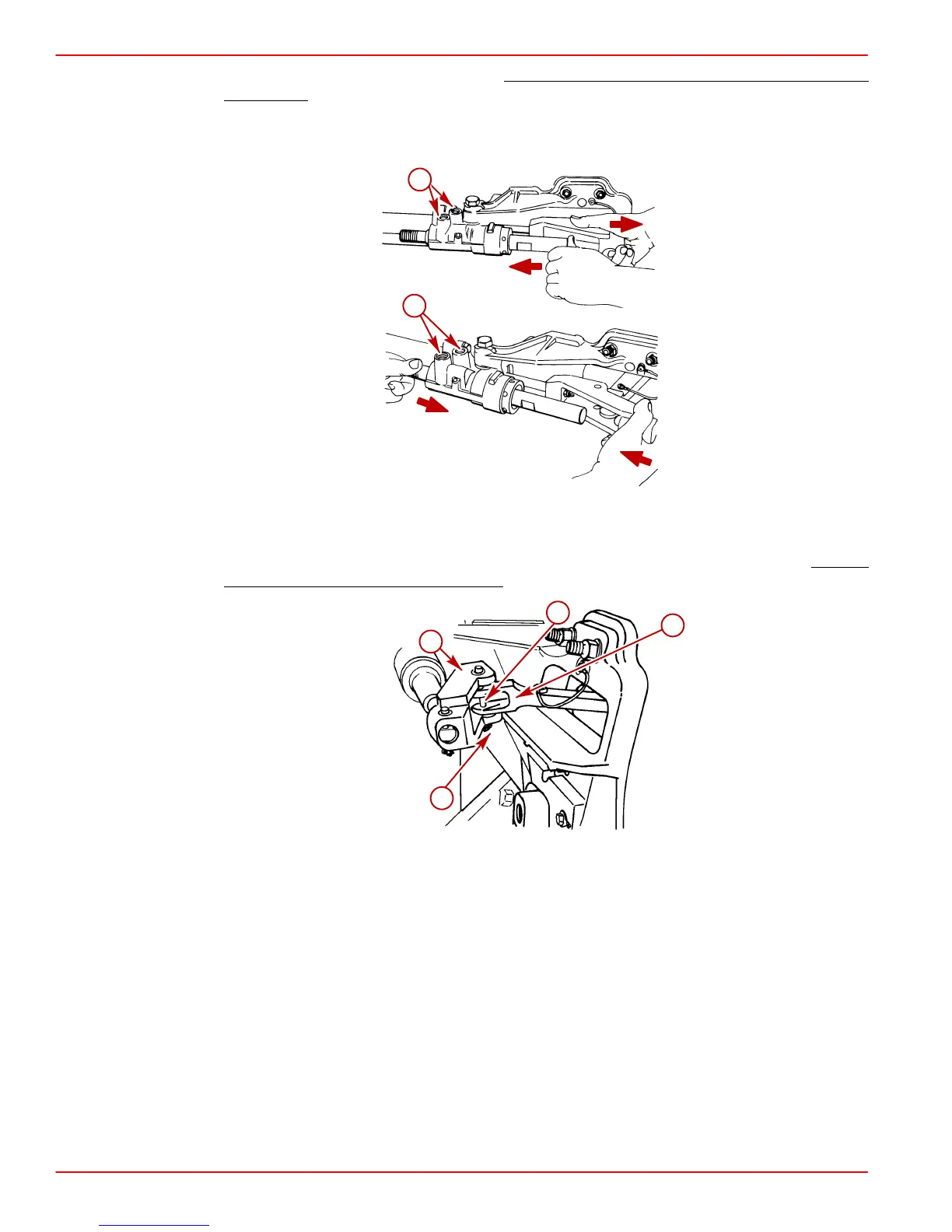

5. The cylinder ram may be stiff and difficult to move when you attempt to pull it out or push
it in for installation. First move the spool assembly in the direction(s) shown below.
74145
74144
a
a
a-Control Valve Ports
6. Connect clevis to steering lever. Lubricate clevis pin with Special Lubricant 101. Be sure
to spread both ends of the cotter pin.
71904
a
b
c
d
a-Clevis
b-Steering Lever
c-Clevis Pin
d-Cotter Pin
