1. Ensure engine is as level as possible to ensure complete draining of cooling system.
2. Remove drain plugs from the following locations, if equipped:
a. Port and starboard side of cylinder block.
b. Bottom of exhaust manifold(s).
c. Starboard side Y-fitting.
d. Fuel cooler.
75432
75081
d
a
b
c

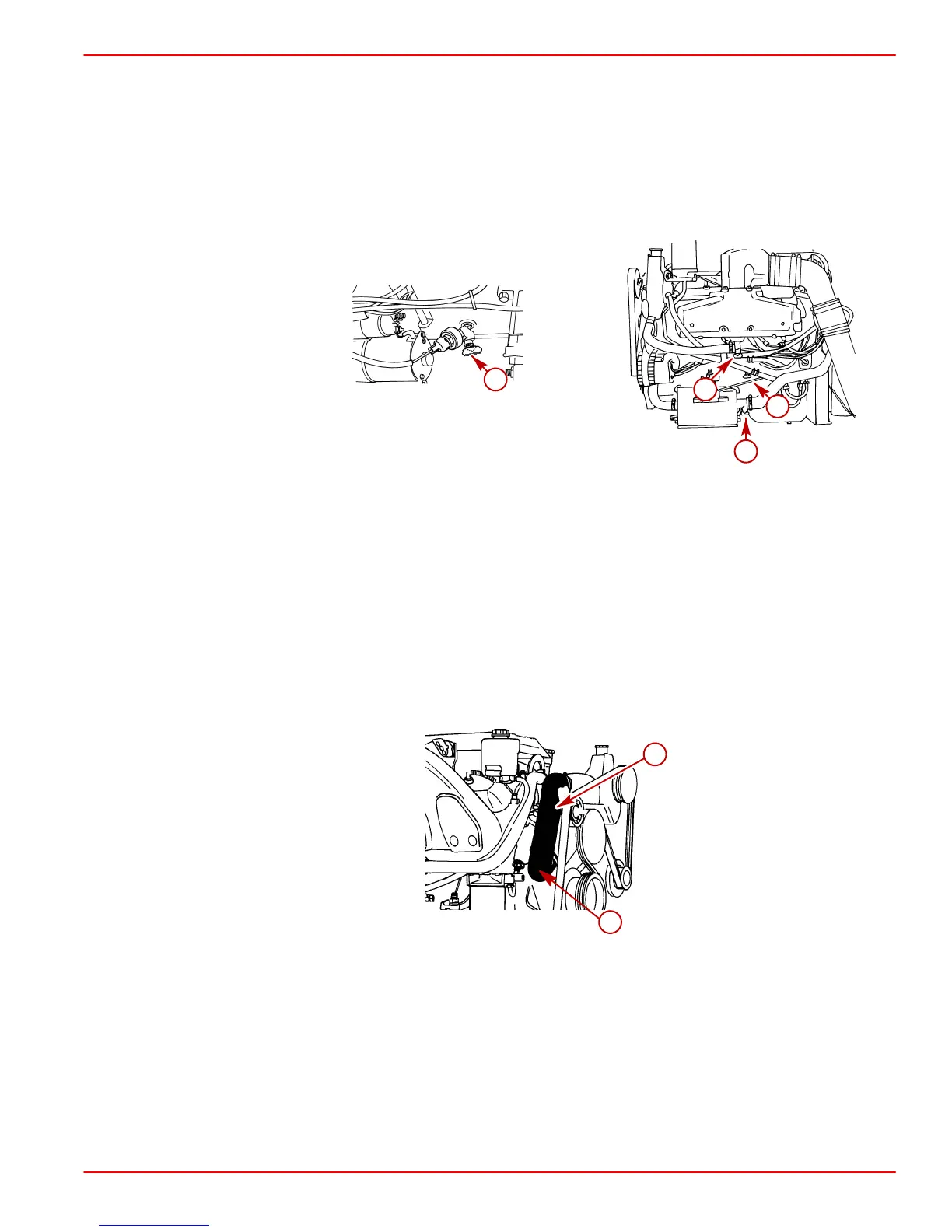

a-Cylinder Block Drain Plugs
b-Exhaust Manifold Drain Plugs
c-Y-Fitting Drain Plug
d-Fuel Cooler Drain Plug
3. Repeatedly clean out drain holes using a stiff piece of wire. Do this until entire system
is drained.
NOTE: It may be necessary to lift or bend hoses to allow water to drain completely.
4. Models equipped with circulating pump hose drain plug: Remove drain plug.
5. Models without circulating pump hose drain plug: Loosen hose clamps and discon-
nect hose from thermostat housing or circulating pump. Allow water to drain.
74774
a
b
a-Thermostat Housing To Circulating Pump Hose
b-Drain Plug Location, If Equipped
