Mercusys AC1200 User Manual

AC12G
AC1200 Wireless Dual Band Gigabit Router
• IP Address Range - Enter the IP address or address range of the host in
dotted-decimal format (e.g. 192.168.0.23).
If the MAC Address is selected, you can see the following item:
• MAC Address - Enter the MAC address of the host in XX-XX-XX-XX-XX-XX format (e.g.
00-11-22-33-44-AA).

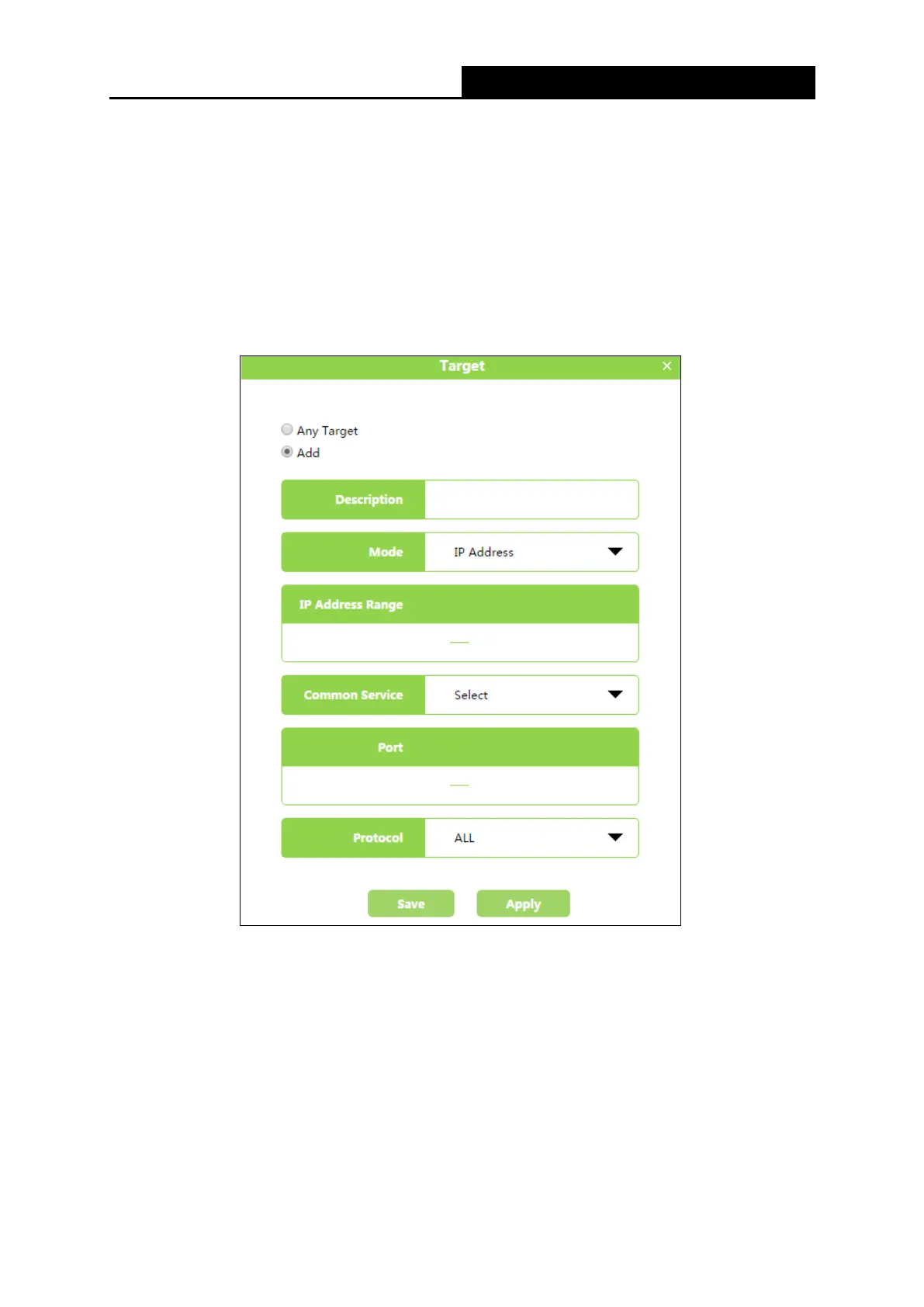

5. Click Configure in the Target column, you can select Any Target, or select Add to add a
new target. Then click Apply.
• Description - In this field, create a description for the target. Note that this description
should be unique.
• Mode - Here are two options, IP Address and Website Domain. You can choose either
of them from the drop-down list.
If the IP Address is selected, you will see the following items:
• IP Address Range - Enter the IP address (or address range) of the target (targets) in
dotted-decimal format.
- 39 -

Mercusys AC1200 Specifications

General

Power Supply	9V/0.85A
Wireless Standards	IEEE 802.11ac/n/a 5 GHz, IEEE 802.11n/b/g 2.4 GHz
Frequency	2.4 GHz and 5 GHz
Signal Rate	300 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Ports	1 x 10/100 Mbps WAN port, 4 x 10/100 Mbps LAN ports
Antenna	4 x fixed antennas
Button	Reset
Wireless Security	WPA/WPA2, WPA-PSK/WPA2-PSK
Dimensions	222 x 140 x 32 mm
