Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide

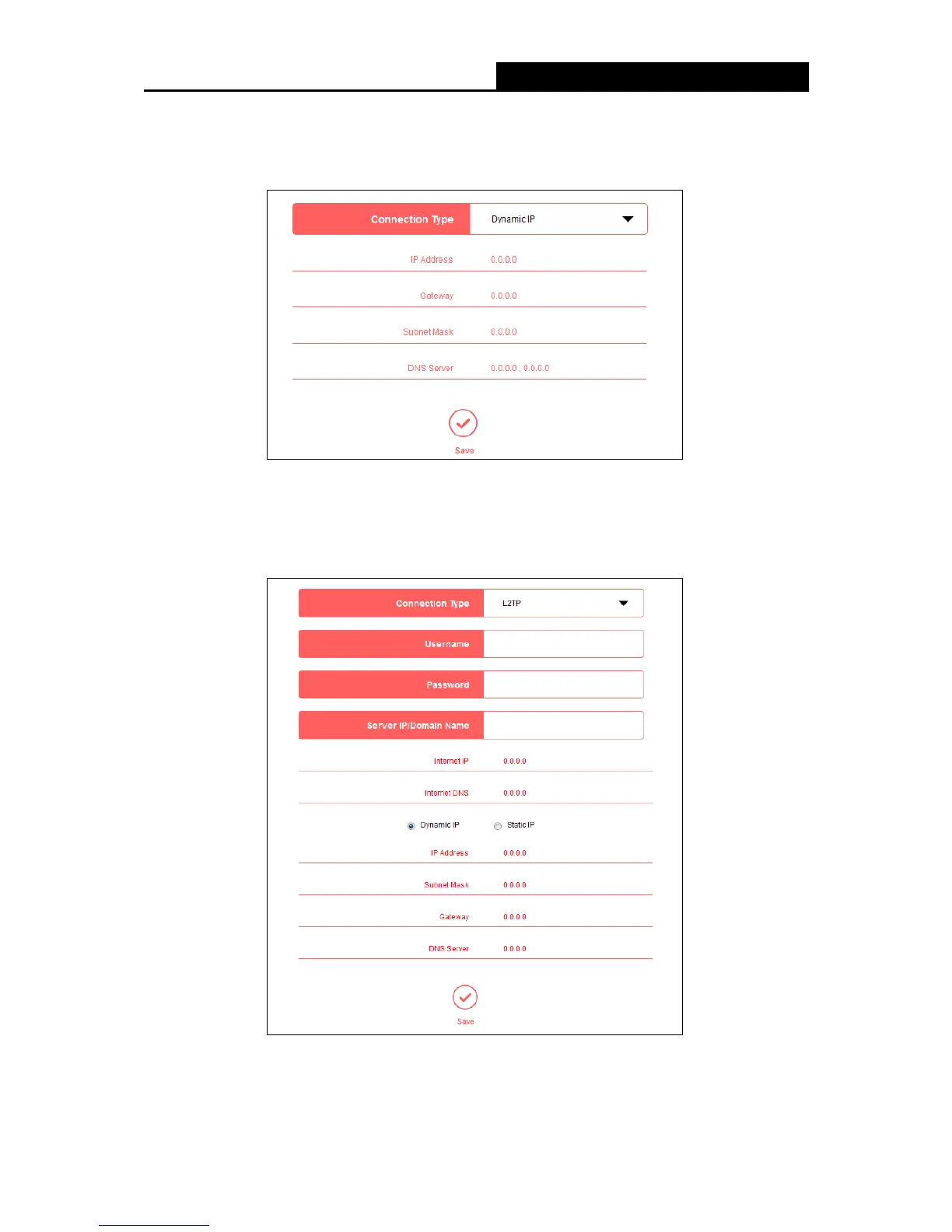

3. Dynamic IP
Select this type if your ISP provides the DHCP service, and the router will automatically get IP
parameters from your ISP.
4. L2TP
Select this type if you connect to an L2TP VPN Server and are provided with a username,
password, and IP address/domain name of the server by the ISP.
5. PPTP
Select this type if you connect to a PPTP VPN Server and are provided with a username,
- 11 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
