Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide

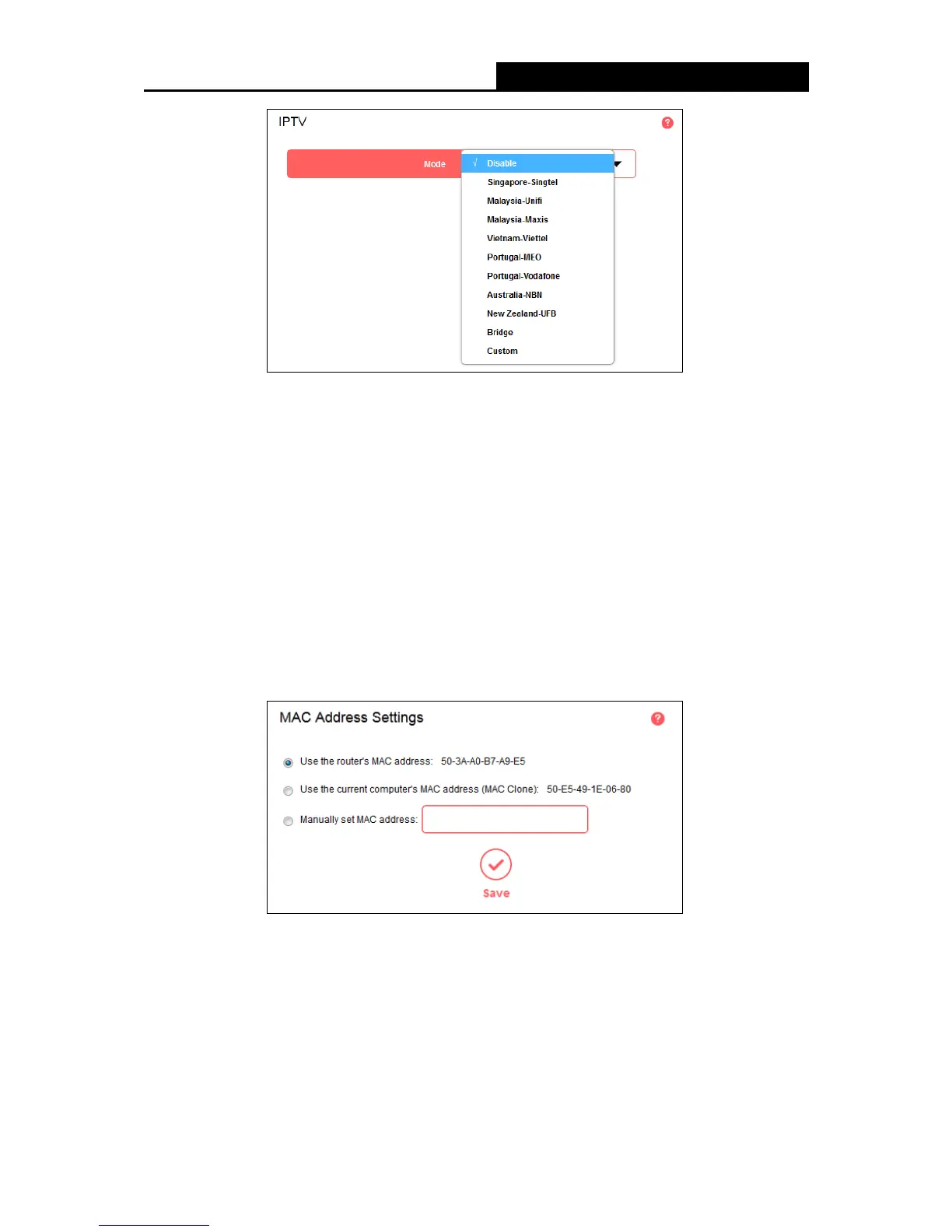

To configure IPTV, follow the steps below.
1. Select the appropriate mode according to your ISP.
• Select Bridge if your ISP is not listed and no other parameters are required.
• Select Custom if your ISP is not listed but provides necessary parameters.
2. After you have selected a mode, the necessary parameters, including the LAN port for IPTV
connection, are predetermined.
3. Click Save.
4. Connect the set-top box to the corresponding LAN port which is predetermined or you have
specified.
5.1.4 MAC Address Settings
Go to Network
→
MAC Address Settings, you can configure the MAC address of the WAN on
the page.
Some ISPs require that you register the MAC address of your adapter. Changes are rarely
needed here.
 Use the router's MAC address - By default, this option is selected.
 Use the current computer's MAC address (MAC Clone) - Some ISPs will register the MAC
address of your computer when you access the Internet for the first time through their Cable
modem. If you add a router into your network to share your Internet connection, the ISP will
- 23 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
