Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide
Settings, Advanced Routing and Dynamic DNS. Click any of them to configure the
corresponding function.

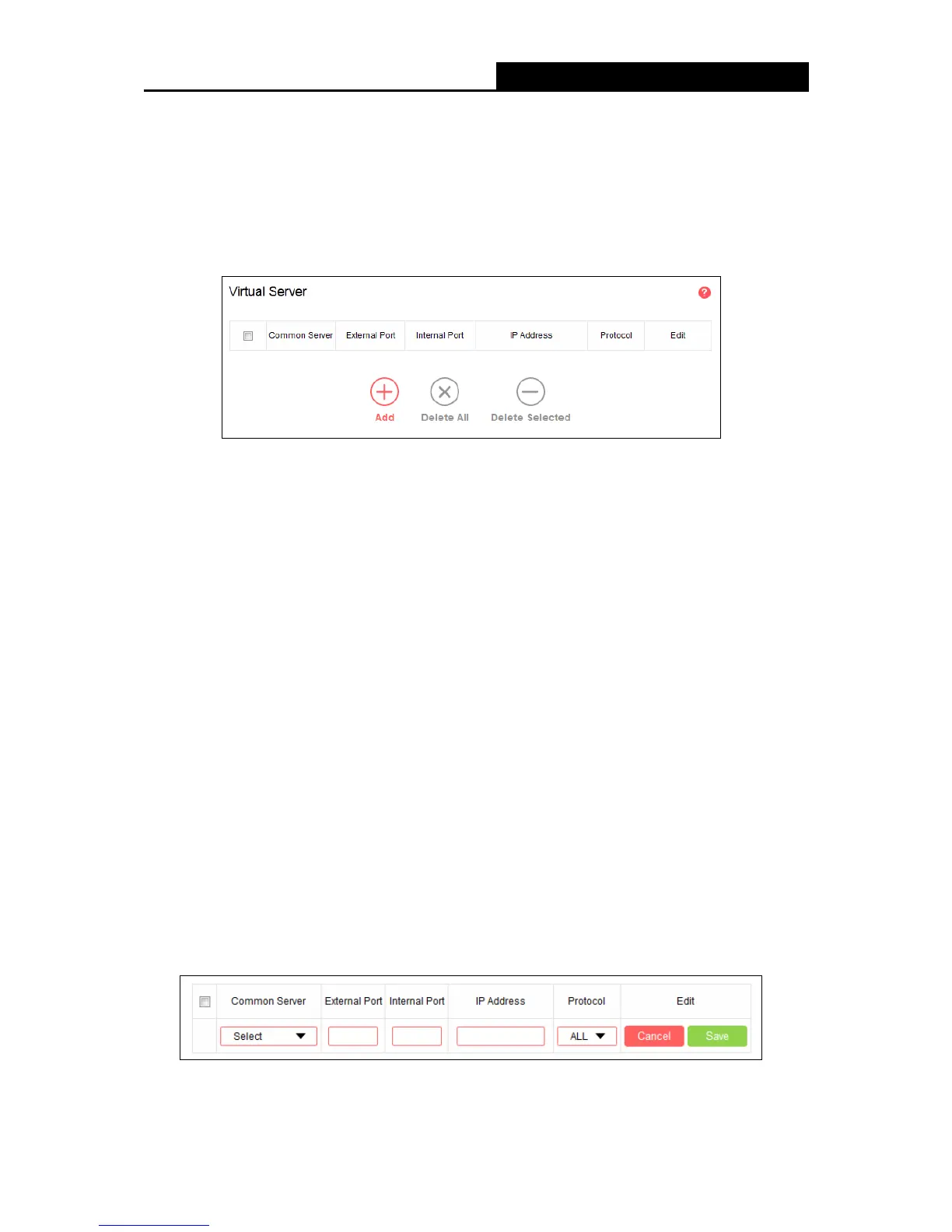

5.4.1 Virtual Server
Go to Advanced Users
→
Virtual Server, and then you can view and add virtual server on the
page. Virtual server can be used for setting up public services on your LAN.
 Common Server - Some common services already exist in the drop-down list.
 External Port - The numbers of External Service Ports. You can enter a service port or a
range of service ports (the format is XXX - YYY; XXX is the Start port and YYY is the End
port).
 Internal Port - The Internal Service Port number of the PC running the service application.
You can leave it blank if the Internal Port is the same as the External Port, or enter a
specific port number when External Port is a single one.
 IP Address - The IP address of the PC running the service application.
 Protocol - The protocol used for this application, either All (all protocols supported by the
router), TCP or UDP.
 Edit - Here you can edit an existing entry.
 Add - Click to add a new rule entry.
 Delete All - Click to delete all the entries in the table.
 Delete Selected - Click to delete selected entries in the table.
To set up a virtual server entry:
1. Click Add.
2. Select a service from drop-down list to automatically populate the appropriate port number in
the External Port field. If the service that you want to use is not listed, enter the number of
- 36 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
