Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide

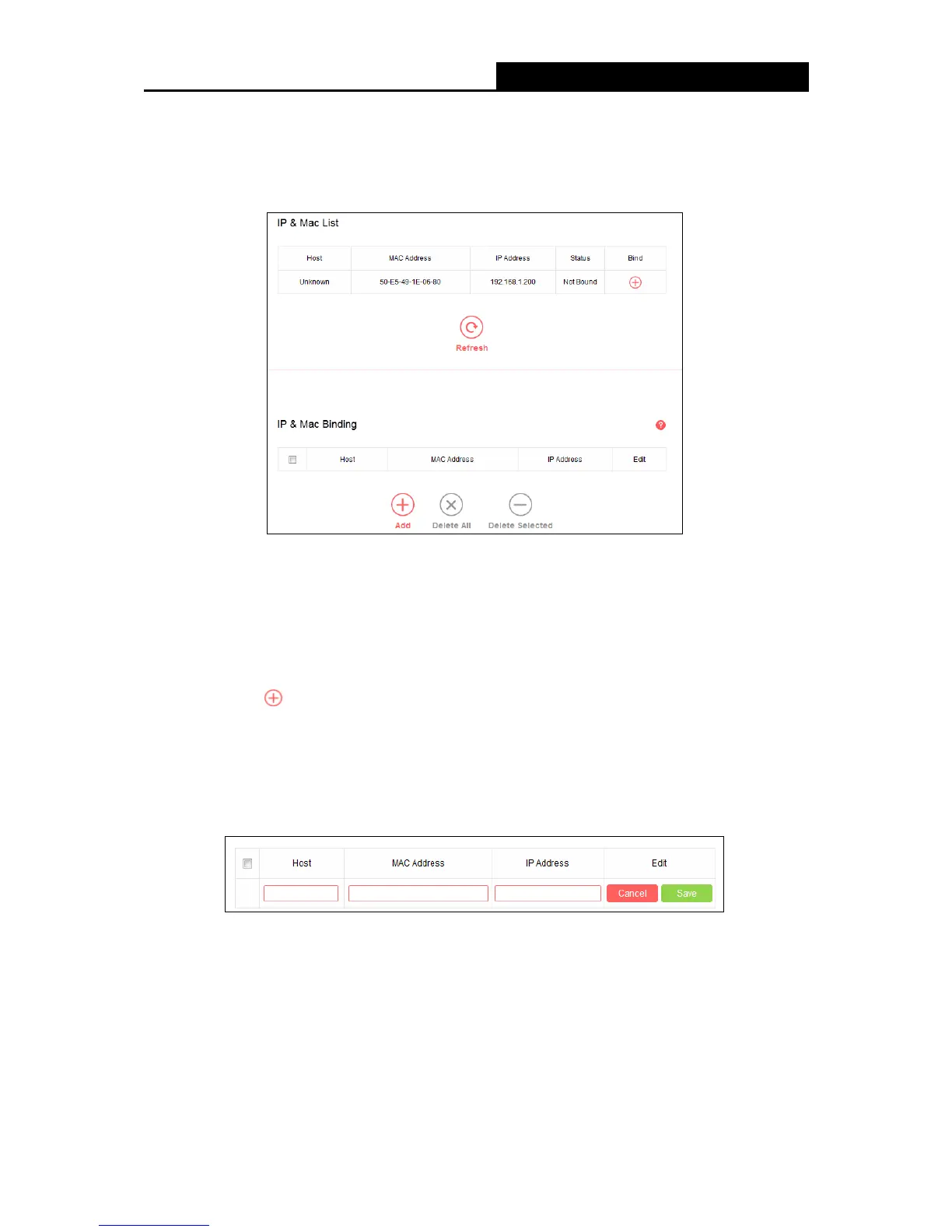

5.1.6 IP & MAC Binding
Go to Network
→
IP & MAC Binding, you can control access of a specific computer in the LAN by
binding the IP address and the MAC address of the device together.
 Host - The name of the controlled computer in the LAN.
 MAC Address - The MAC address of the controlled computer in the LAN.
 IP Address - The assigned IP address of the controlled computer in the LAN.
 Status - Displays whether the MAC and IP address are bound or not.
 Bind - Click
to add an entry to the IP & Mac binding list.
Click Refresh to refresh all items.
To add an IP & MAC Binding entry, follow the steps below.
1. Click Add.
2. Enter the Host name.
3. Enter the MAC Address of the device.
4. Enter the IP Address that you want to bind to the MAC address.
5. Click Save.
To edit an existing entry, follow the steps below.
1. Find the entry in the table.
- 26 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
