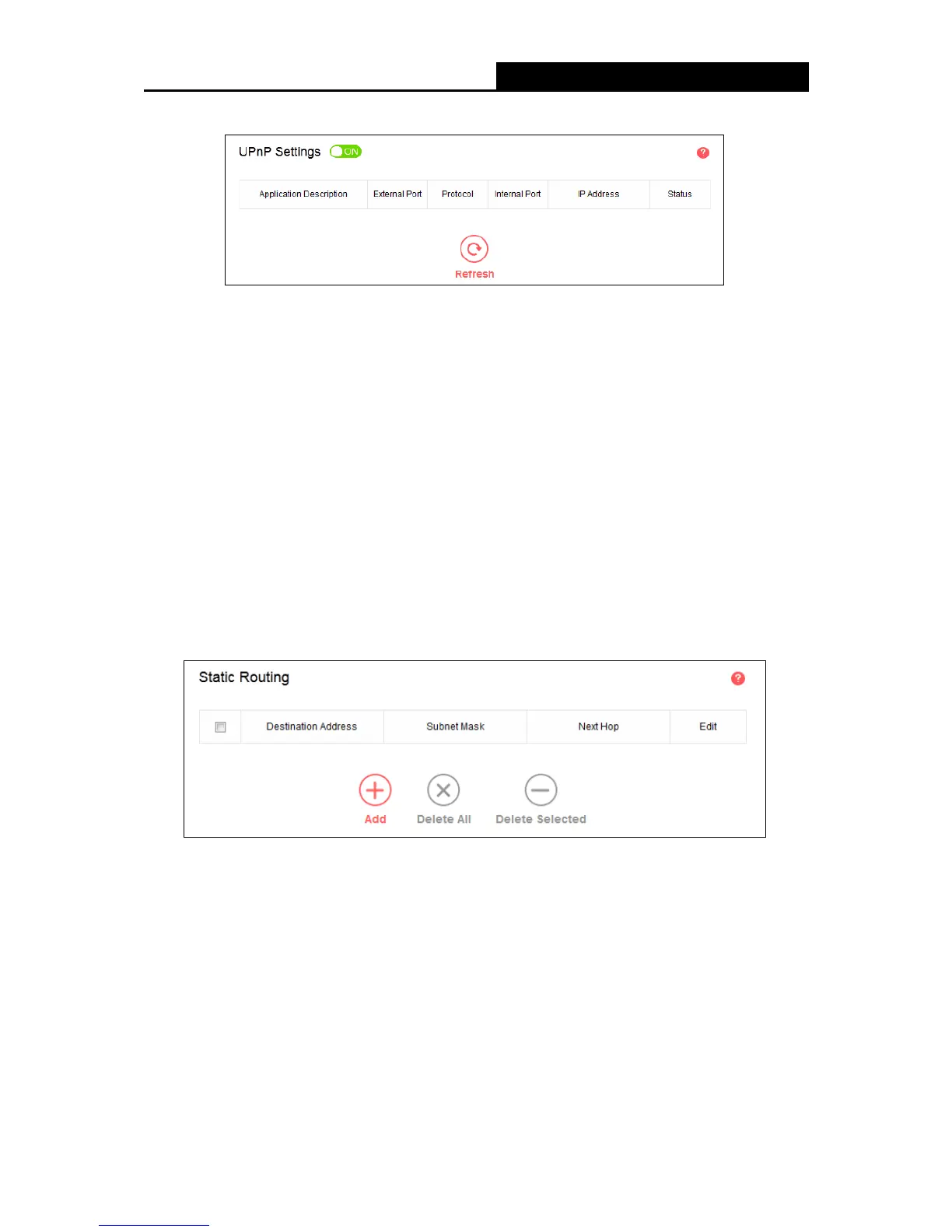

discovered by the UPnP service application on the LAN.
 Application Description - The description about the application which initiates the UPnP
request.
 External Port - The port which the router opened for the application.
 Protocol - The type of protocol which is opened.
 Internal Port - The port which the router opened for local host.
 IP Address - The IP address of the local host which initiates the UPnP request.
 Status – Displays the port is active or not.
 Refresh - Click to update the current UPnP settings List.
5.4.4 Advanced Routing
Go to Advanced Users
→
Advanced Routing, and then you can configure the static routing and
view system routing list. Advanced routing is used to predetermine a fixed route for the network
information packets to reach a specific host or network.
 Static Routing
 Destination Address - The address of the network or host that you want to assign to a static
route.
 Subnet Mask - The Subnet Mask determines which portion of an IP Address is the network
portion, and which portion is the host portion.
 Next Hop - The IP Address of the gateway device that allows for contact between the router
and the network or host.
 Edit - Here you can edit an existing entry.
 Add - Click to add a new rule entry.
- 38 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
