Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide

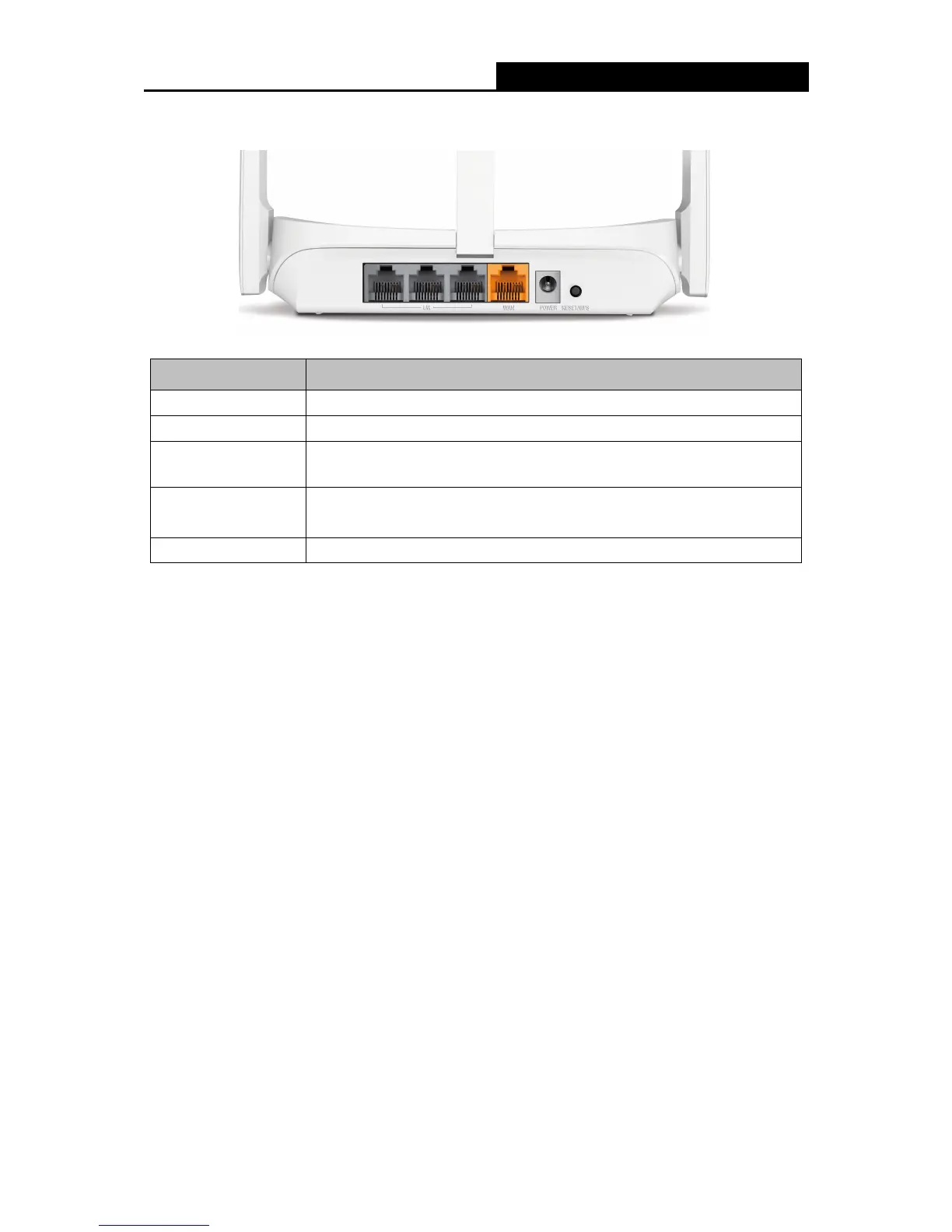

1.2.2 The Rear Panel
The following items are located on the rear panel (View from left to right).
Items Description
LAN Port
These ports connect the router to the local PC(s).
WAN Port
This port is where you will connect the DSL/cable Modem, or Ethernet.
POWER Socket
The p
ower socket is where you will connect the power adapter. Please
use the power adapter provided with this router.
RESET/WPS Button
Press and hold this button for more than 5 seconds to reset the router.
Press for 1 second to use the WPS function.
Wireless Antennas To receive and transmit the wireless data.
- 3 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
