Mercusys MW305R User Manual

MW305R
300Mbps Wireless N Router User Guide

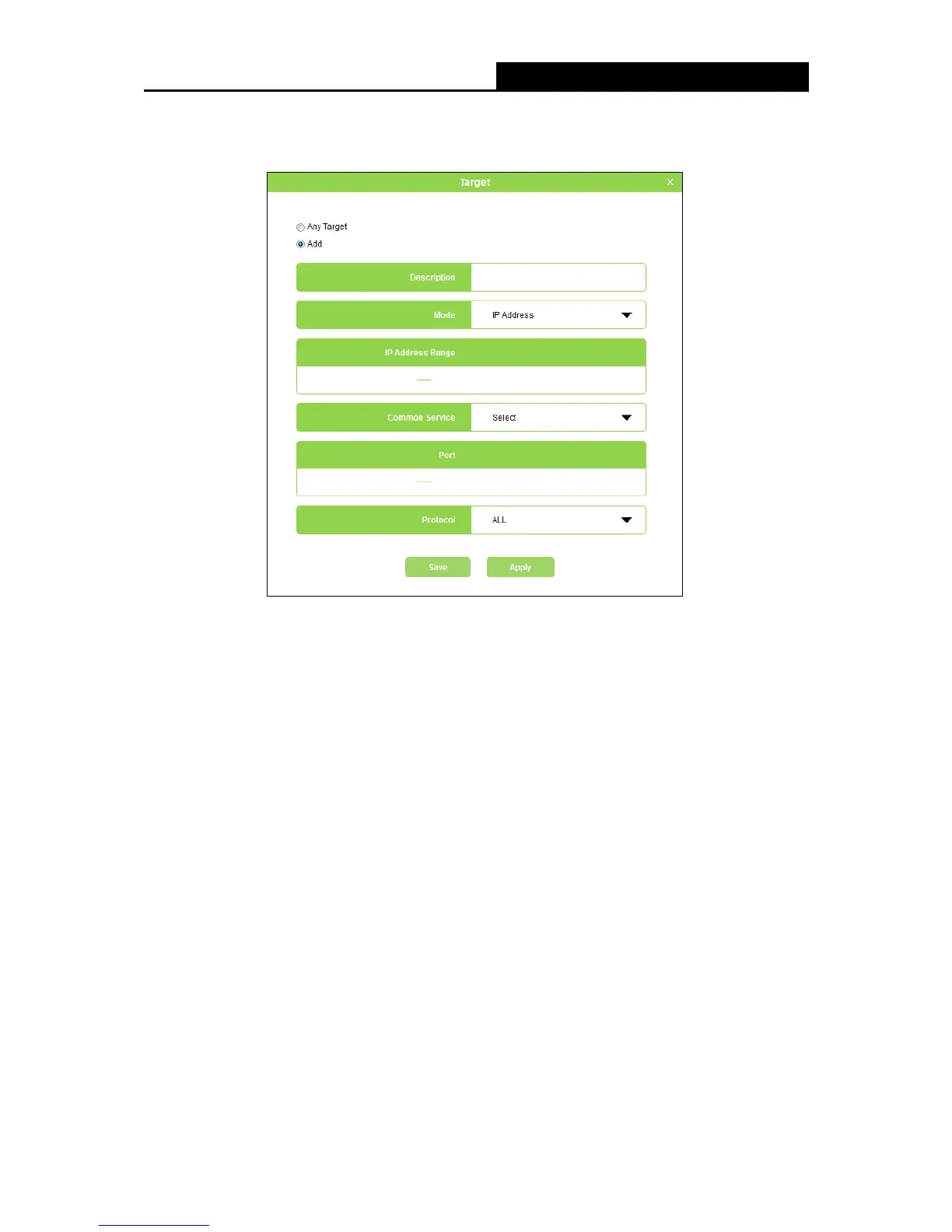

5. Click Configure in the Target column, you can select Any Target, or select Add to add a
new target. Then click Apply.
 Description - In this field, create a description for the target. Note that this description
should be unique.
 Mode - Here are two options, IP Address and Website Domain. You can choose either of
them from the drop-down list.
If the IP Address is selected, you will see the following items:
 IP Address Range - Enter the IP address (or address range) of the target (targets) in
dotted-decimal format.
 Common Service - Here lists some common service ports. Select one from the
drop-down list, and the corresponding port number will be filled in the Port field
automatically. For example, if you select HTTP, 80 will be filled in the Port automatically.
 Port - Specify the port or port range for the target. For some common service ports, you
can make use of the Common Service item above.
 Protocol - Here are three options, All, TCP and UDP. Select one of them from the
drop-down list for the target.
If the Website Domain is selected, you will see the following items:
- 34 -

Mercusys MW305R Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Product type	Tabletop router
Product color	White
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	3
Output current	0.6 A
Output voltage	5 V
Power source type	AC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Transmit power	0 dBmW
Antenna gain level (max)	5 dBi
Certification	CE RoHS
Cables included	LAN (RJ-45)
Supported network protocols	IPv4
Security algorithms	WPA-PSK, WPA2-PSK
Package type	Box
Package depth	198 mm
Package width	267 mm
Package height	68 mm
Package weight	450 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	115.44 mm
Width	168.94 mm
Height	34.66 mm
