Appendix A – Structure objects
Structure elements used in Memory Organizer are instrument’s Profile dependent.
1.
2.
3.
4.

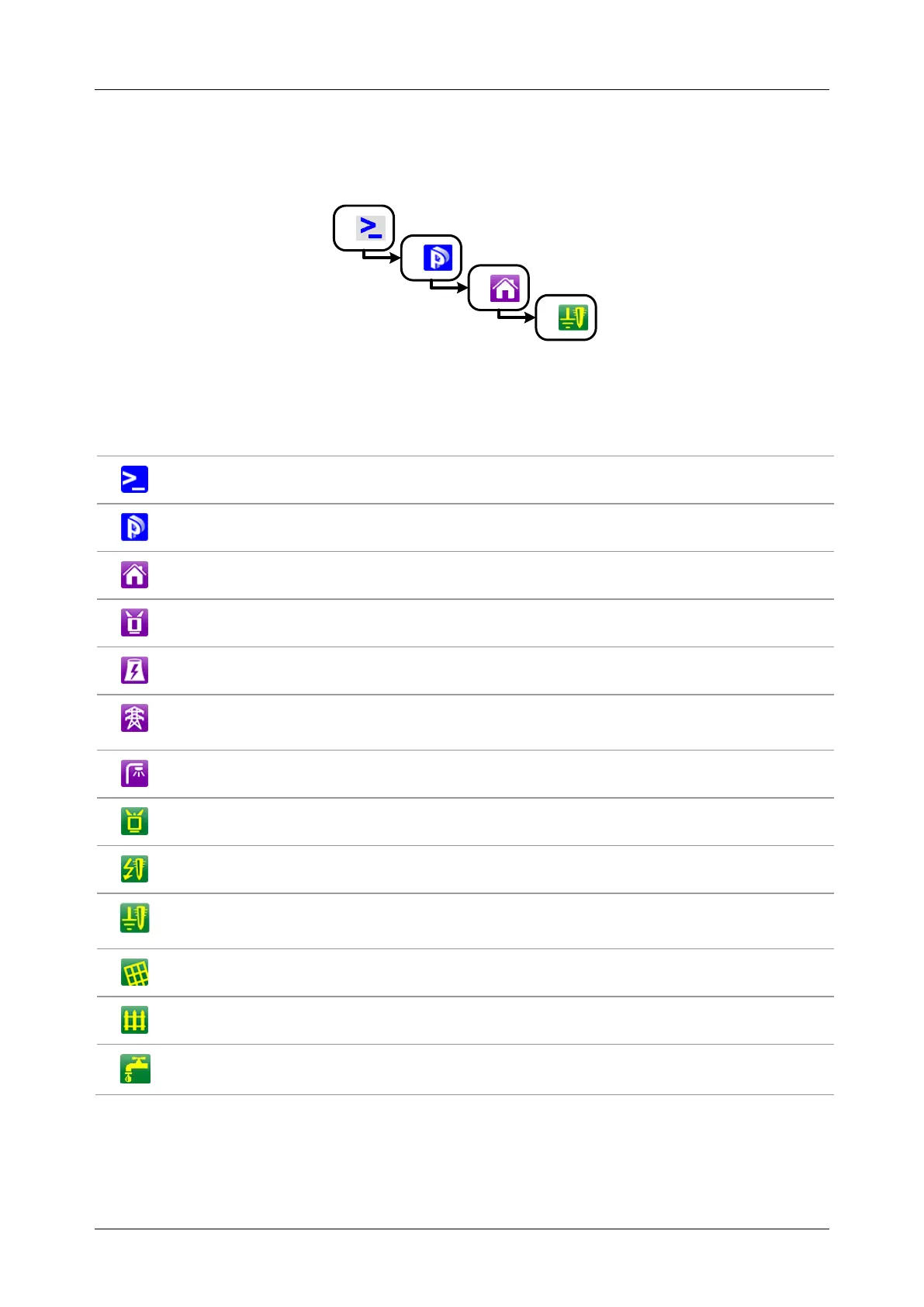

Figure A.1: Memory organizer hierarchy
Symbol
Default name
Parameters:
Node
/
Project
name of project, description of project;
Building
name, description, location, type, nominal power, nominal voltage, GPS;
Sub-Station
name, description, location, type, nominal power, nominal voltage, GPS;
Power Station
name, description, location, type, nominal power, GPS;
Transmission
Tower
name, description, location, type, material type, nominal power,
nominal voltage, GPS;
Public Lighting
name, description, location, material type, nominal voltage, GPS;
Transformer
name, description, location, nominal power, nominal voltage, GPS;
Lightning Rod
name, description, location, GPS;
Grounding
Rod
name, description, location, GPS;
Mesh
name, description, location, GPS;
Fence
name, description, location, GPS;
Pipe
name, description, location, GPS;
