MI 3290 Earth Analyser Single Tests
59

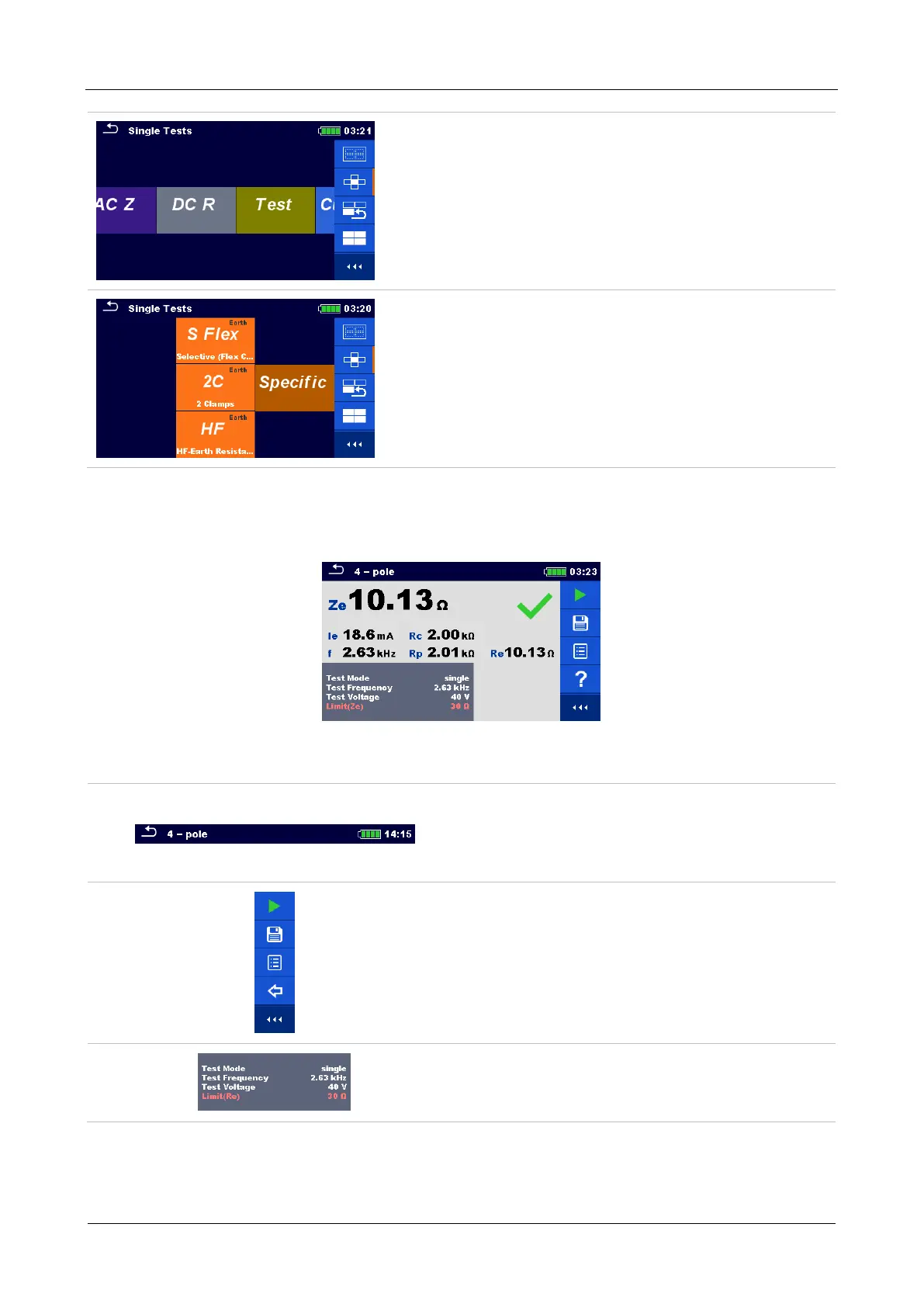

This selection mode is the fastest for working
with the keypad.
Groups of single tests are organized in a row.
For the selected group all single tests are displayed and
easy accessible with up /down keys.
10.1.1 Single test screens
In the Single test screens measuring results, sub-results, limits and parameters of the
measurement are displayed. In addition on-line statuses, warnings and other info are displayed.
Figure 10.1: Single test screen organization Example of 4 -pole measurement
Single test screen organization:
Main line:
 ESC touch key
 function name
 battery status
 clock
Control panel (available options)
Parameters (white) and limits (red)
