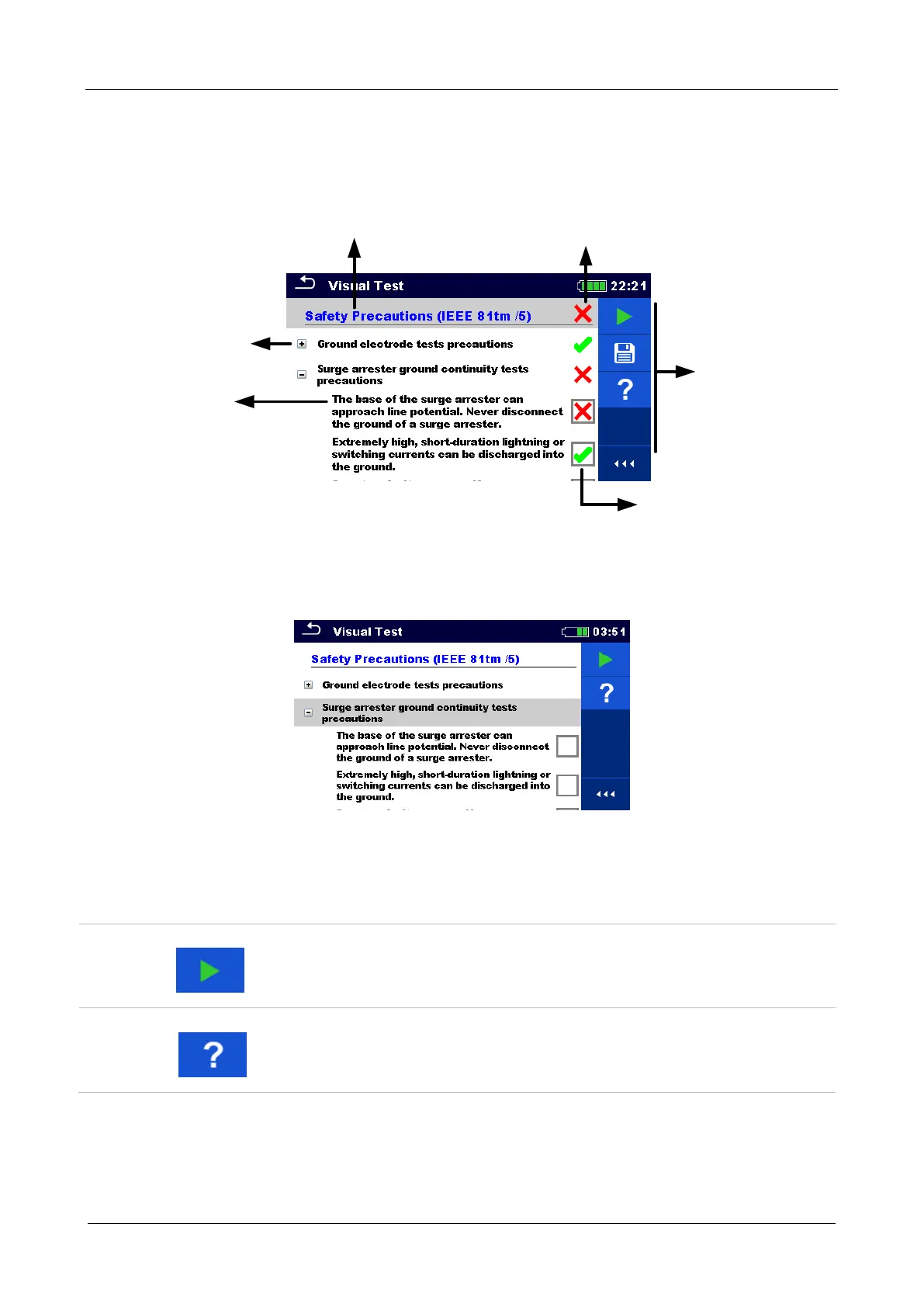

10.1.6 Single test (Visual Test) screens
Visual Test can be treated as a special class of tests. Items to be visually checked are displayed.
In addition on-line statuses and other information are displayed.
Item
Child item
Status fields
Options
Selected Visual Test
Overall status
Figure 10.5: Visual Test screen organisation
10.1.7 Single test (Visual Test) start screen
Figure 10.6: Visual Test screen organisation
Options (before Visual Tast, screen was opened in Memory organizer or from Single test main
menu)
Starts the Visual Test
Opens help screens.
