3.2 Rear
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
8
￭￭￭￭￭￭￭￭
899 Coulometer
3.2 Rear
1 2
3
4
5 6
7
8 9

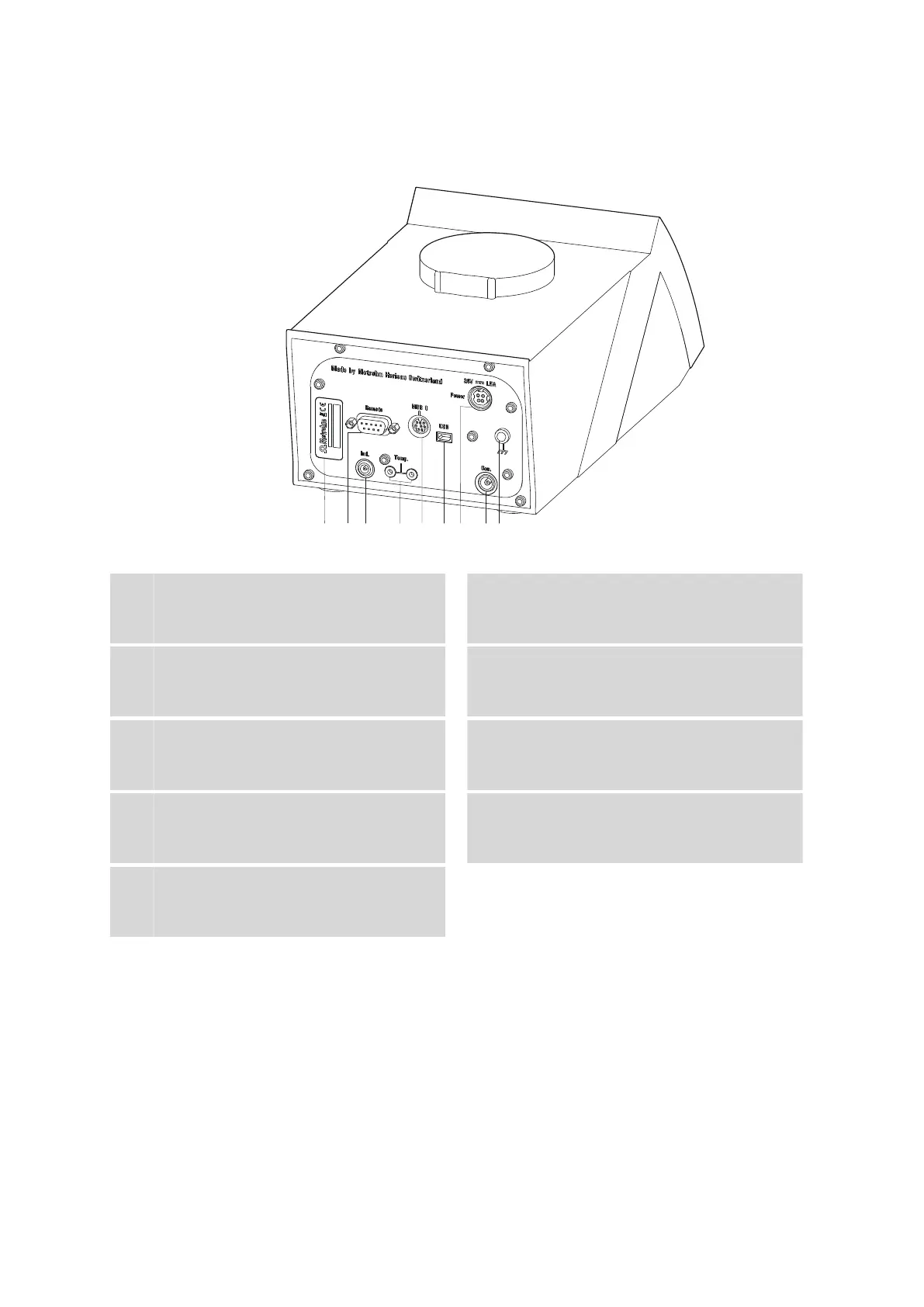

Figure 2 Rear 899 Coulometer
1
Type plate
Contains the serial number.
2
Remote connector
For connecting instruments with a remote
interface. D-Sub, 9-pin.
3
Electrode connector (Ind.)
For connecting a metal electrode (double Pt
wire electrode). Socket F.
4
Temperature sensor connector (Temp.)
For connecting a temperature sensor of the
type Pt1000. Two B sockets, 2 mm.
5
MSB connector (MSB 1)
Metrohm Serial Bus. For connecting an
external stirrer. Mini DIN, 8-pin.
6
USB (OTG) connector
For connecting printers, USB flash drives,
USB hubs, etc.
7
Mains connection socket (Power)
For connecting the external power supply
unit or a Power Box (6.2164.500).
8
Electrode connector (Gen.)
For connecting a generator electrode.
9
Grounding socket
For grounding the Coulometer. Socket B,
4 mm.
