NOTE
The electrode cable is protected against accidental disconnection
of the cable by means of a pull-out protection. If you wish to pull
out the plug again, you first need to pull back the outer plug
sleeve.
4.4.3 Connecting a temperature sensor
A temperature sensor of the Pt1000 type can be connected to the Temp.
connector.
Connect the temperature sensor as follows:
1
Insert the plugs of the temperature sensor into the Temp. sockets of
the coulometer.

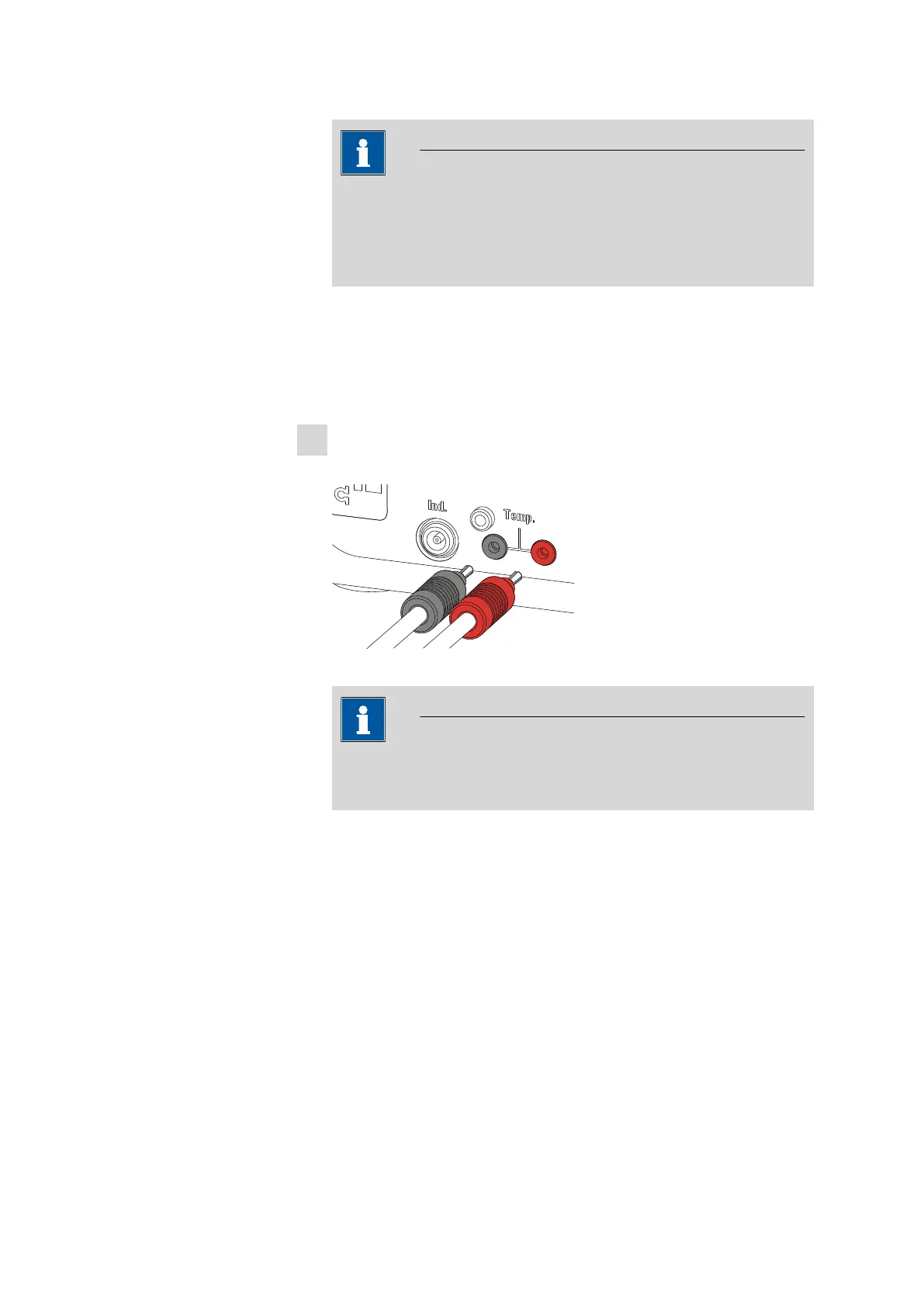

Figure 15 Connecting a temperature sensor
NOTE
Always insert the red plug into the red socket. This is the only way
that shielding against electrical interference can be ensured.
