2 Installation
￭￭￭￭￭￭￭￭
23
6.1801.120
6.1805.200
6.1446.040
6.1808.050
6.1446.090
6.1819.050
6.1602.105
6.1623.000
6.1608.030
2
3
1
4
5
6
7
8

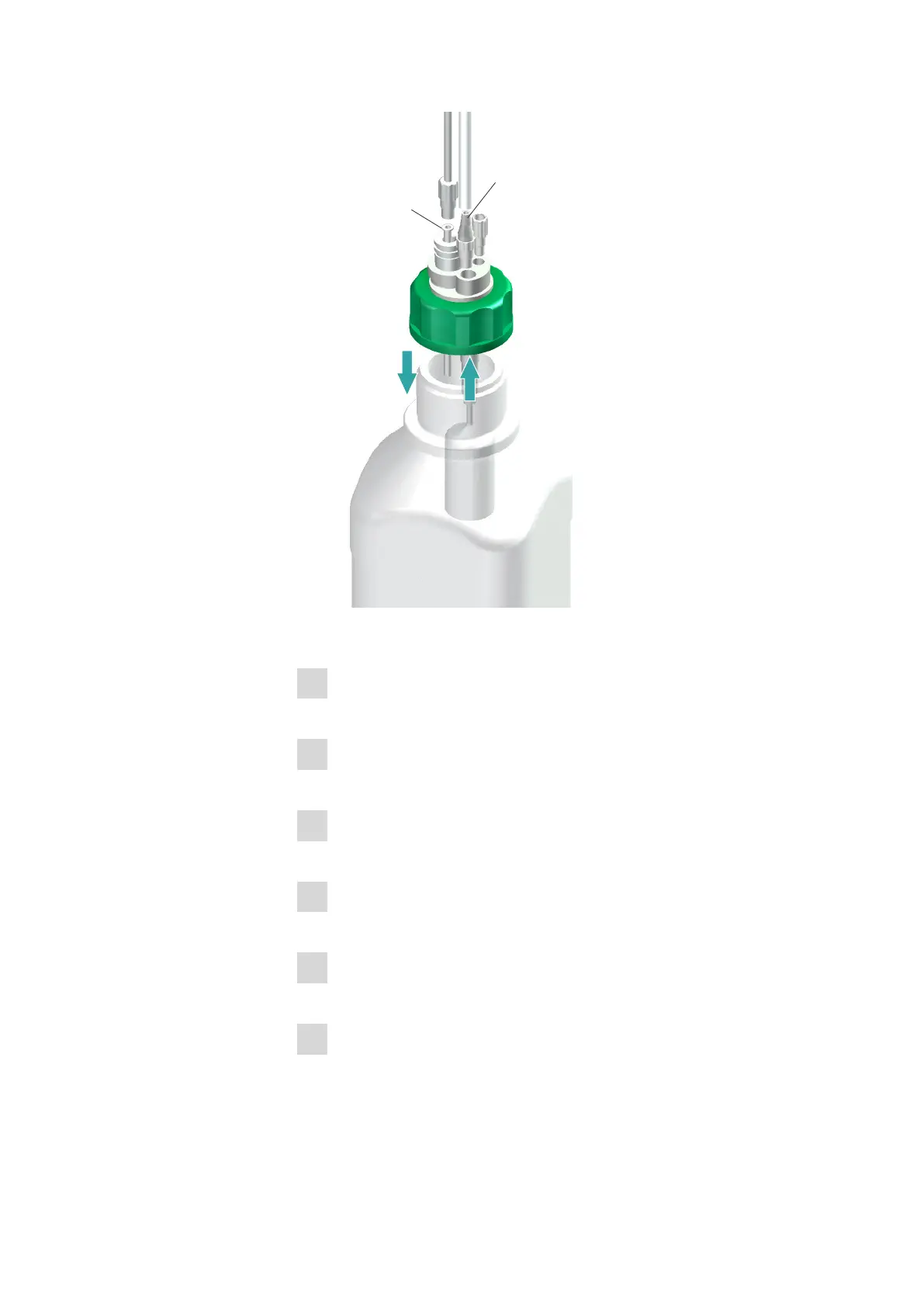

To equip the aspiration bottle, proceed step-by-step as follows:
1
Place a 6.1446.040 threaded stopper in the M6 connector (smallest
opening) of a 6.1602.105 bottle cap and screw it tightly.
2
Introduce the 6.1623.000 overflow protection into the M8 connec-
tor from below (second-smallest opening) of the bottle cap.
3
Place the bottle cap on the 6.1608.030 clear glass bottle (or on a dif-
ferent bottle with GL 45 thread) and screw it tightly.
4
Place the 6.1808.050 tubing olive in the M8 connector of the bottle
cap and screw it tightly.
5
Plug the remaining piece of the 6.1801.120 PVC tubing onto the
tubing olive.
6
Insert the 6.1446.090 stopper into the remaining opening on the
bottle cap.
To Next Page
